DORMER H85122.0 Hydra Body

Product Code: H85122.0

$608.42$553.11 Ex. GST

Product Code: H85122.0 SKU H85122.0 Categories , ,

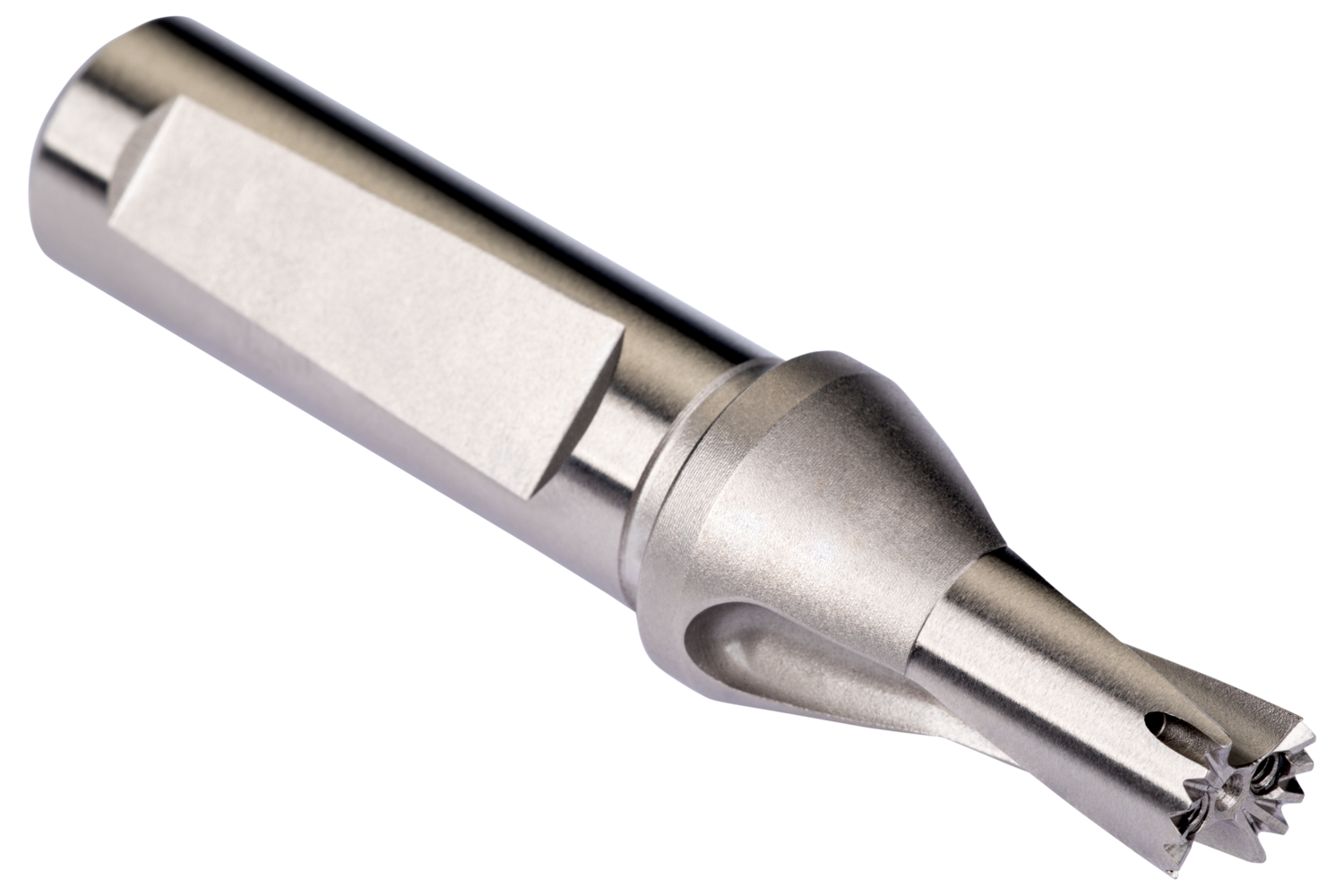

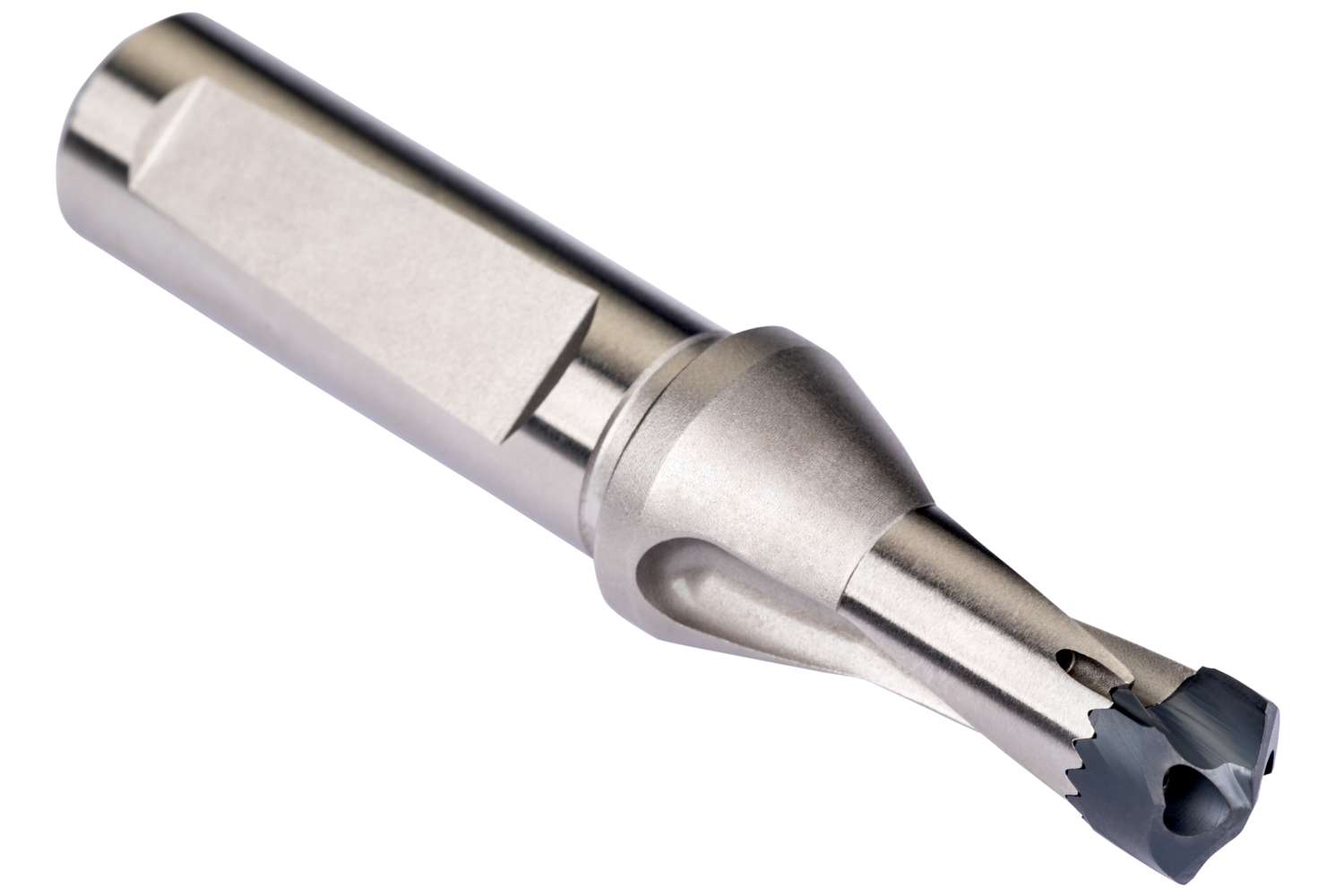

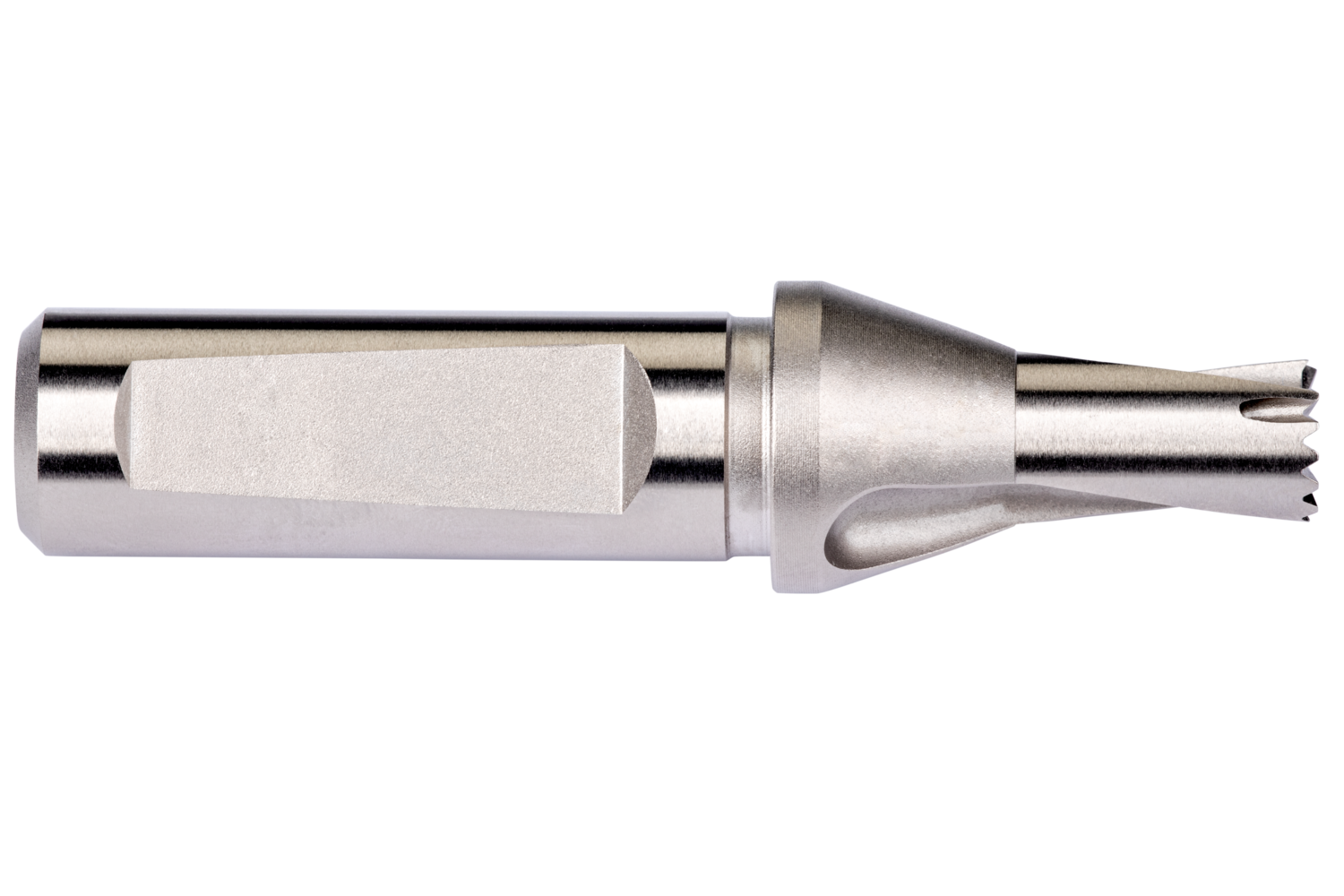

DORMER H85122.0 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

DOR Replaceable head drill body HYDRA with ISO 9766 shank with flange and flat, size 22.0mm with an overall length of 117.1mm and flute length of 46.1mm according to DORMER standard for 1.5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 21.83 up to 22.7mm

Additional information

Weight 0.5907 kg
Dimensions Length 11.71cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760894736
Product number (SAP): 86036561
Ordering code ANSI: H85122.0
Product Line: HYDRA
Gross weight – grams: 473

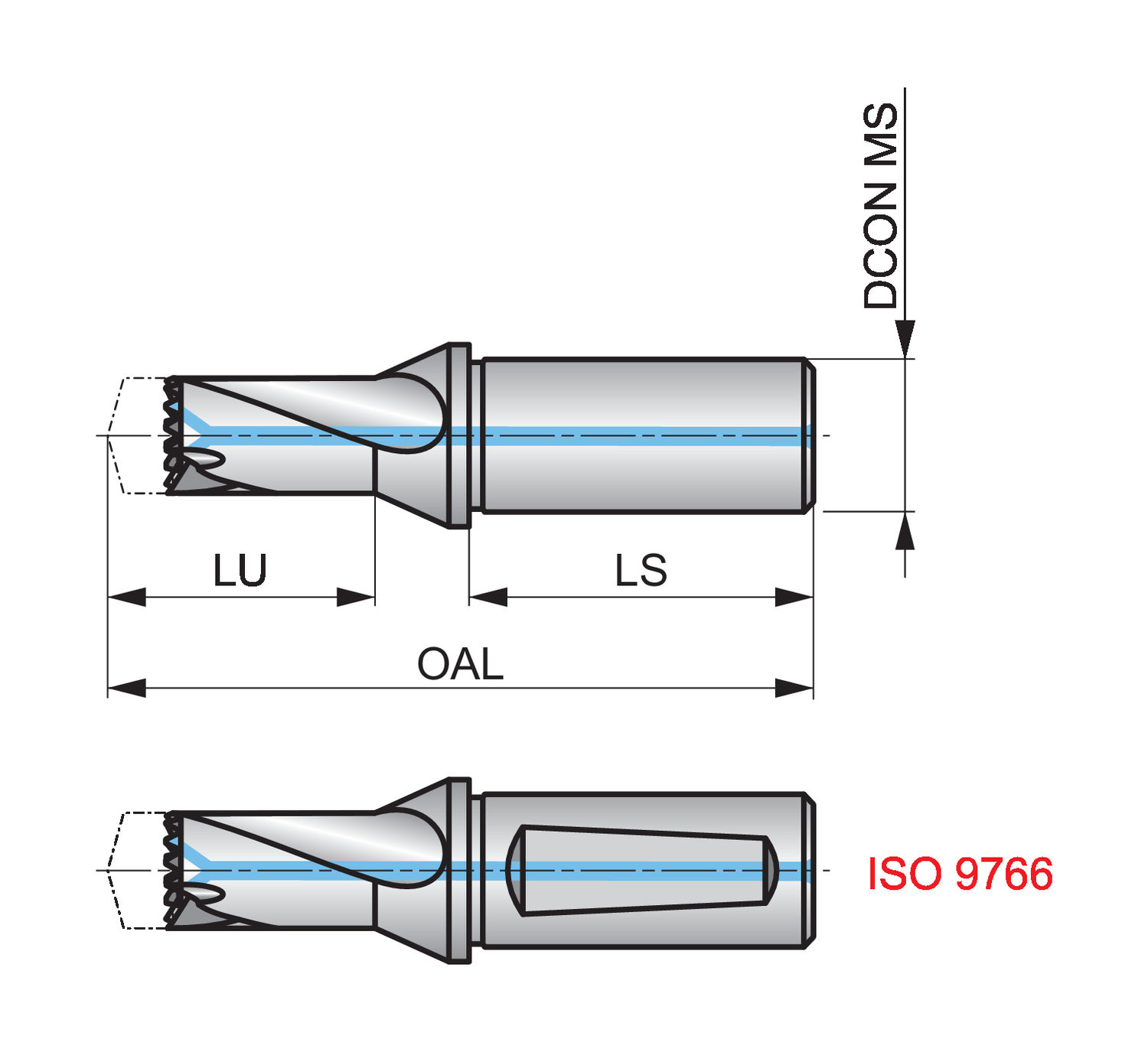

Connection diameter – millimeter (DCON MS): 25 mm
Usable Length – millimeter (LU): 46.1 mm
Overall length – millimeter (OAL): 117.1 mm
Shank length – millimeter (LS): 56 mm
Connection norm (ADINTMS): ISO 9766
ISO: H85122.0

Brand

DORMER
