DORMER H85124.0 Hydra Body

Product Code: H85124.0

$668.47$607.70 Ex. GST

Product Code: H85124.0 SKU H85124.0 Categories , ,

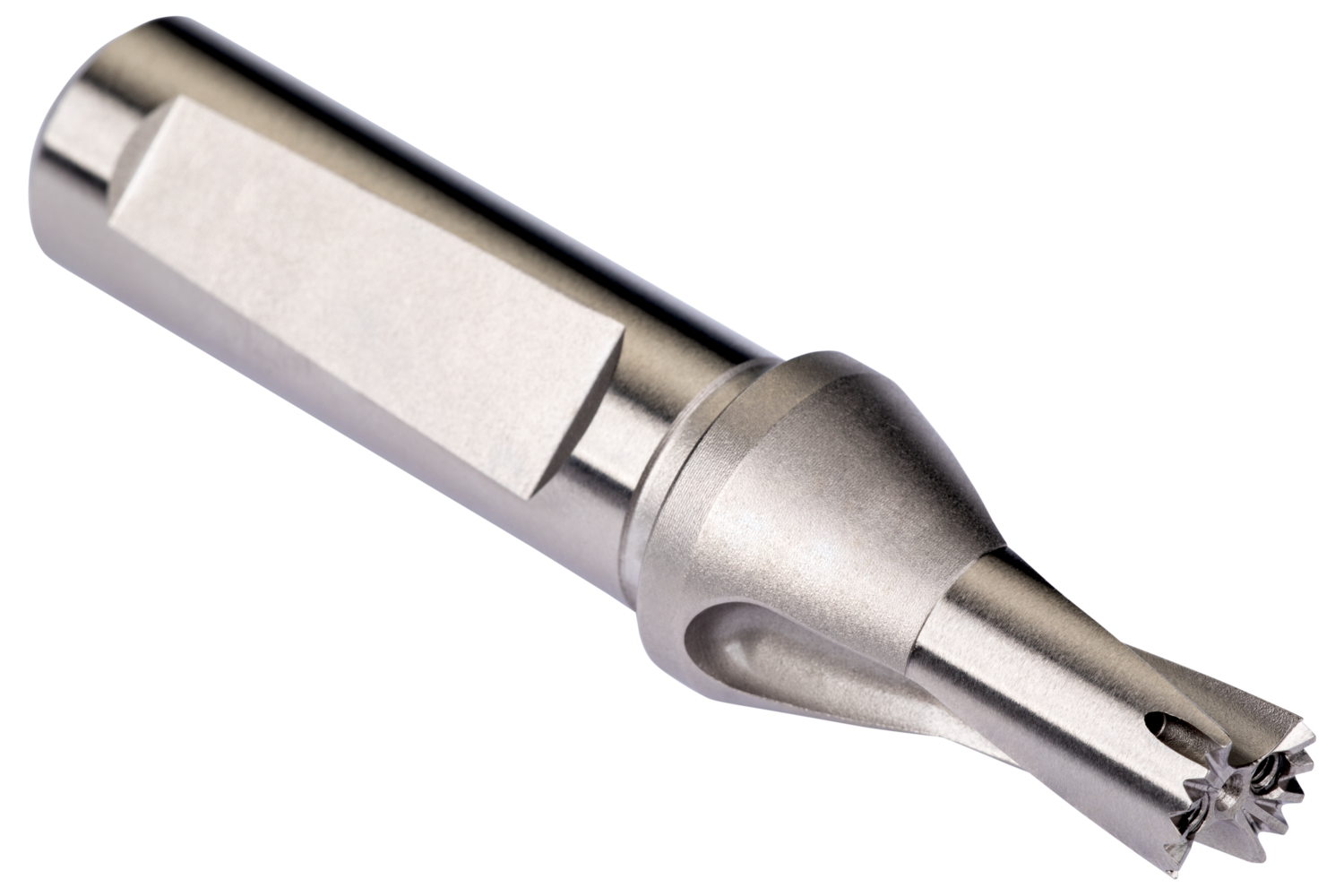

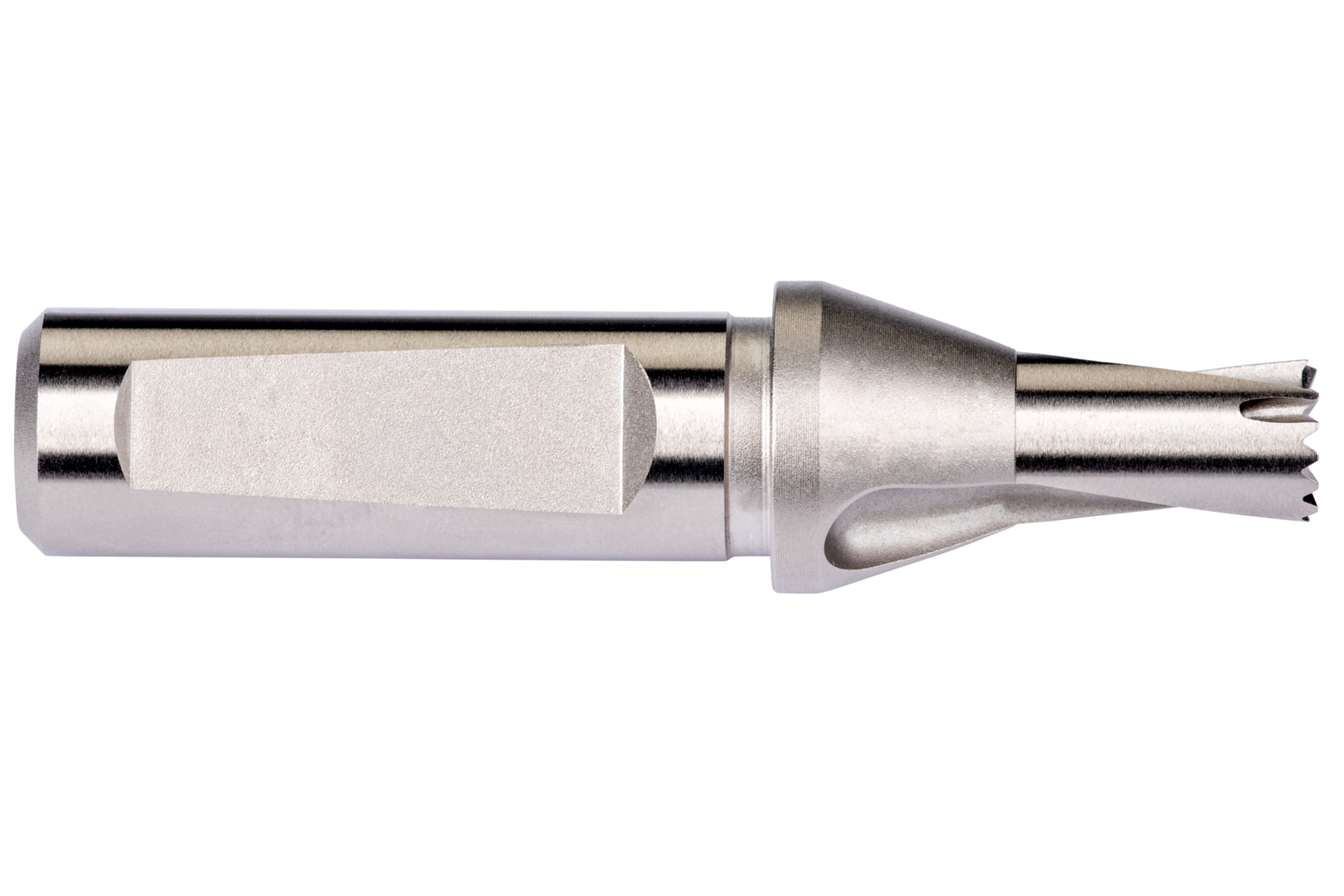

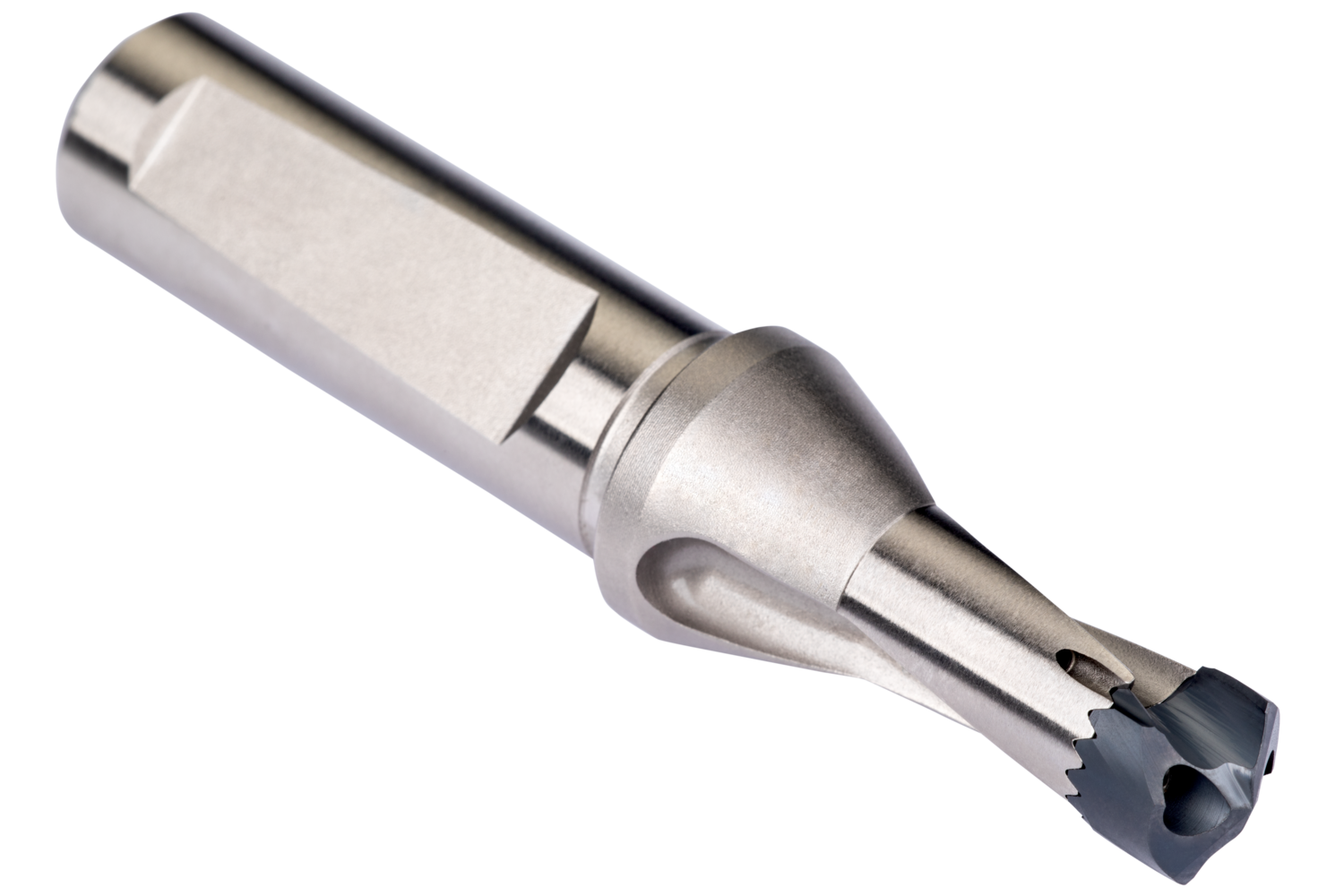

DORMER H85124.0 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

DOR Replaceable head drill body HYDRA with ISO 9766 shank with flange and flat, size 24.0mm with an overall length of 124.3mm and flute length of 49.3mm according to DORMER standard for 1.5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 23.81 up to 24.61mm

Additional information

Weight 0.6490 kg
Dimensions Length 12.43cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760894873
Product number (SAP): 86036575
Ordering code ANSI: H85124.0
Product Line: HYDRA
Gross weight – grams: 677.5

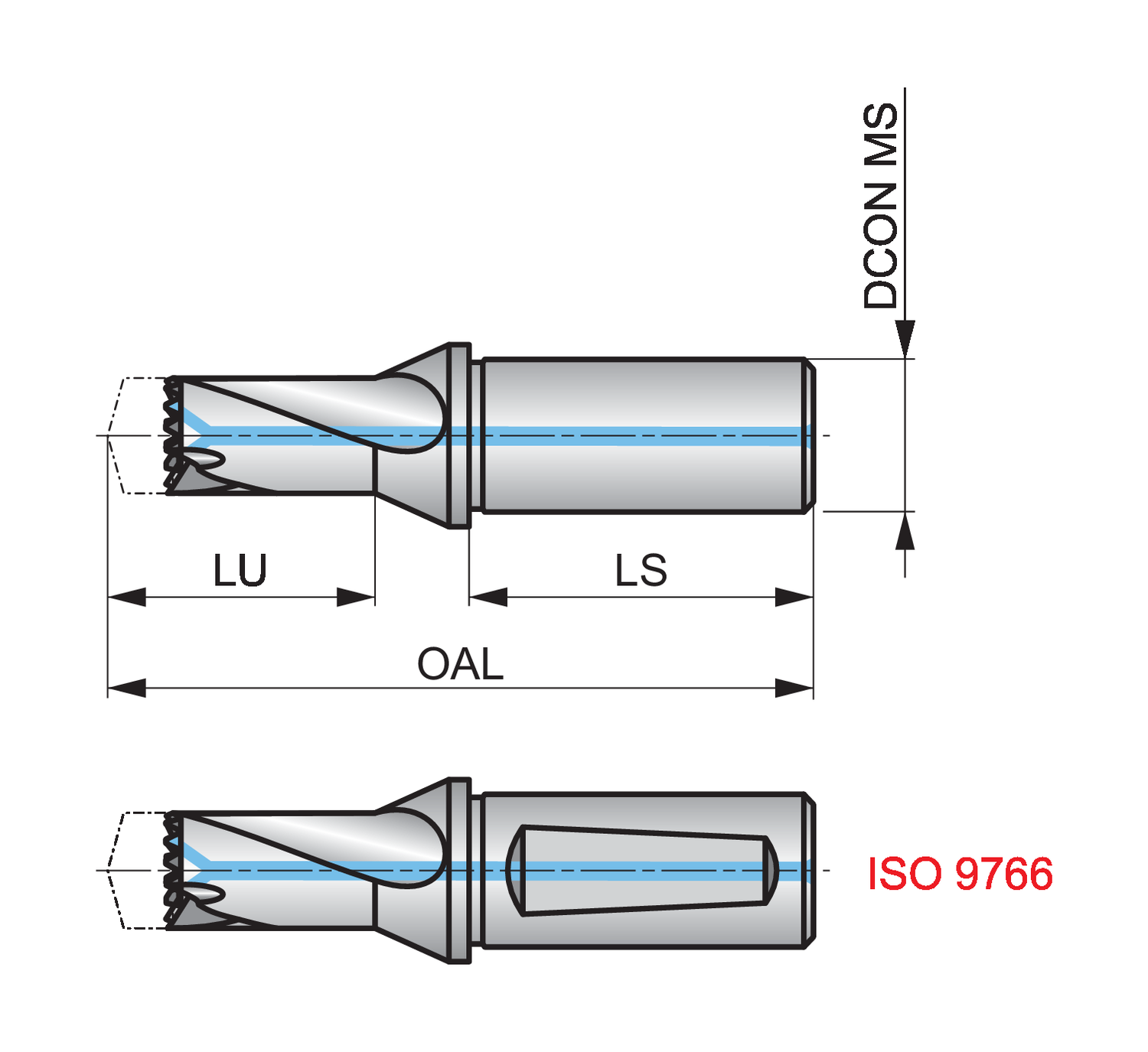

Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 49.3 mm
Overall length – millimeter (OAL): 124.3 mm
Shank length – millimeter (LS): 60 mm
Connection norm (ADINTMS): ISO 9766
ISO: H85124.0

Brand

DORMER
