DORMER H85125.0 Hydra Body

Product Code: H85125.0

$668.47$607.70 Ex. GST

Product Code: H85125.0 SKU H85125.0 Categories , ,

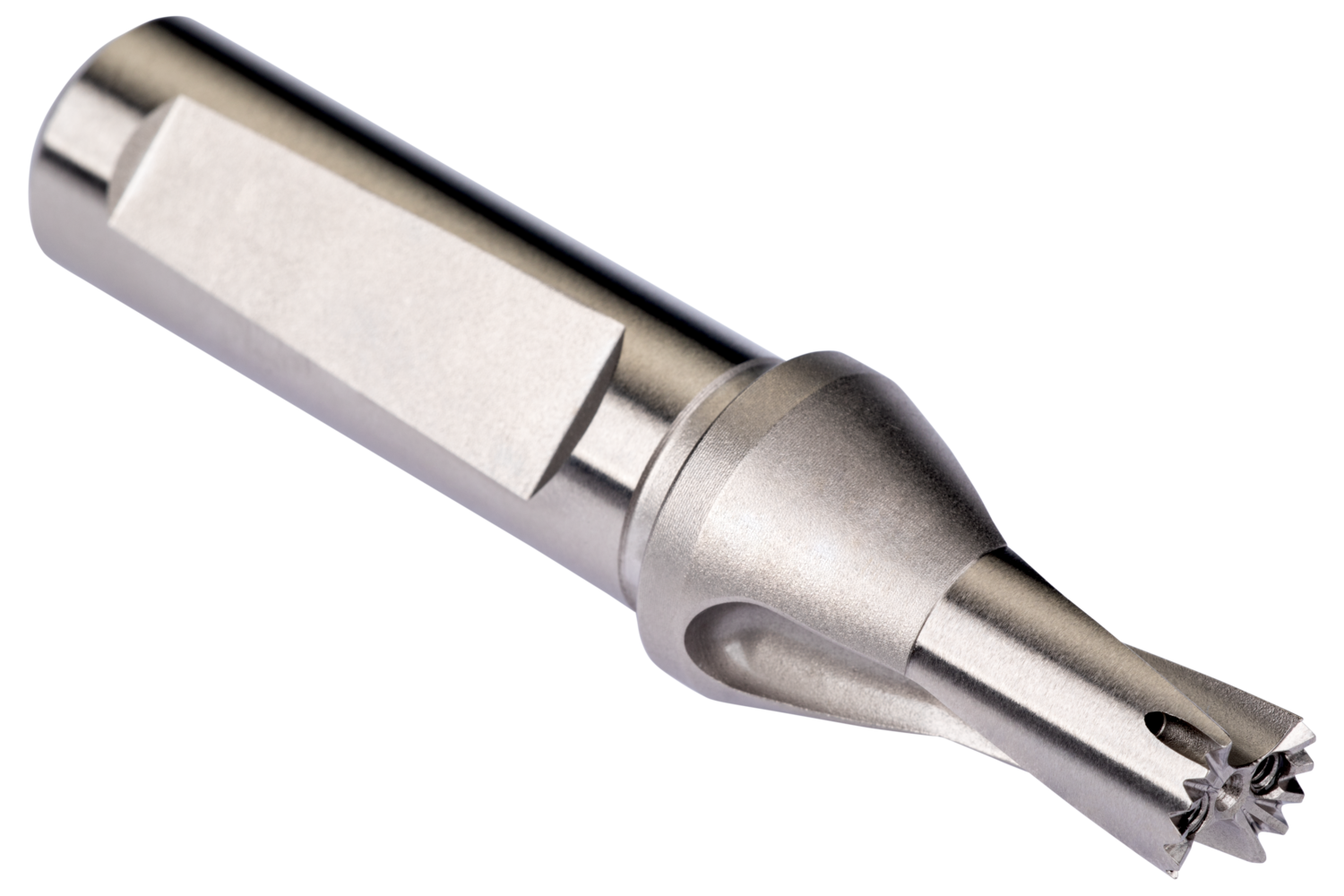

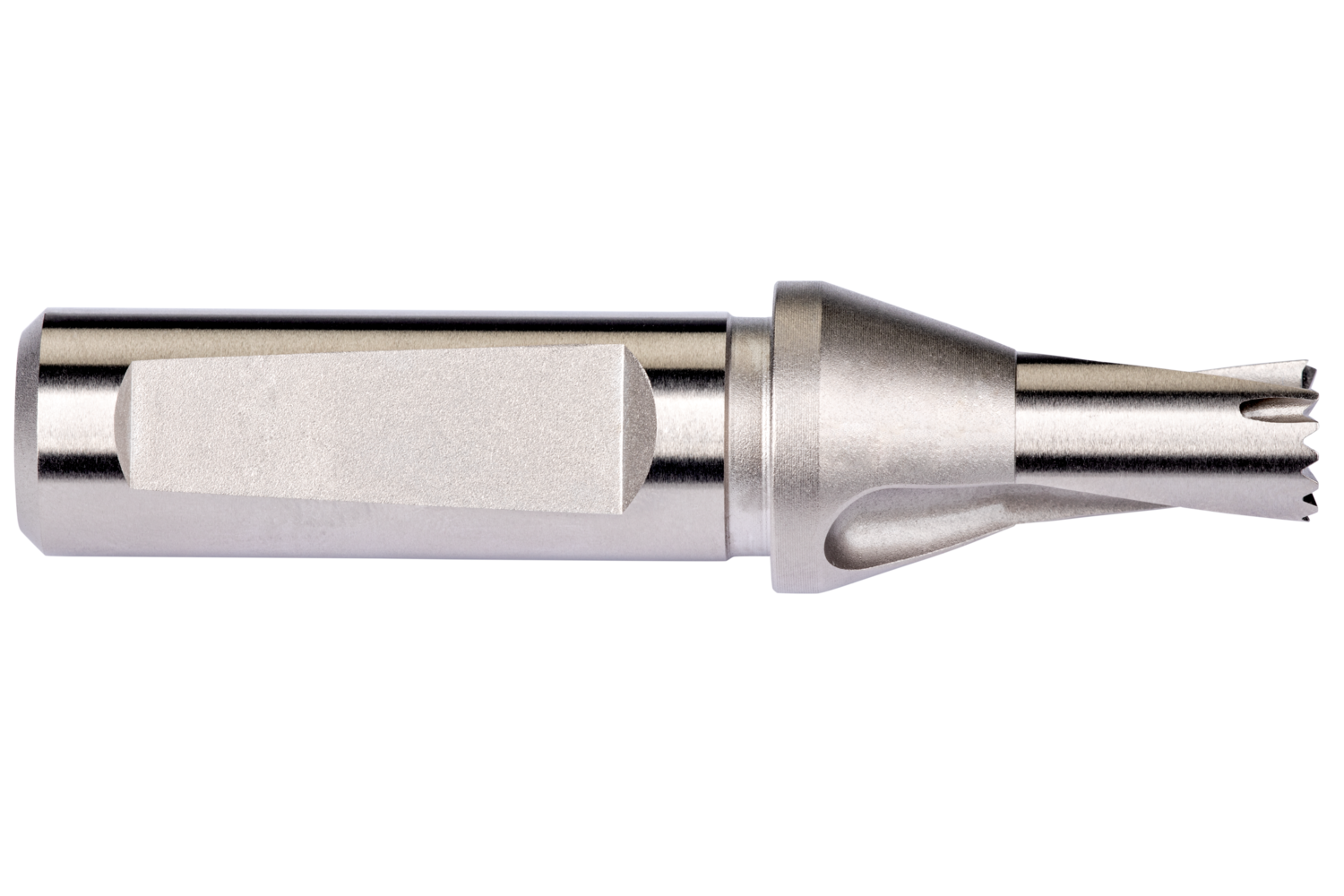

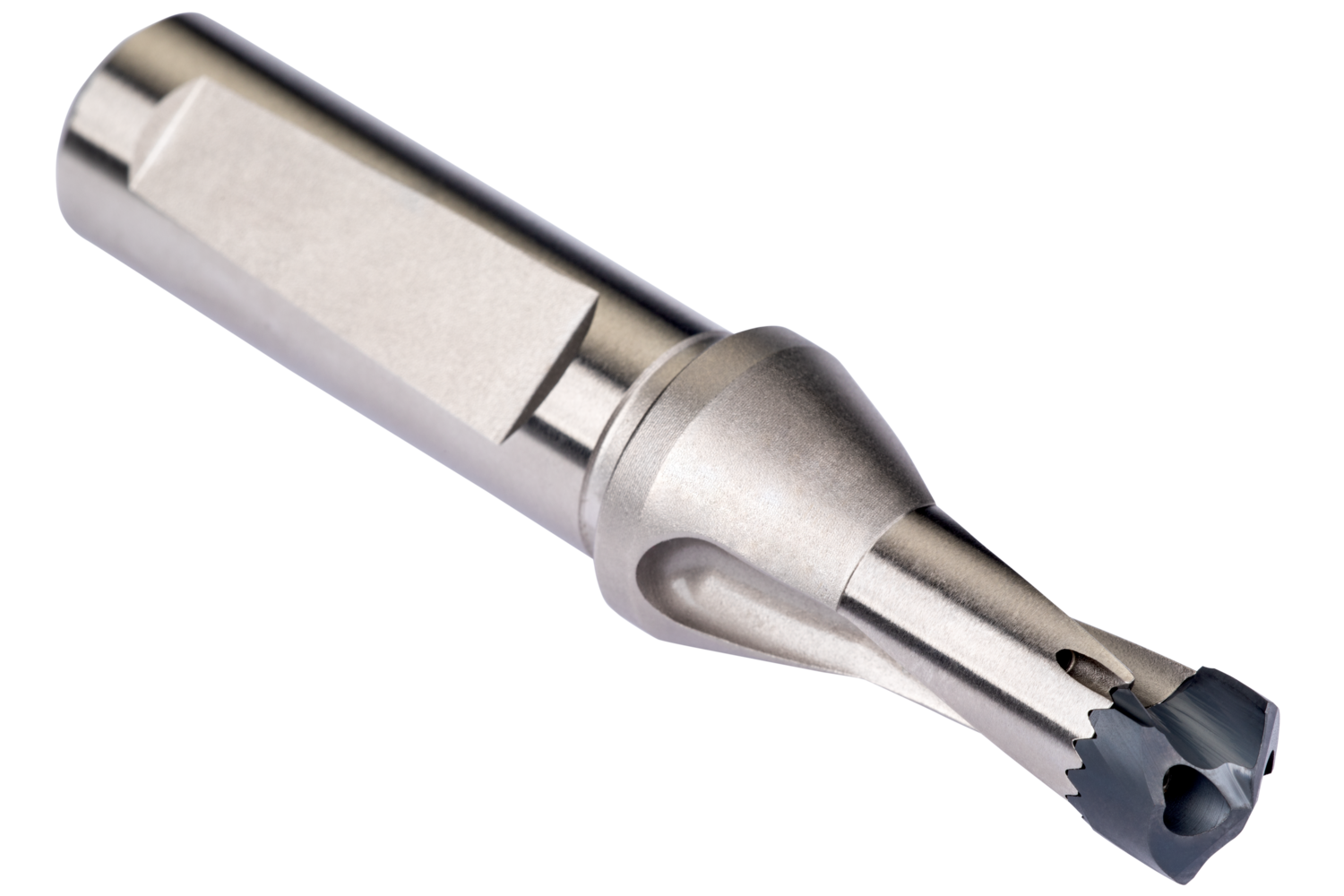

DORMER H85125.0 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

DOR Replaceable head drill body HYDRA with ISO 9766 shank with flange and flat, size 25.0mm with an overall length of 124.7mm and flute length of 49.7mm according to DORMER standard for 1.5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 25 up to 25.8mm

Additional information

Weight 0.6490 kg
Dimensions Length 12.47cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760894880
Product number (SAP): 86036576
Ordering code ANSI: H85125.0
Product Line: HYDRA
Gross weight – grams: 719

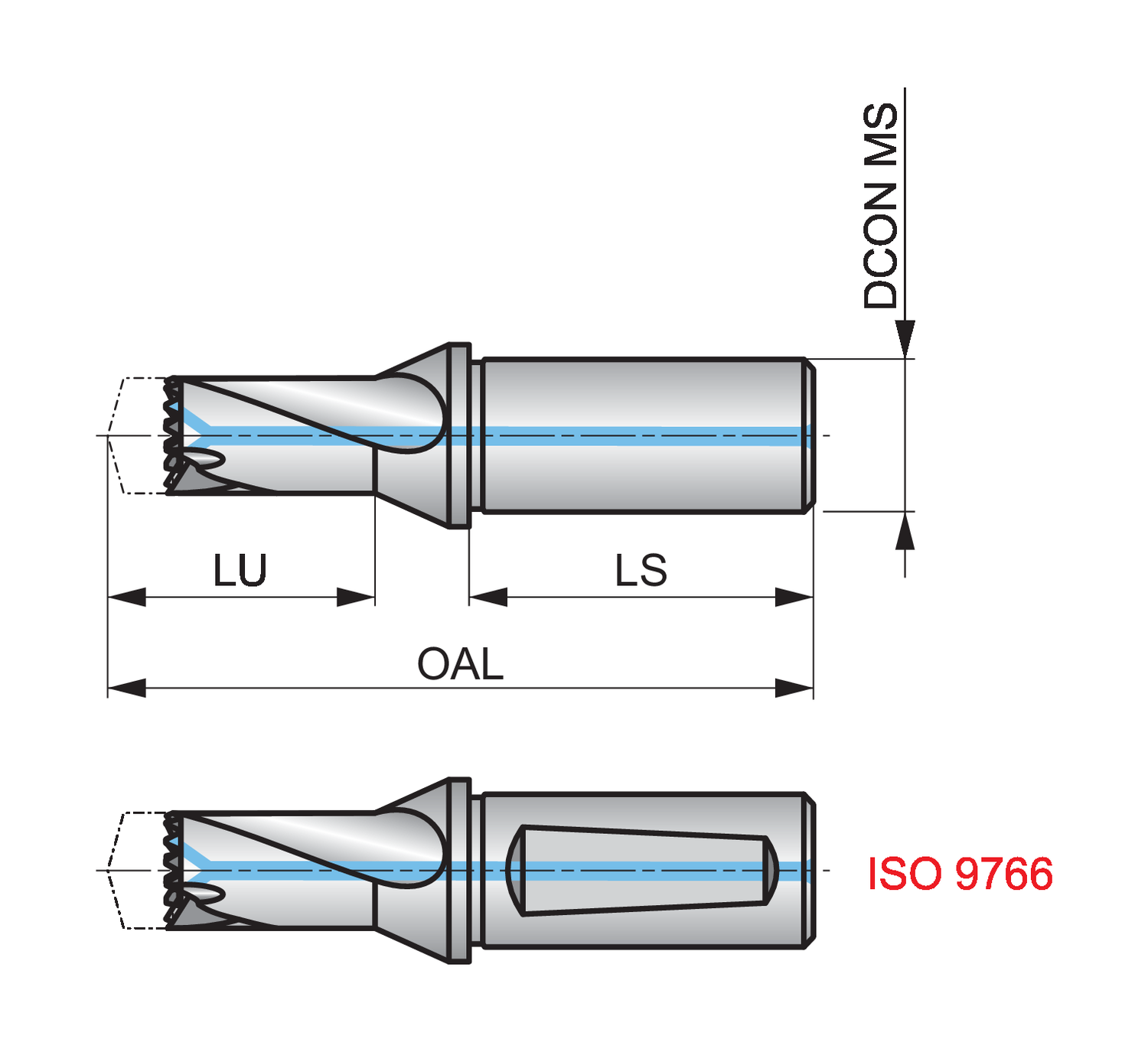

Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 49.7 mm
Overall length – millimeter (OAL): 124.7 mm
Shank length – millimeter (LS): 60 mm
Connection norm (ADINTMS): ISO 9766
ISO: H85125.0

Brand

DORMER
