DORMER H85139/64 Hydra Body

Product Code: H85139/64

$515.52$468.65 Ex. GST

Product Code: H85139/64 SKU H85139/64 Categories , ,
DORMER H85139/64 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

DOR Replaceable head drill body HYDRA with ISO 9766 shank with flange and flat, size 39/64″ with an overall length of 97.3mm and flute length of 32.3mm according to DORMER standard for 1.5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 0.5748 up to 0.6102″

Additional information

Weight 0.5005 kg
Dimensions Length 9.73cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760894620
Product number (SAP): 86036550
Ordering code ANSI: H85139/64
Product Line: HYDRA
Gross weight – grams: 235.8

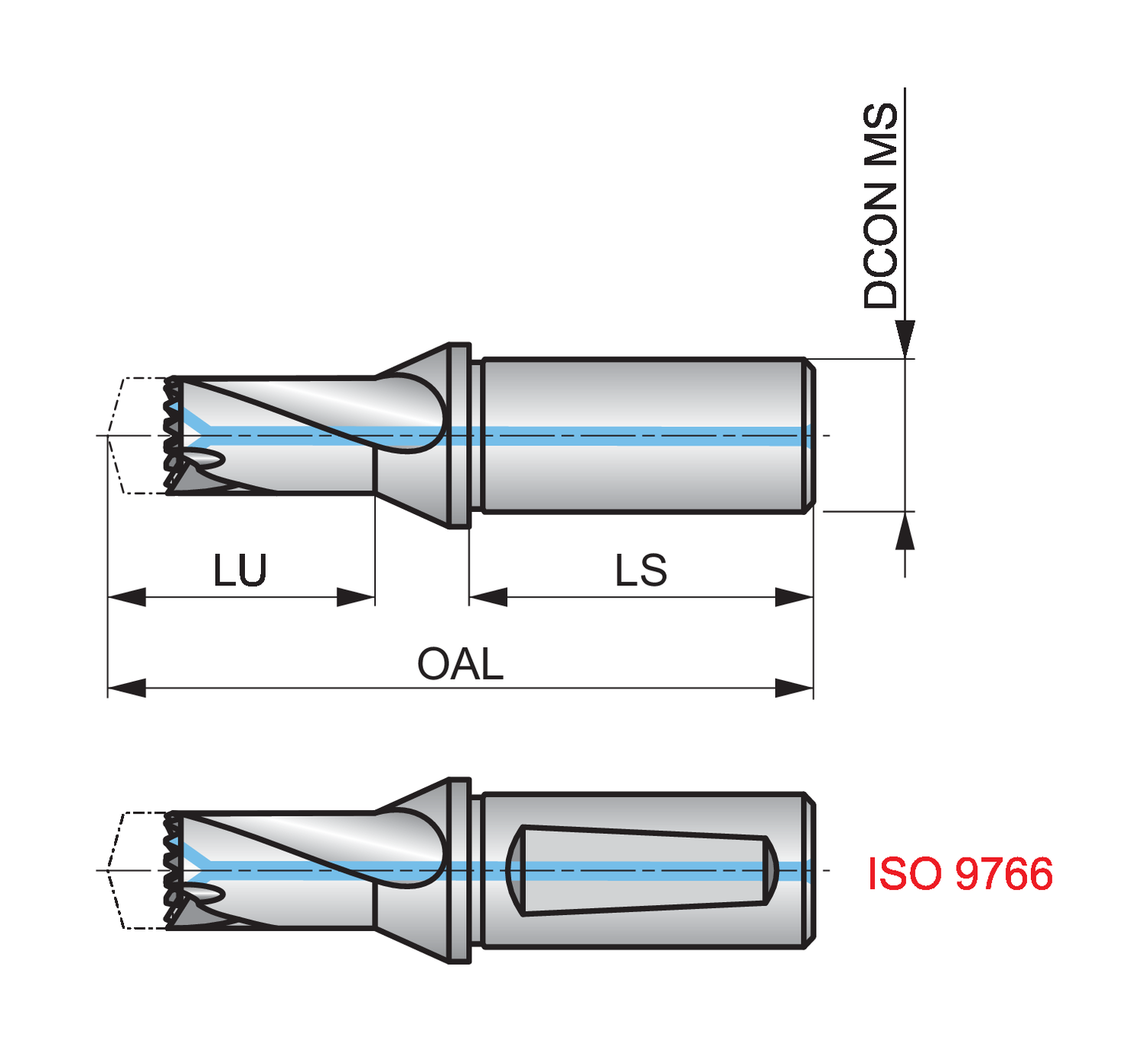

Connection diameter – fractional inch (DCON MS): 3/4
Connection diameter – millimeter (DCON MS): 19.05 mm
Usable Length – millimeter (LU): 32.3 mm
Overall length – millimeter (OAL): 97.3 mm
Shank length – millimeter (LS): 50.8 mm
Connection norm (ADINTMS): Cylindrical
ISO: H85139/64

Brand

DORMER
