DORMER H85159/64 Hydra Body

Product Code: H85159/64

$668.47$607.70 Ex. GST

Product Code: H85159/64 SKU H85159/64 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

DOR Replaceable head drill body HYDRA with ISO 9766 shank with flange and flat, size 59/64″ with an overall length of 118mm and flute length of 47mm according to DORMER standard for 1.5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 0.9055 up to 0.9252″

Additional information

Weight 0.6490 kg
Dimensions Length 11.8cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760894798
Product number (SAP): 86036567
Ordering code ANSI: H85159/64
Product Line: HYDRA
Gross weight – grams: 432

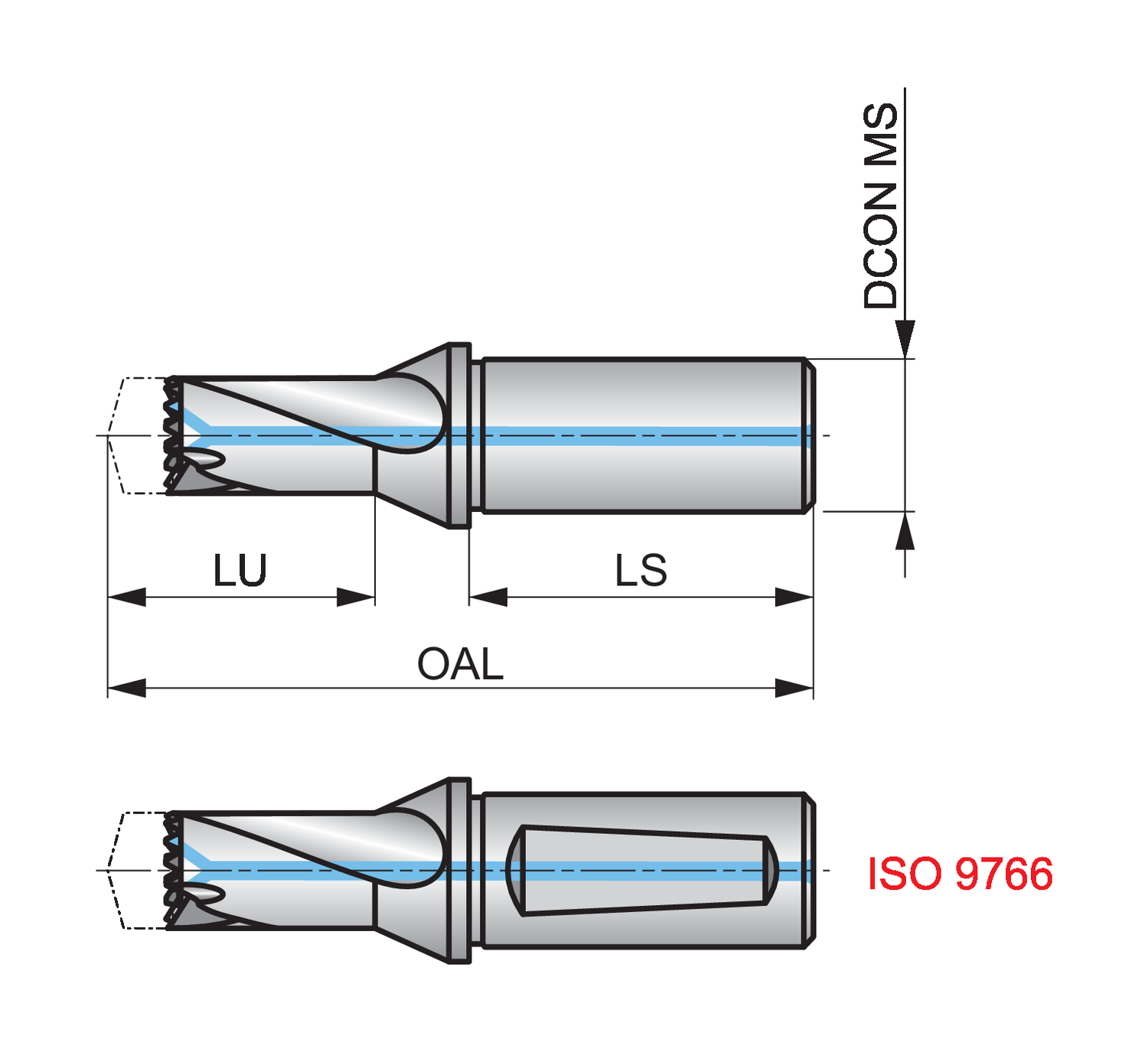

Connection diameter – fractional inch (DCON MS): 1"
Connection diameter – millimeter (DCON MS): 25.4 mm
Usable Length – millimeter (LU): 47 mm
Overall length – millimeter (OAL): 118 mm
Shank length – millimeter (LS): 57.15 mm
Connection norm (ADINTMS): Cylindrical
ISO: H85159/64

Brand

DORMER
