DORMER H85312.0 Hydra Body

Product Code: H85312.0

$501.92$456.29 Ex. GST

Product Code: H85312.0 SKU H85312.0 Categories , ,
DORMER H85312.0 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

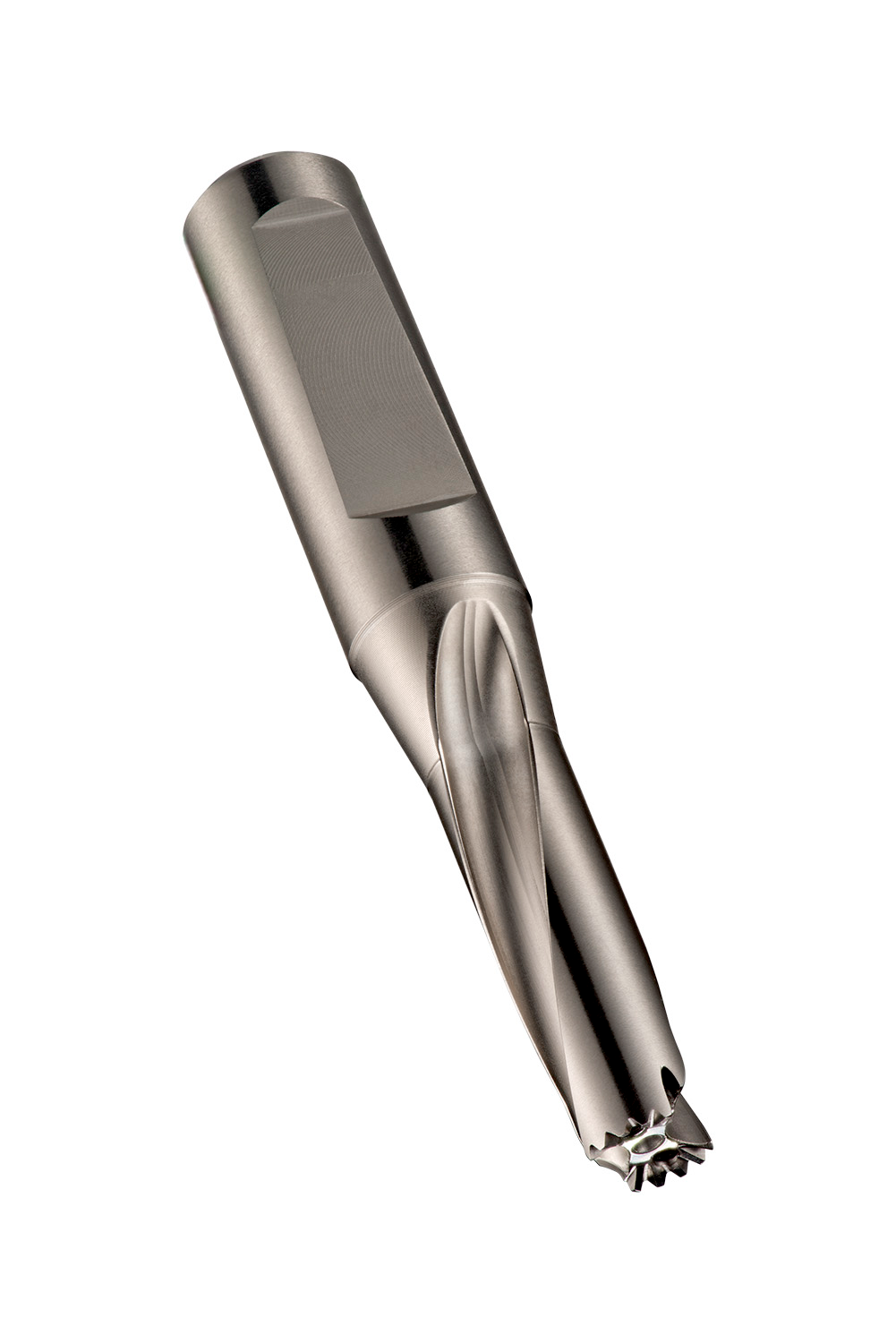

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 12.0mm with an overall length of 105mm and flute length of 44mm according to DORMER standard for 3xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 11.91 up to 12.5mm

Additional information

Weight 0.4873 kg
Dimensions Length 10.5cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760017777
Product number (SAP): 86018320
Ordering code ANSI: H85312.0
Product Line: HYDRA
Gross weight – grams: 162.2

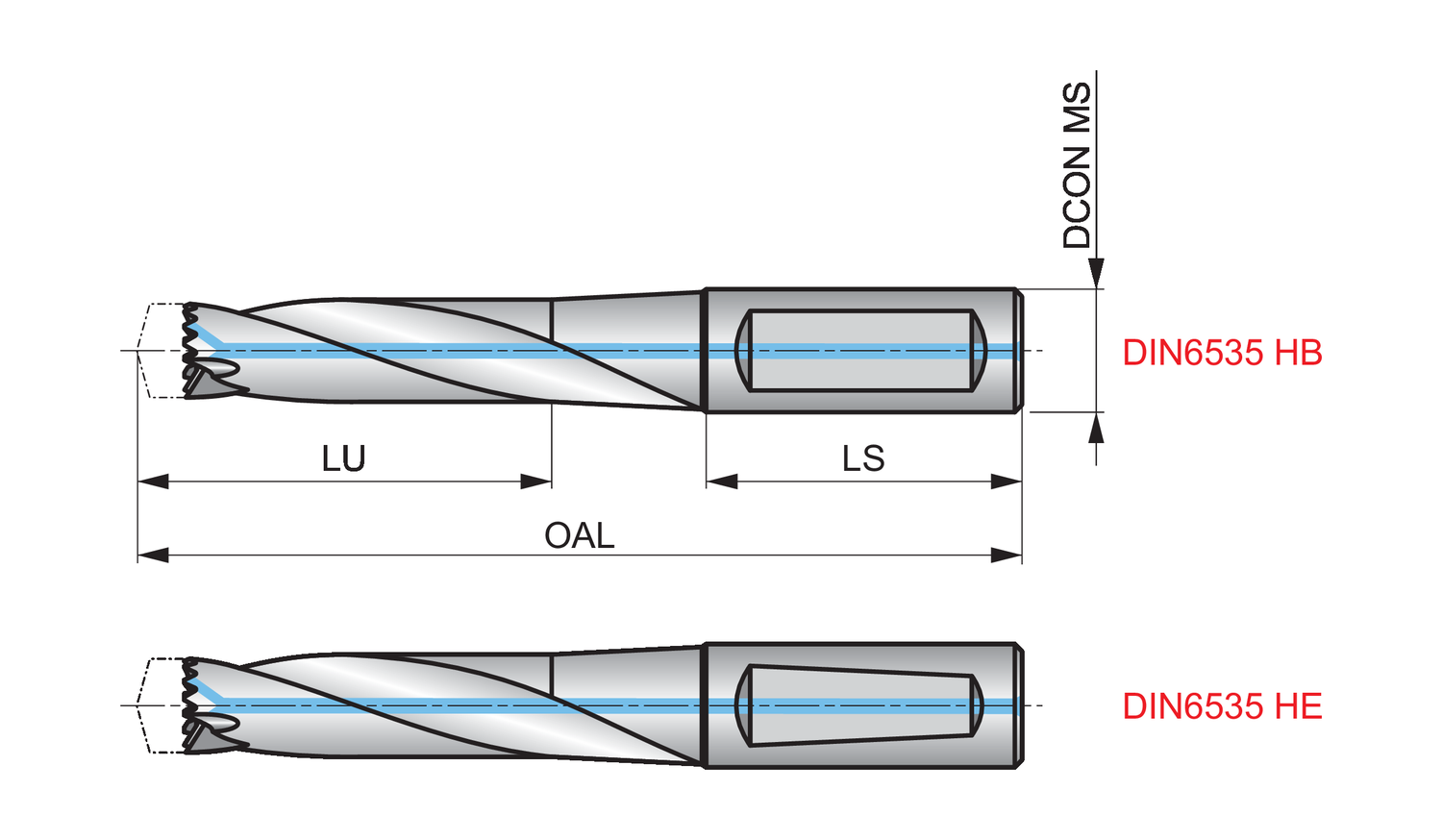

Connection diameter – millimeter (DCON MS): 16 mm
Usable Length – millimeter (LU): 44 mm
Overall length – millimeter (OAL): 105 mm
Shank length – millimeter (LS): 48 mm
Connection norm (ADINTMS): DIN6535HE
ISO: H85312.0

Brand

DORMER
