DORMER H85317/32 Hydra Body

Product Code: H85317/32

$509.85$463.50 Ex. GST

Product Code: H85317/32 SKU H85317/32 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

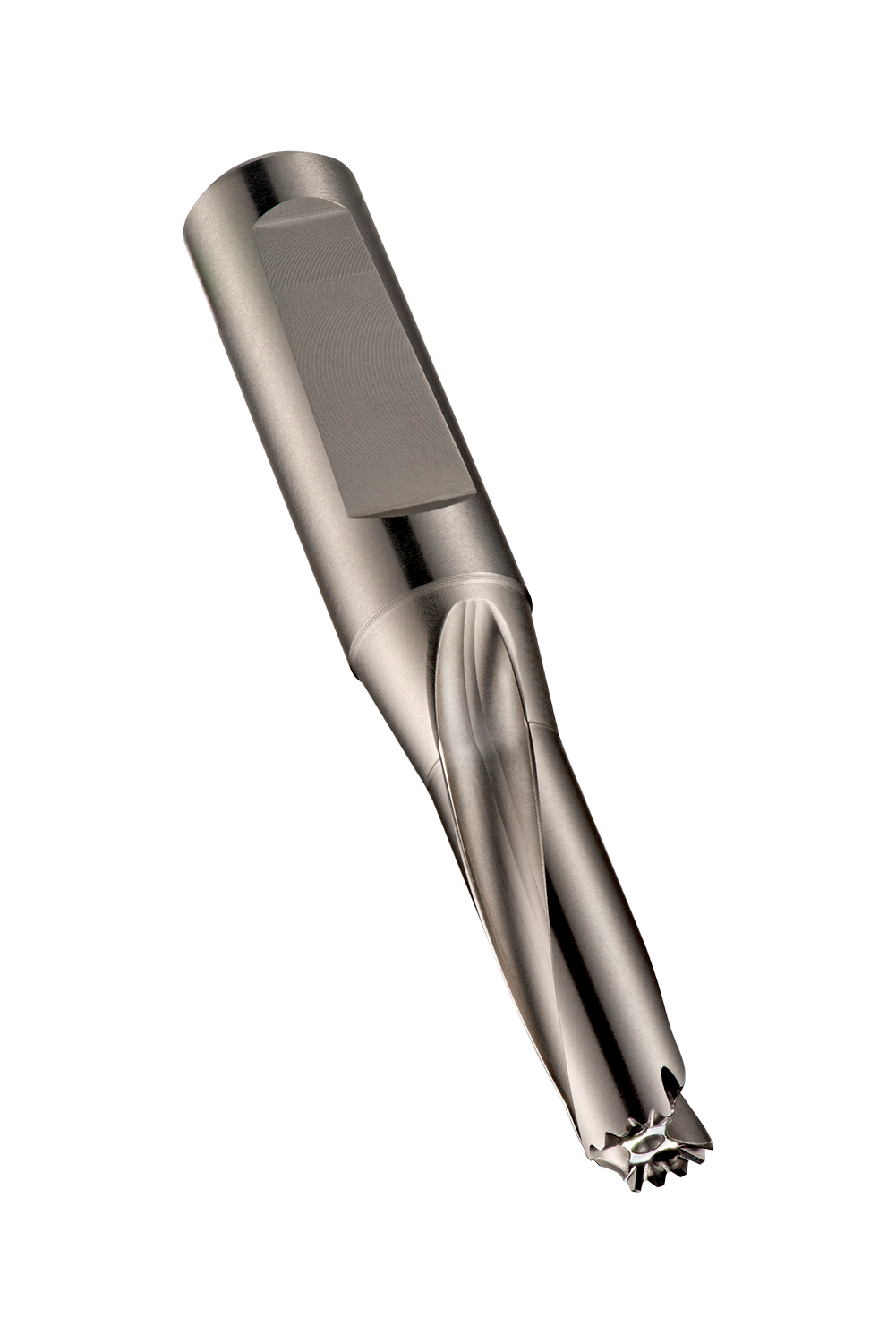

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 17/32″ with an overall length of 110mm and flute length of 47mm according to DORMER standard for 3xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 0.5118 up to 0.5313″ (7/32)

Additional information

Weight 0.4950 kg
Dimensions Length 11cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760033067
Product number (SAP): 86018327
Ordering code ANSI: H85317/32
Product Line: HYDRA
Gross weight – grams: 169

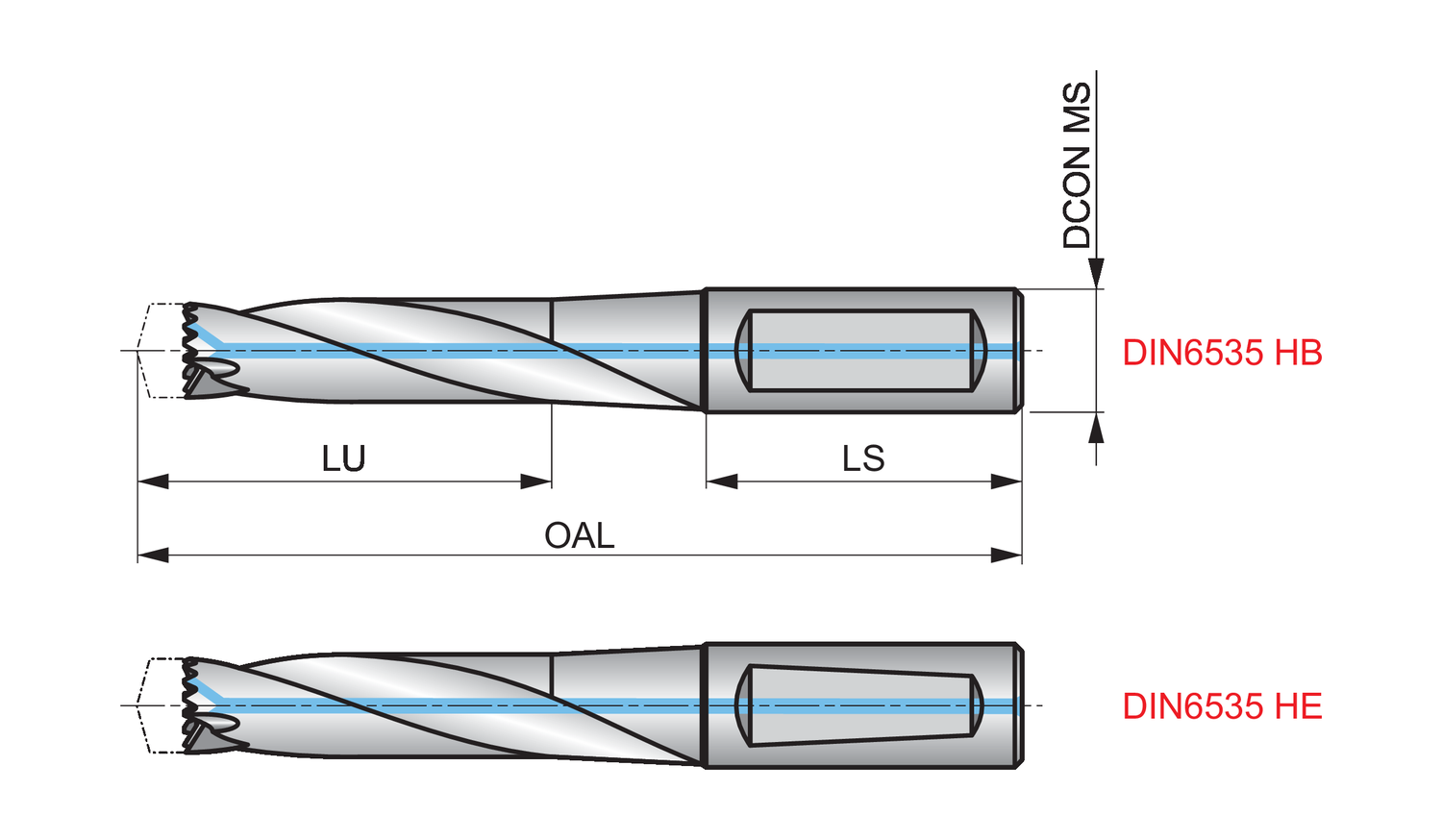

Connection diameter – fractional inch (DCON MS): 5/8
Connection diameter – millimeter (DCON MS): 15.88 mm
Usable Length – millimeter (LU): 47 mm
Overall length – millimeter (OAL): 110 mm
Shank length – millimeter (LS): 48 mm
Connection norm (ADINTMS): DIN6535HB
ISO: H85317/32

Brand

DORMER
