DORMER H85318.0 Hydra Body

Product Code: H85318.0

$515.52$468.65 Ex. GST

Product Code: H85318.0 SKU H85318.0 Categories , ,
DORMER H85318.0 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

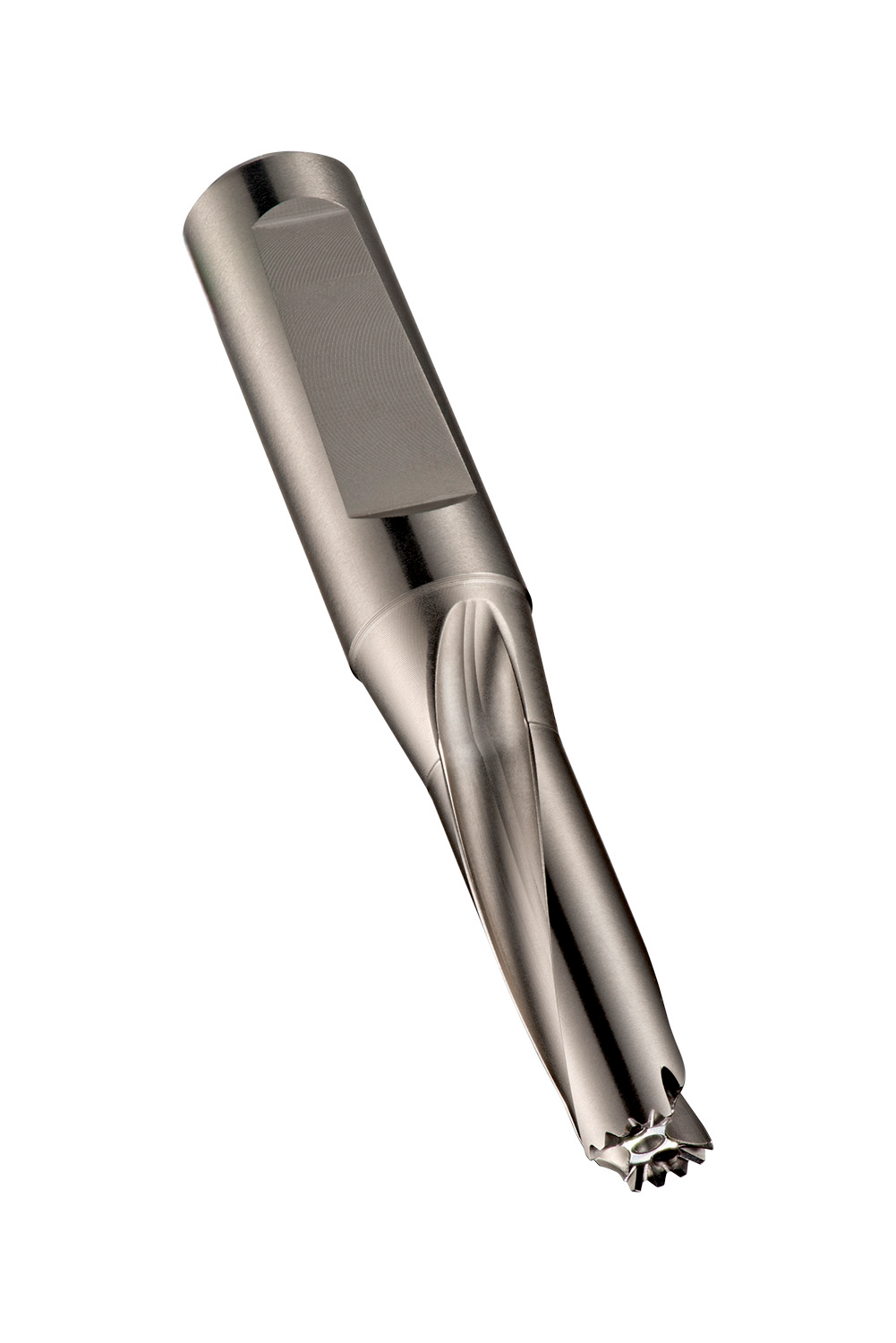

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 18.0mm with an overall length of 141.5mm and flute length of 66.5mm according to DORMER standard for 3xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 17.6 up to 18.5mm

Additional information

Weight 0.5005 kg
Dimensions Length 14.15cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760018330
Product number (SAP): 86018328
Ordering code ANSI: H85318.0
Product Line: HYDRA
Gross weight – grams: 331.5

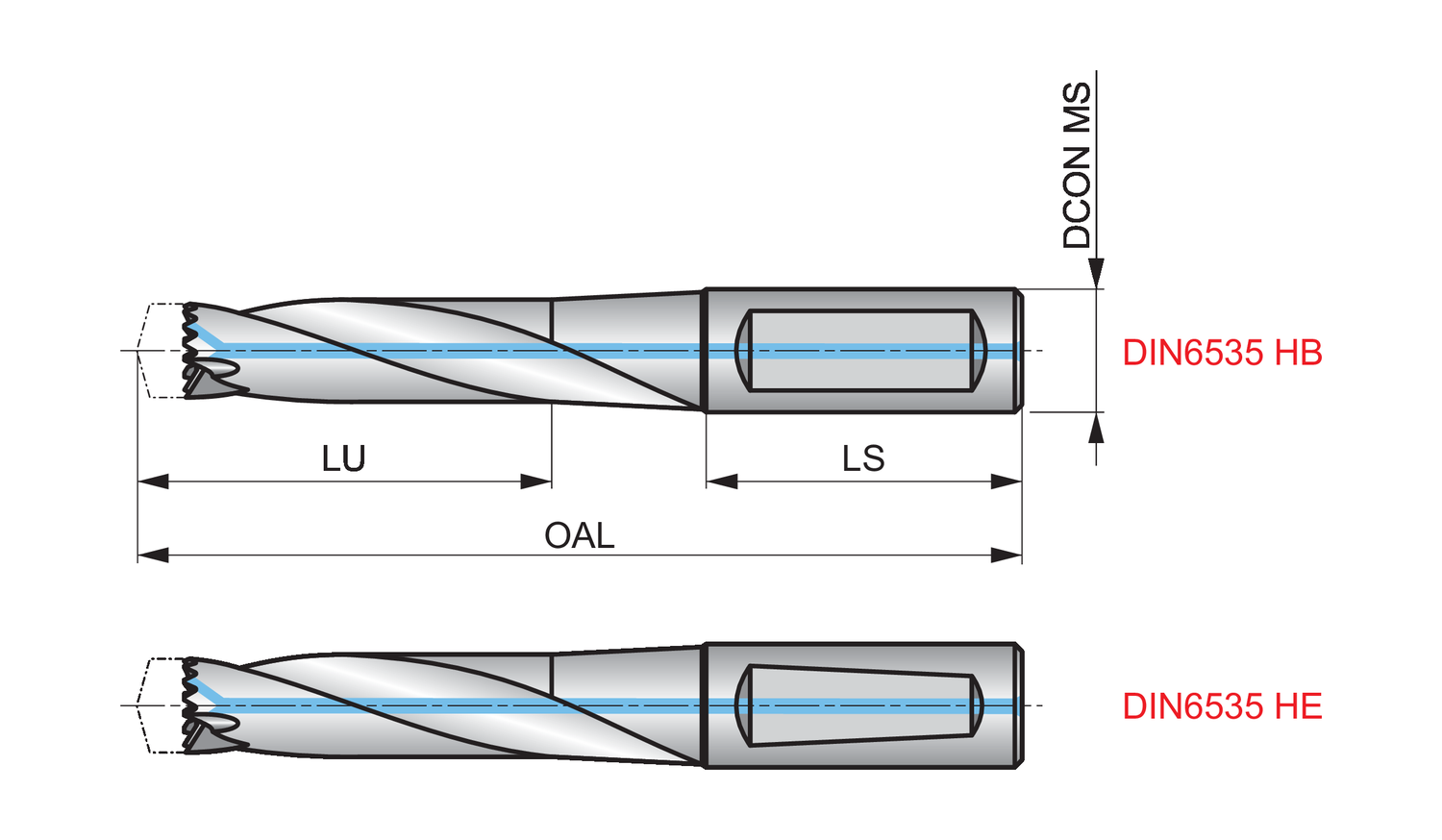

Connection diameter – millimeter (DCON MS): 20 mm
Usable Length – millimeter (LU): 66.5 mm
Overall length – millimeter (OAL): 141.5 mm
Shank length – millimeter (LS): 50 mm
Connection norm (ADINTMS): DIN6535HE
ISO: H85318.0

Brand

DORMER
