DORMER H85325.0 Hydra Body

Product Code: H85325.0

$668.47$607.70 Ex. GST

Product Code: H85325.0 SKU H85325.0 Categories , ,
DORMER H85325.0 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

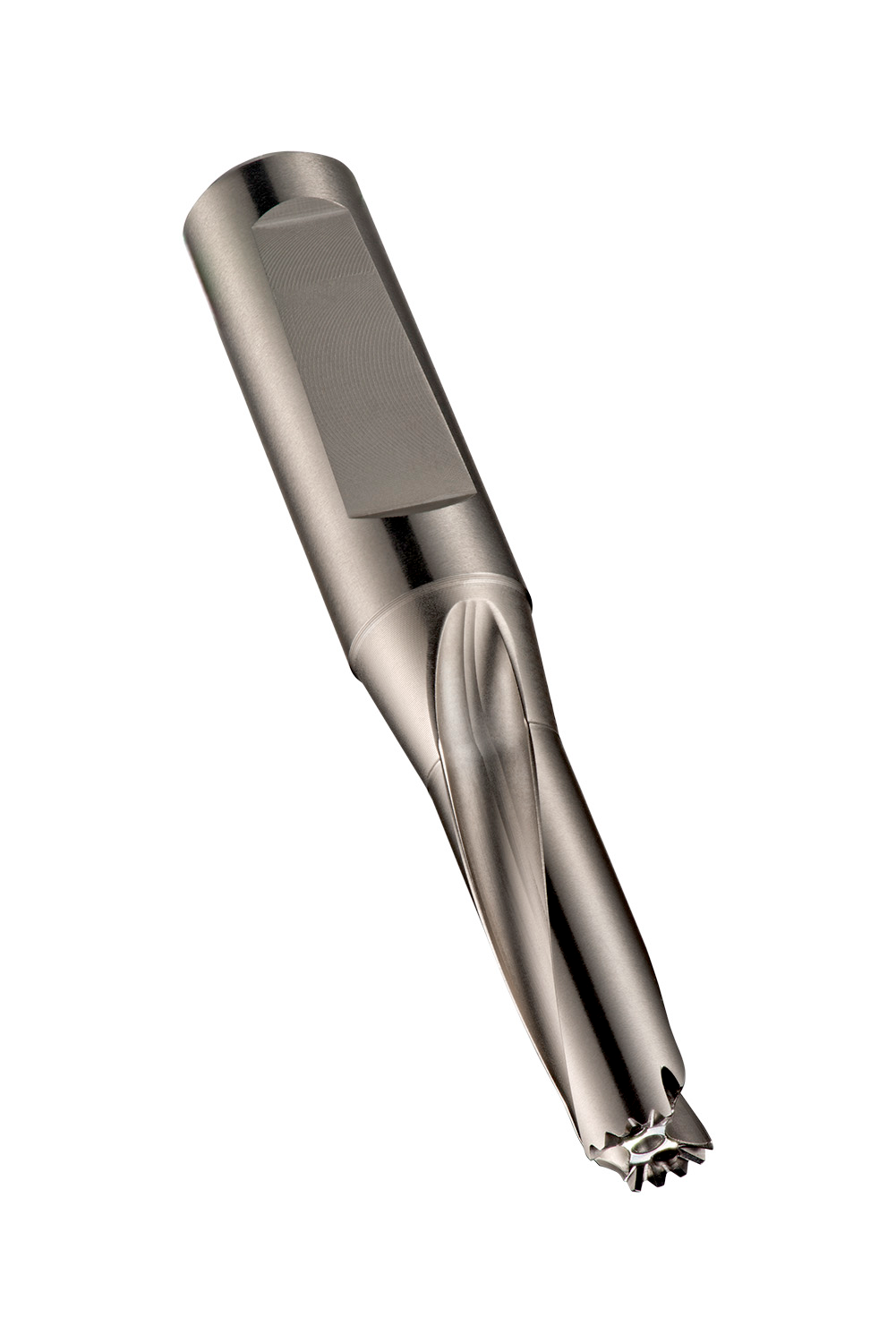

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 25.0mm with an overall length of 170mm and flute length of 88mm according to DORMER standard for 3xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 25 up to 25.8mm

Additional information

Weight 0.6490 kg
Dimensions Length 17cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760018408
Product number (SAP): 86018336
Ordering code ANSI: H85325.0
Product Line: HYDRA
Gross weight – grams: 787.3

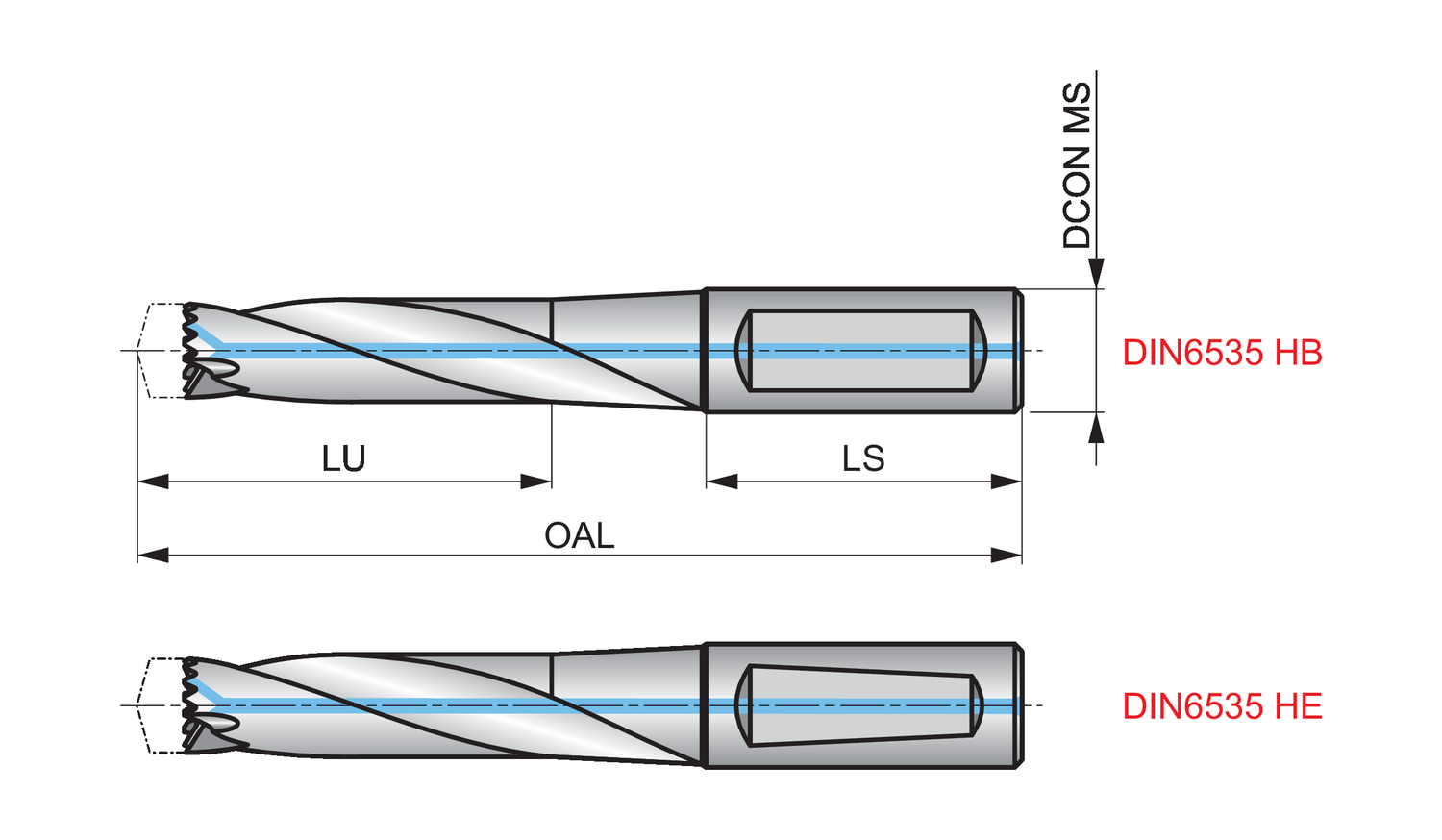

Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 88 mm
Overall length – millimeter (OAL): 170 mm
Shank length – millimeter (LS): 60 mm
Connection norm (ADINTMS): DIN6535HE
ISO: H85325.0

Brand

DORMER
