DORMER H85330.0 Hydra Body

Product Code: H85330.0

$726.25$660.23 Ex. GST

Product Code: H85330.0 SKU H85330.0 Categories , ,
DORMER H85330.0 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

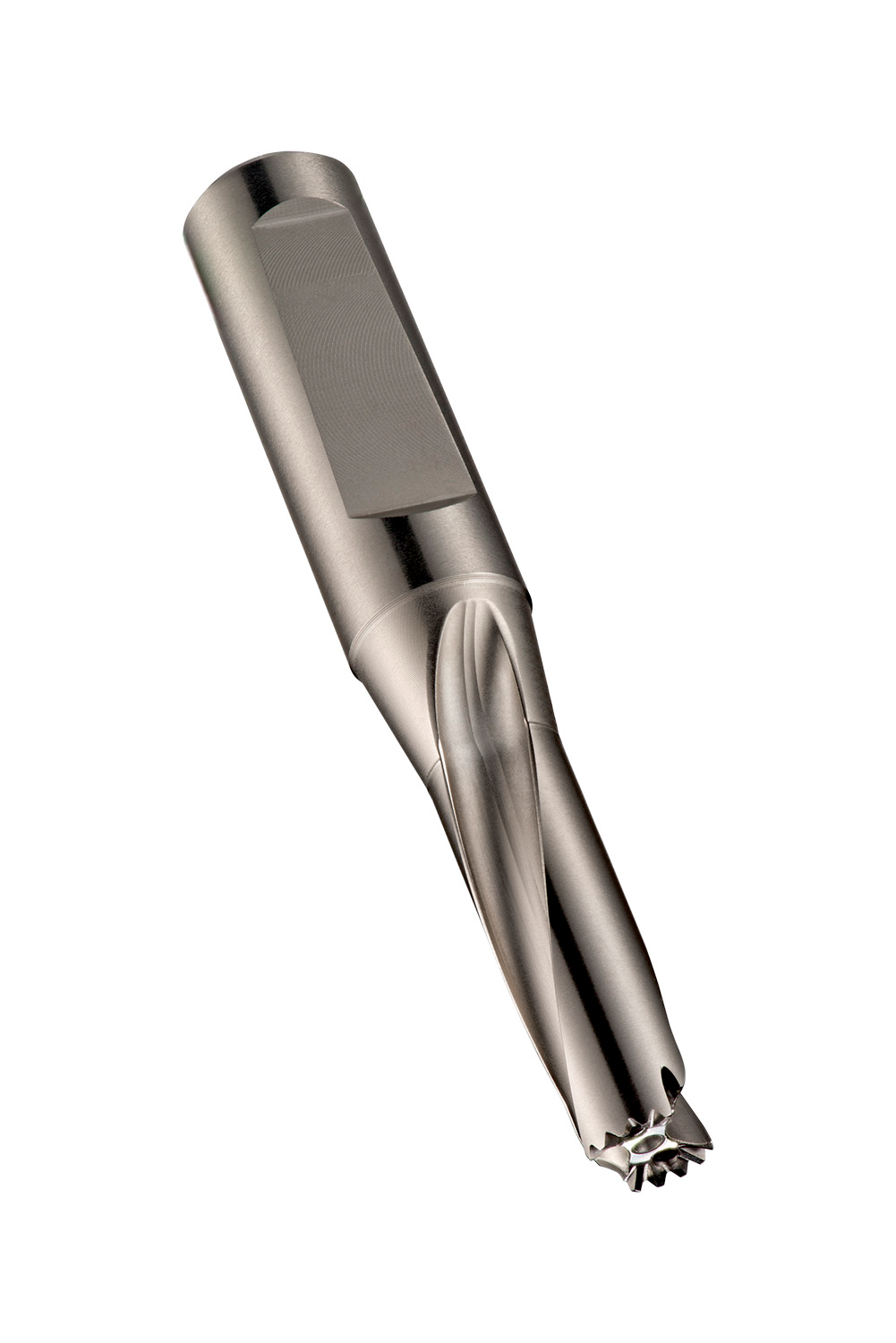

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 30.0mm with an overall length of 185mm and flute length of 104mm according to DORMER standard for 3xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 30 up to 30.5mm

Additional information

Weight 0.7051 kg
Dimensions Length 18.5cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760018453
Product number (SAP): 86018342
Ordering code ANSI: H85330.0
Product Line: HYDRA
Gross weight – grams: 904

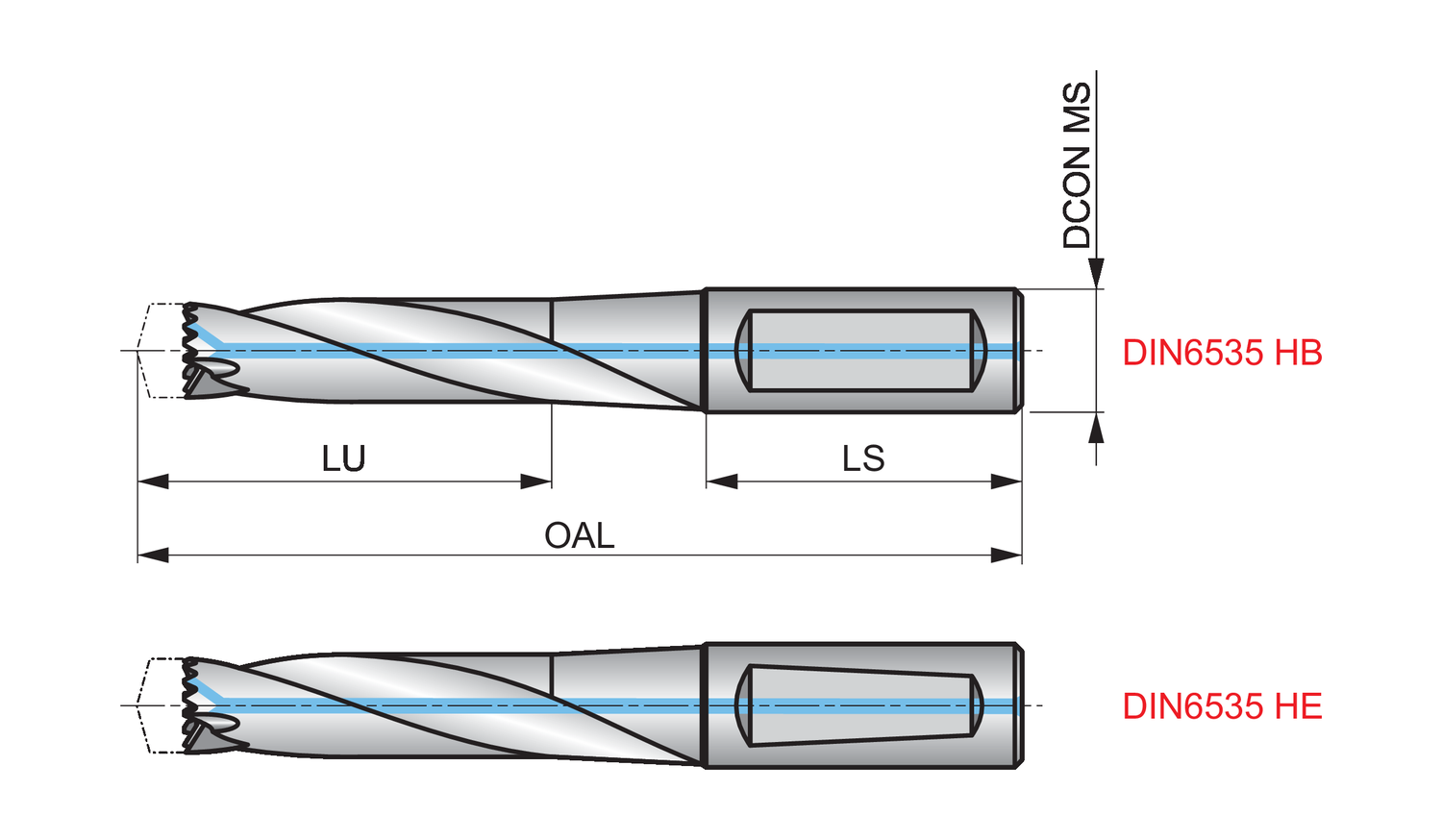

Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 104 mm
Overall length – millimeter (OAL): 185 mm
Shank length – millimeter (LS): 60 mm
Connection norm (ADINTMS): DIN6535HE
ISO: H85330.0

Brand

DORMER
