DORMER H85338.0 Hydra Body

Product Code: H85338.0

$1,155.66$1,050.60 Ex. GST

Product Code: H85338.0 SKU H85338.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

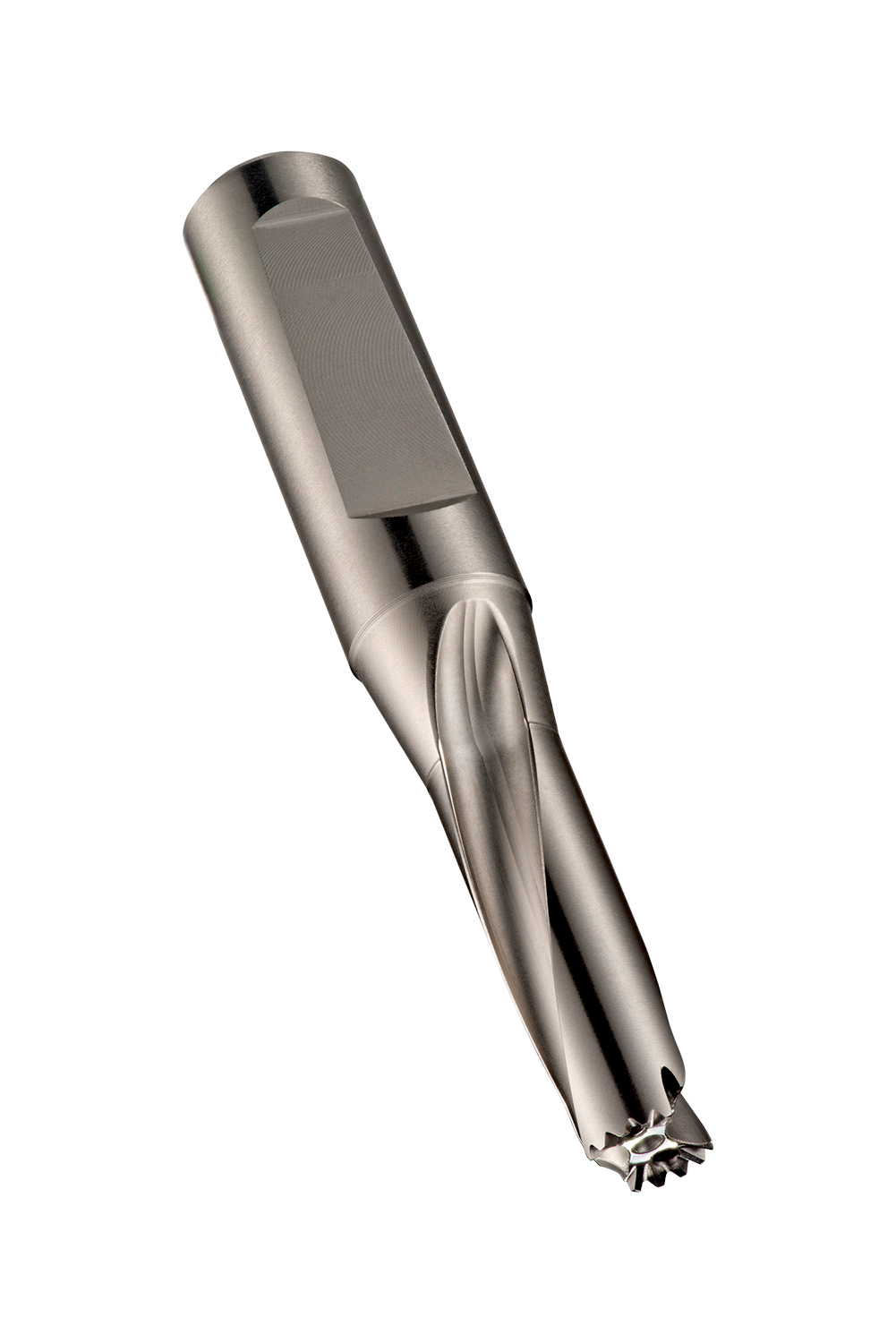

Replaceable head drill body HYDRA with DIN 6535HB NC weldon shank, size 38.0mm with an overall length of 226.5mm and flute length of 131.5mm according to DORMER standard for 3xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 37 up to 38mm

Additional information

Weight 1.1220 kg
Dimensions Length 22.65cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760652480
Product number (SAP): 86018349
Ordering code ANSI: H85338.0
Product Line: HYDRA
Gross weight – grams: 1480

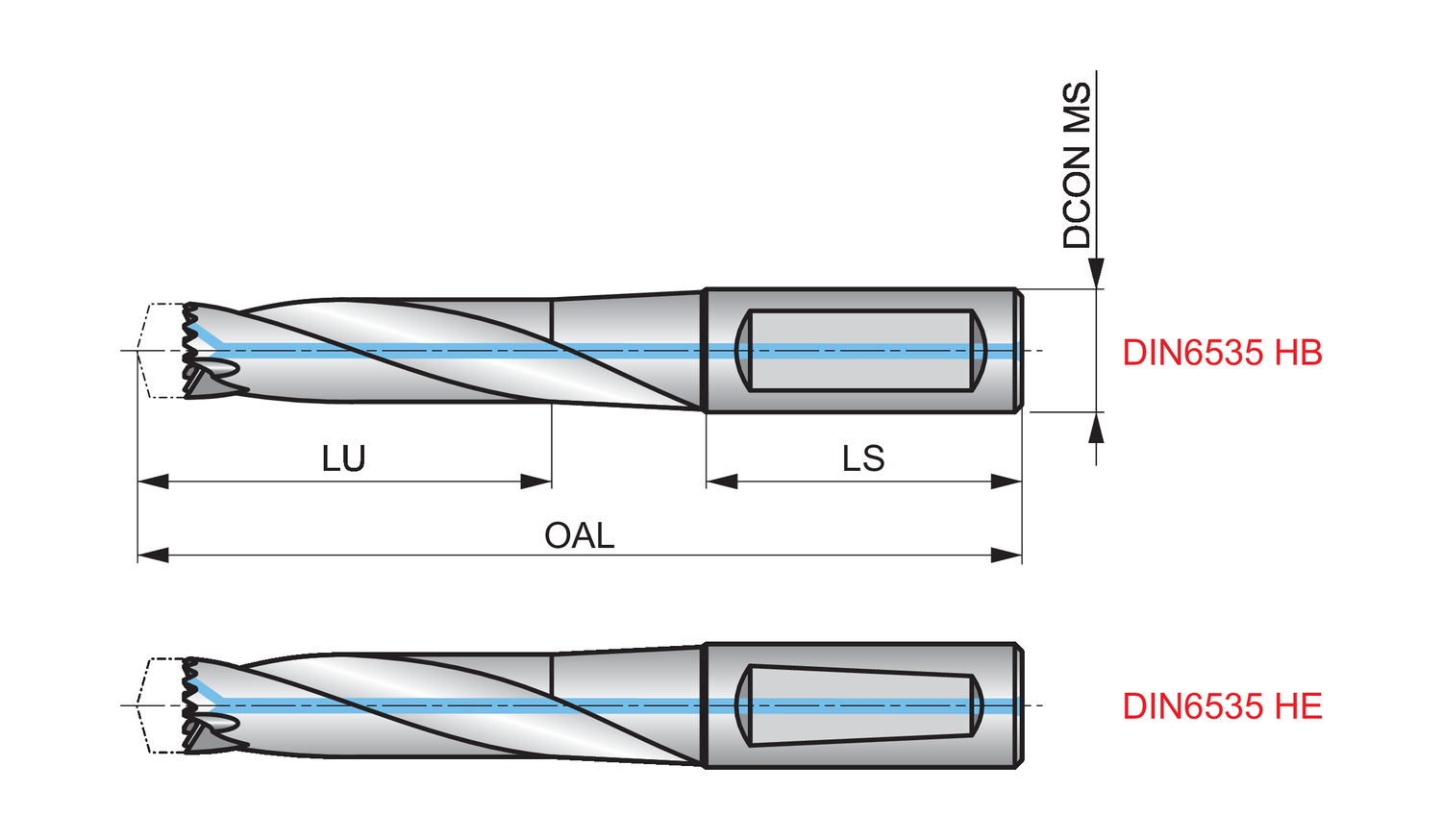

Connection diameter – millimeter (DCON MS): 40 mm
Usable Length – millimeter (LU): 131.5 mm
Overall length – millimeter (OAL): 226.5 mm
Shank length – millimeter (LS): 70 mm
Connection norm (ADINTMS): DIN6535HB
ISO: H85338.0

Brand

DORMER
