DORMER H85339.5 Hydra Body

Product Code: H85339.5

$1,155.66$1,050.60 Ex. GST

Product Code: H85339.5 SKU H85339.5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

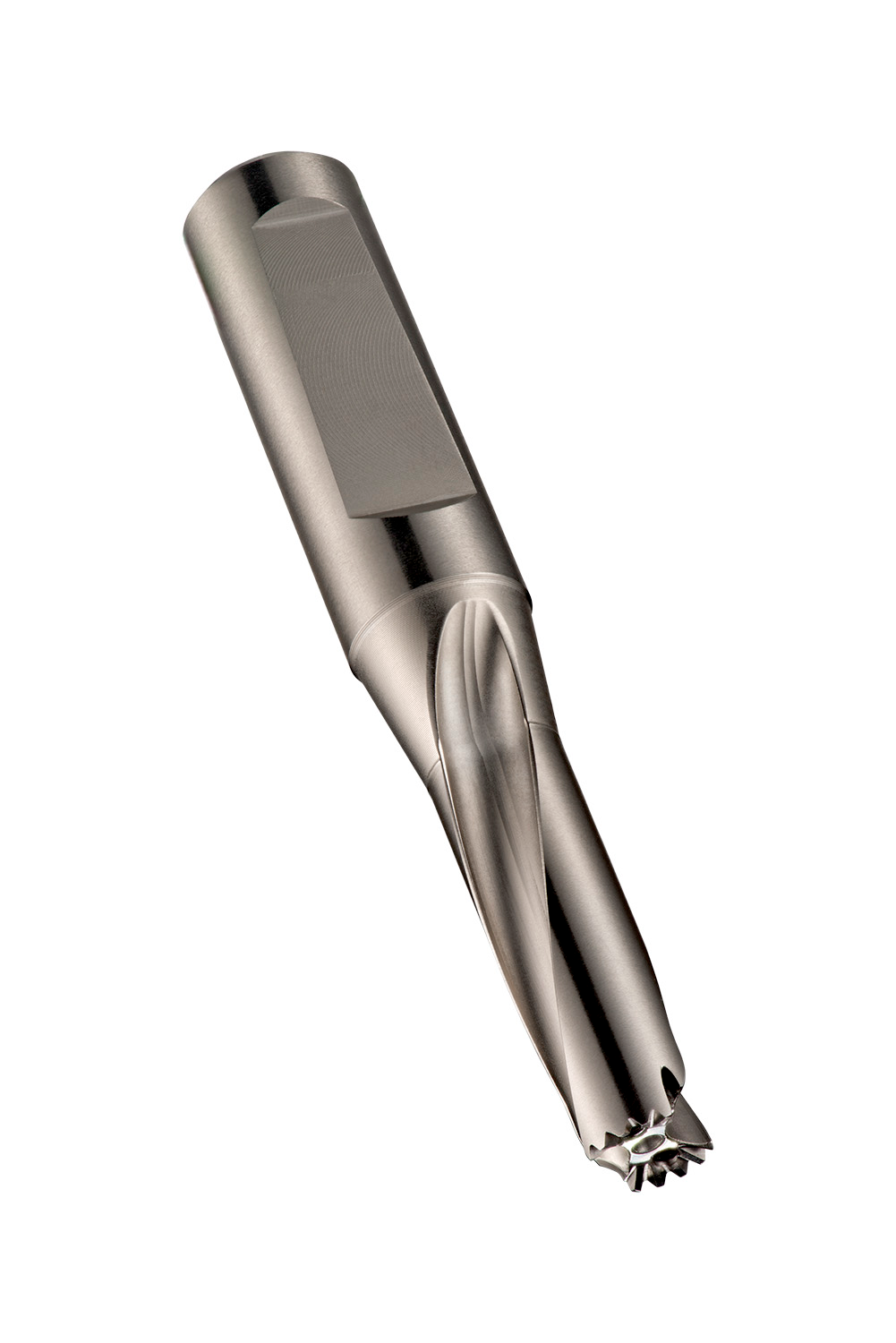

Replaceable head drill body HYDRA with DIN 6535HB NC weldon shank, size 39.5mm with an overall length of 231.5mm and flute length of 136.5mm according to DORMER standard for 3xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 38.1 up to 39.5mm

Additional information

Weight 1.1220 kg
Dimensions Length 23.15cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760652497
Product number (SAP): 86018350
Ordering code ANSI: H85339.5
Product Line: HYDRA
Gross weight – grams: 1537

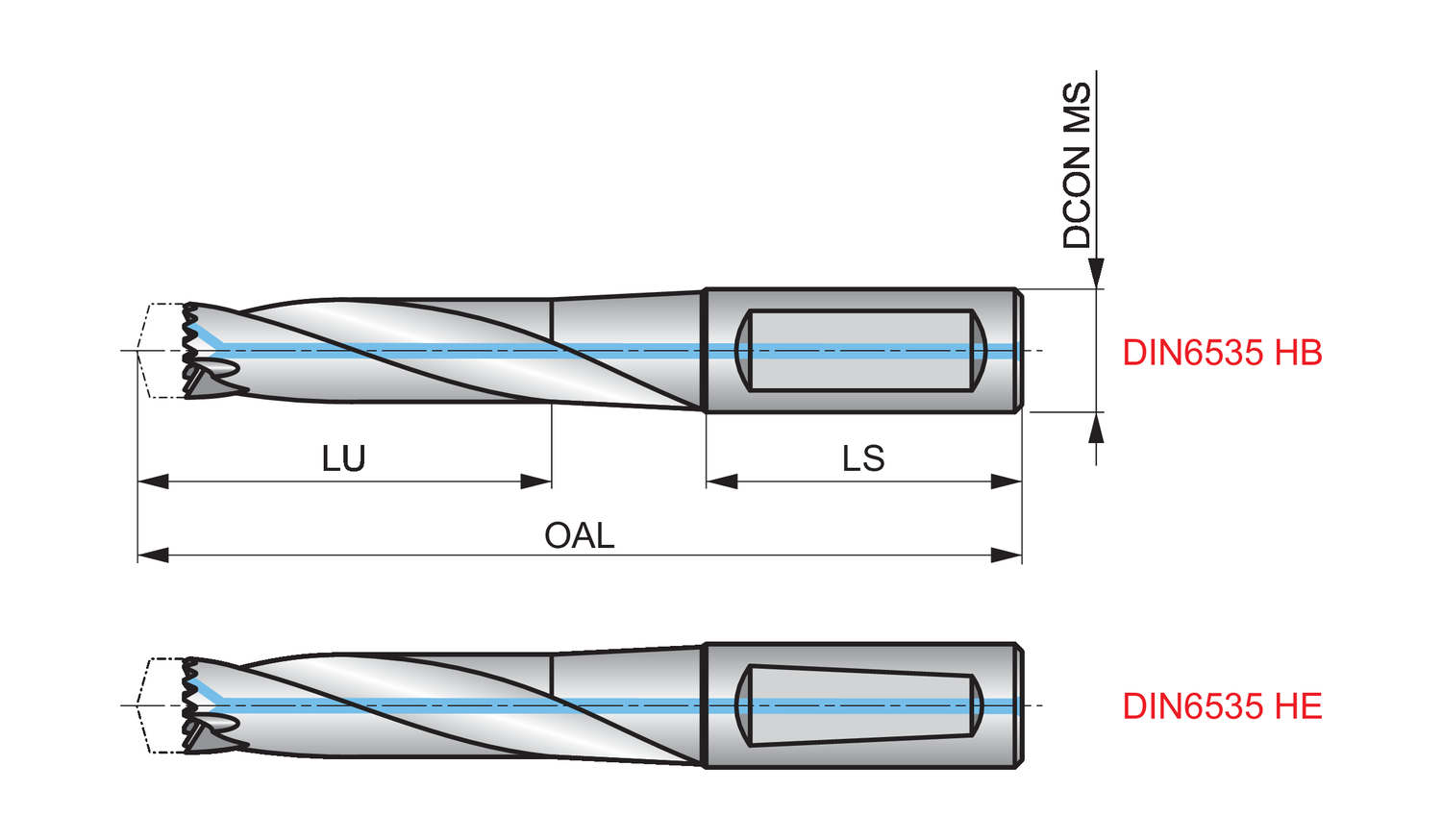

Connection diameter – millimeter (DCON MS): 40 mm
Usable Length – millimeter (LU): 136.5 mm
Overall length – millimeter (OAL): 231.5 mm
Shank length – millimeter (LS): 70 mm
Connection norm (ADINTMS): DIN6535HB
ISO: H85339.5

Brand

DORMER
