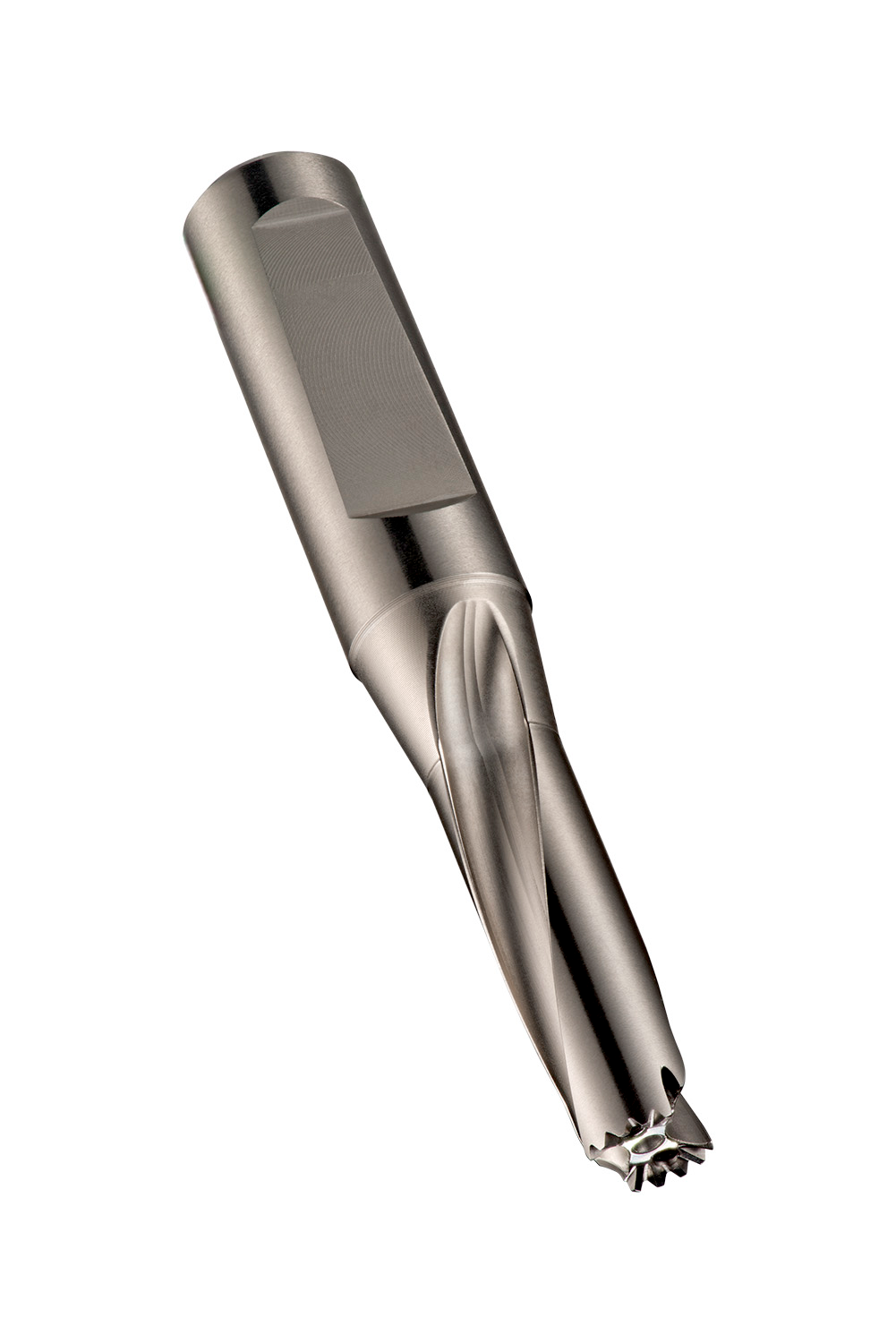

DORMER H85351/64 Hydra Body

Product Code: H85351/64

$556.30$505.73 Ex. GST

Product Code: H85351/64 SKU H85351/64 Categories , ,
DORMER H85351/64 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 51/64″ with an overall length of 156.5mm and flute length of 73.5mm according to DORMER standard for 3xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 0.7717 up to 0.8071″

Additional information

Weight 0.5401 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760033135
Product number (SAP): 86018356
Ordering code ANSI: H85351/64
Product Line: HYDRA
Gross weight – grams: 495

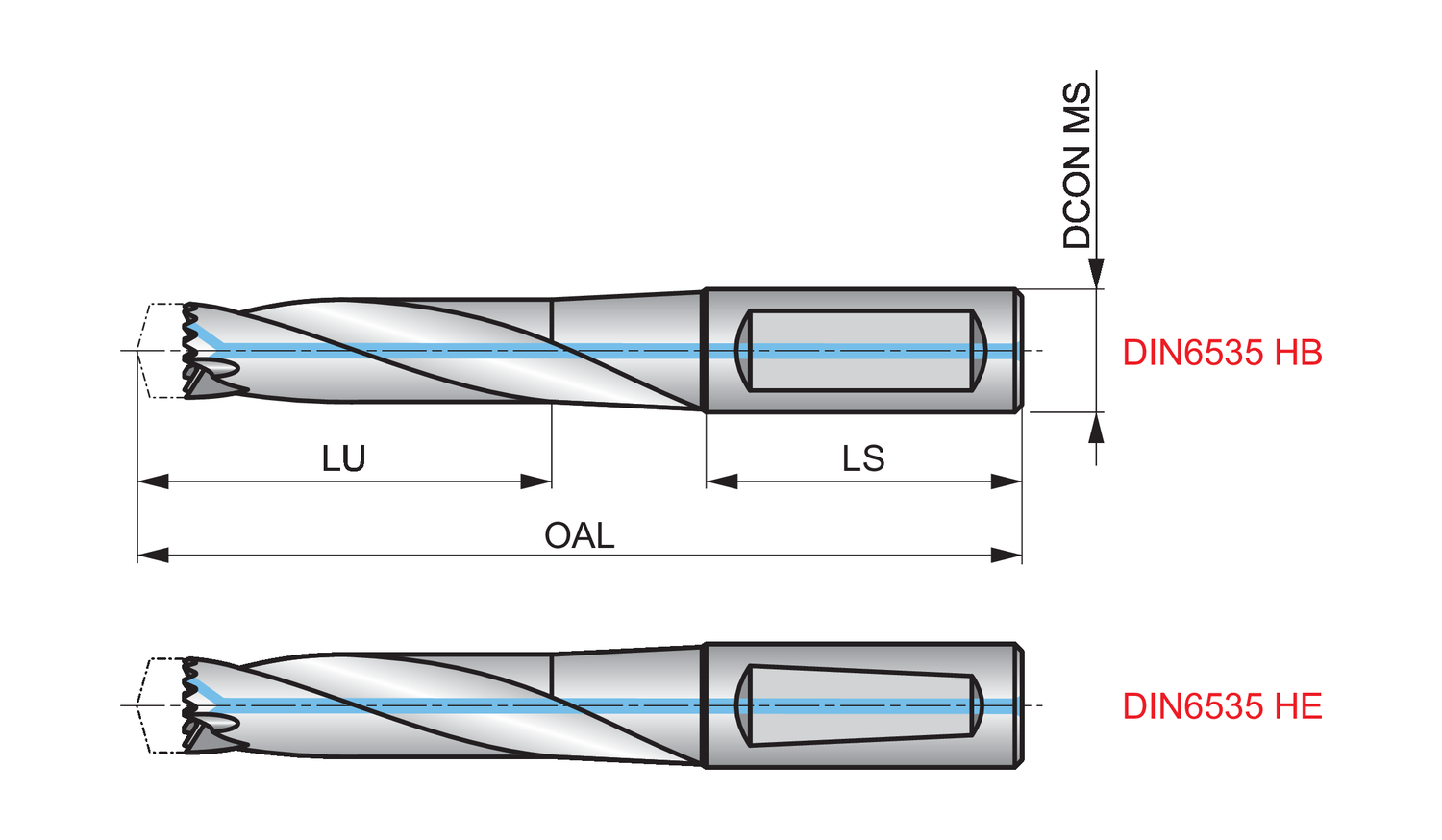

Connection diameter – fractional inch (DCON MS): 1"
Connection diameter – millimeter (DCON MS): 25.4 mm
Usable Length – millimeter (LU): 73.5 mm
Overall length – millimeter (OAL): 156.5 mm
Shank length – millimeter (LS): 56 mm
Connection norm (ADINTMS): DIN6535HB
ISO: H85351/64

Brand

DORMER
