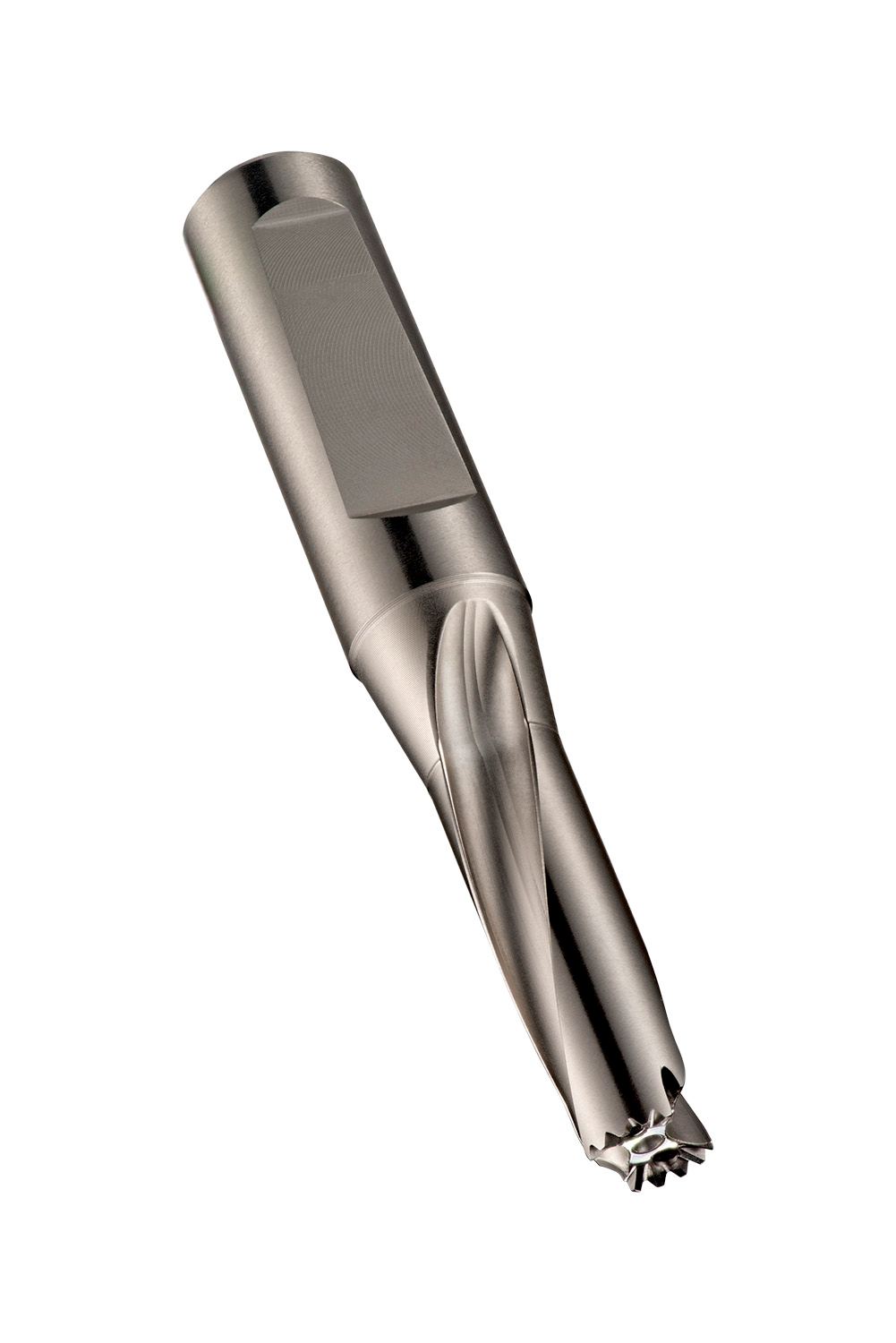

DORMER H85359/64 Hydra Body

Product Code: H85359/64

$668.47$607.70 Ex. GST

Product Code: H85359/64 SKU H85359/64 Categories , ,
DORMER H85359/64 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 59/64″ with an overall length of 160.5mm and flute length of 82.5mm according to DORMER standard for 3xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 0.9055 up to 0.9252″

Additional information

Weight 0.6490 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760033166
Product number (SAP): 86018358
Ordering code ANSI: H85359/64
Product Line: HYDRA
Gross weight – grams: 523

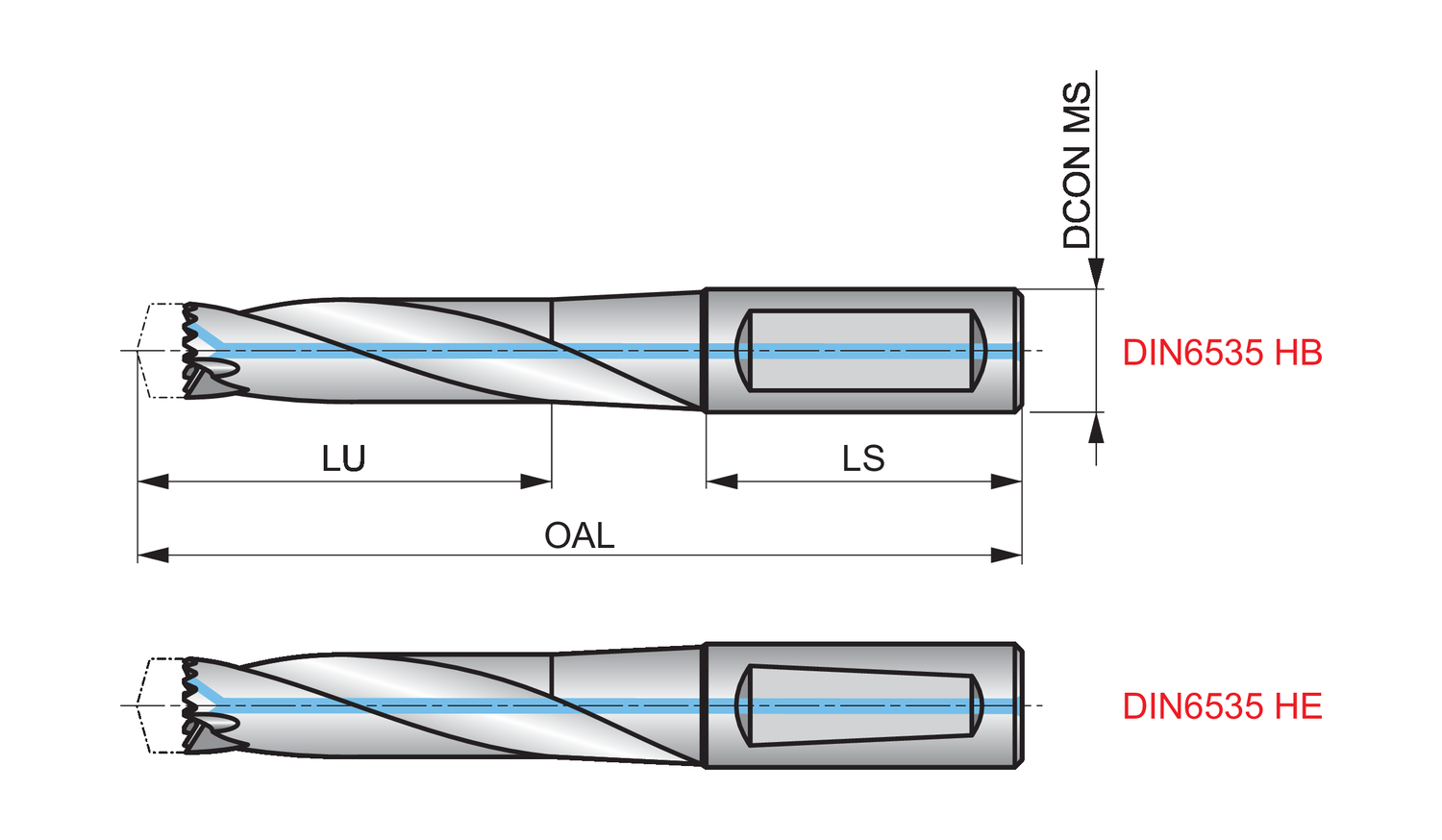

Connection diameter – fractional inch (DCON MS): 1"
Connection diameter – millimeter (DCON MS): 25.4 mm
Usable Length – millimeter (LU): 82.5 mm
Overall length – millimeter (OAL): 160.5 mm
Shank length – millimeter (LS): 56 mm
Connection norm (ADINTMS): DIN6535HB
ISO: H85359/64

Brand

DORMER
