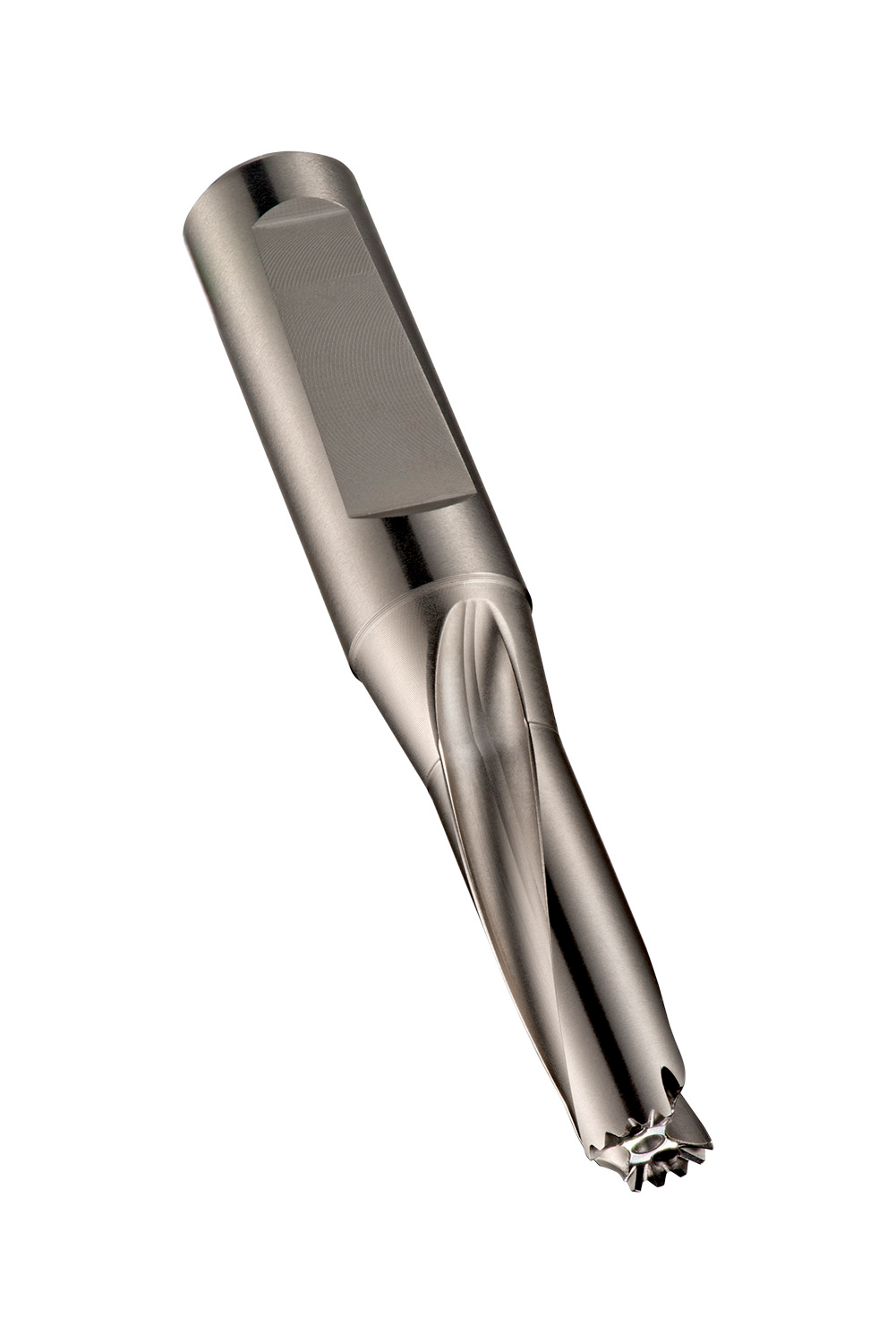

DORMER H8539/16 Hydra Body

Product Code: H8539/16

$515.52$468.65 Ex. GST

Product Code: H8539/16 SKU H8539/16 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 9/16″ with an overall length of 116.5mm and flute length of 52.5mm according to DORMER standard for 3xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 0.5315 up to 0.5709″

Additional information

Weight 0.5005 kg
Dimensions Length 11.65cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760033074
Product number (SAP): 86018359
Ordering code ANSI: H8539/16
Product Line: HYDRA
Gross weight – grams: 245.1

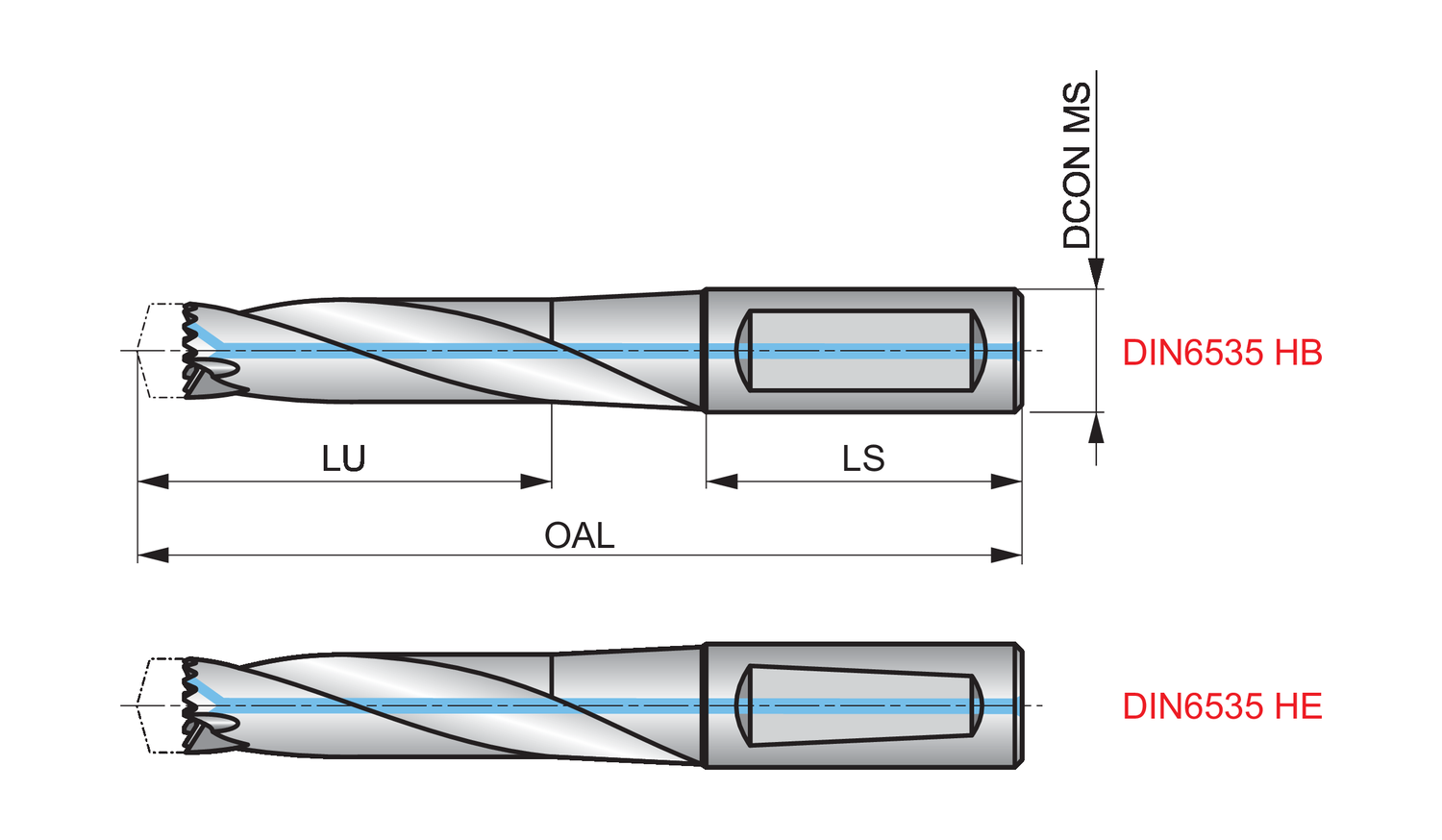

Connection diameter – fractional inch (DCON MS): 3/4
Connection diameter – millimeter (DCON MS): 19.05 mm
Usable Length – millimeter (LU): 52.5 mm
Overall length – millimeter (OAL): 116.5 mm
Shank length – millimeter (LS): 48 mm
Connection norm (ADINTMS): DIN6535HB
ISO: H8539/16

Brand

DORMER
