DORMER H85517/32 Hydra Body

Product Code: H85517/32

$576.70$524.27 Ex. GST

Product Code: H85517/32 SKU H85517/32 Categories , ,
DORMER H85517/32 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 17/32″ with an overall length of 140mm and flute length of 74mm according to DORMER standard for 5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 0.5118 up to 0.5313″ (7/32)

Additional information

Weight 0.5599 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760034132
Product number (SAP): 86018375
Ordering code ANSI: H85517/32
Product Line: HYDRA
Gross weight – grams: 179.5

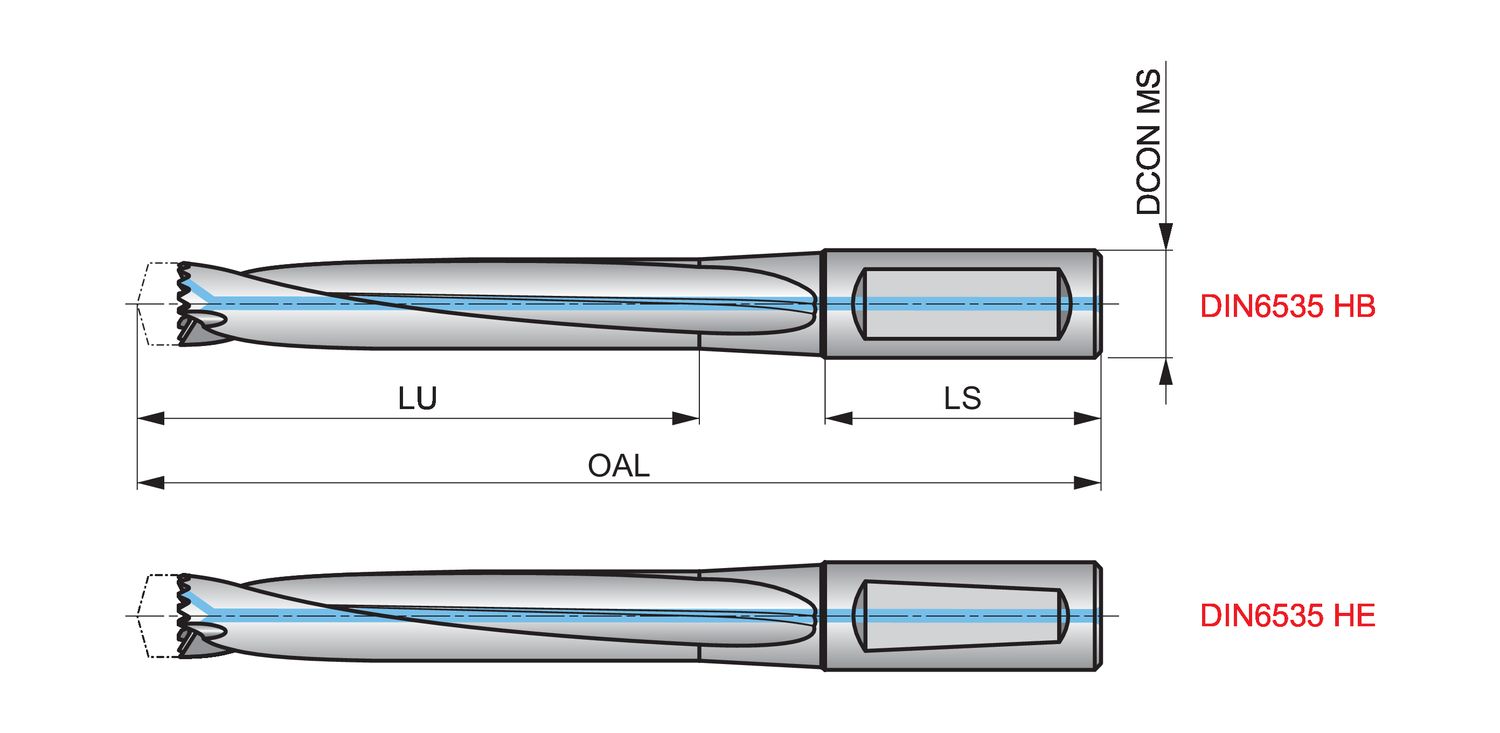

Connection diameter – fractional inch (DCON MS): 5/8
Connection diameter – millimeter (DCON MS): 15.88 mm
Usable Length – millimeter (LU): 74 mm
Overall length – millimeter (OAL): 140 mm
Shank length – millimeter (LS): 48 mm
Connection norm (ADINTMS): DIN6535HB
ISO: H85517/32

Brand

DORMER
