DORMER H85518.0 Hydra Body

Product Code: H85518.0

$591.43$537.66 Ex. GST

Product Code: H85518.0 SKU H85518.0 Categories , ,

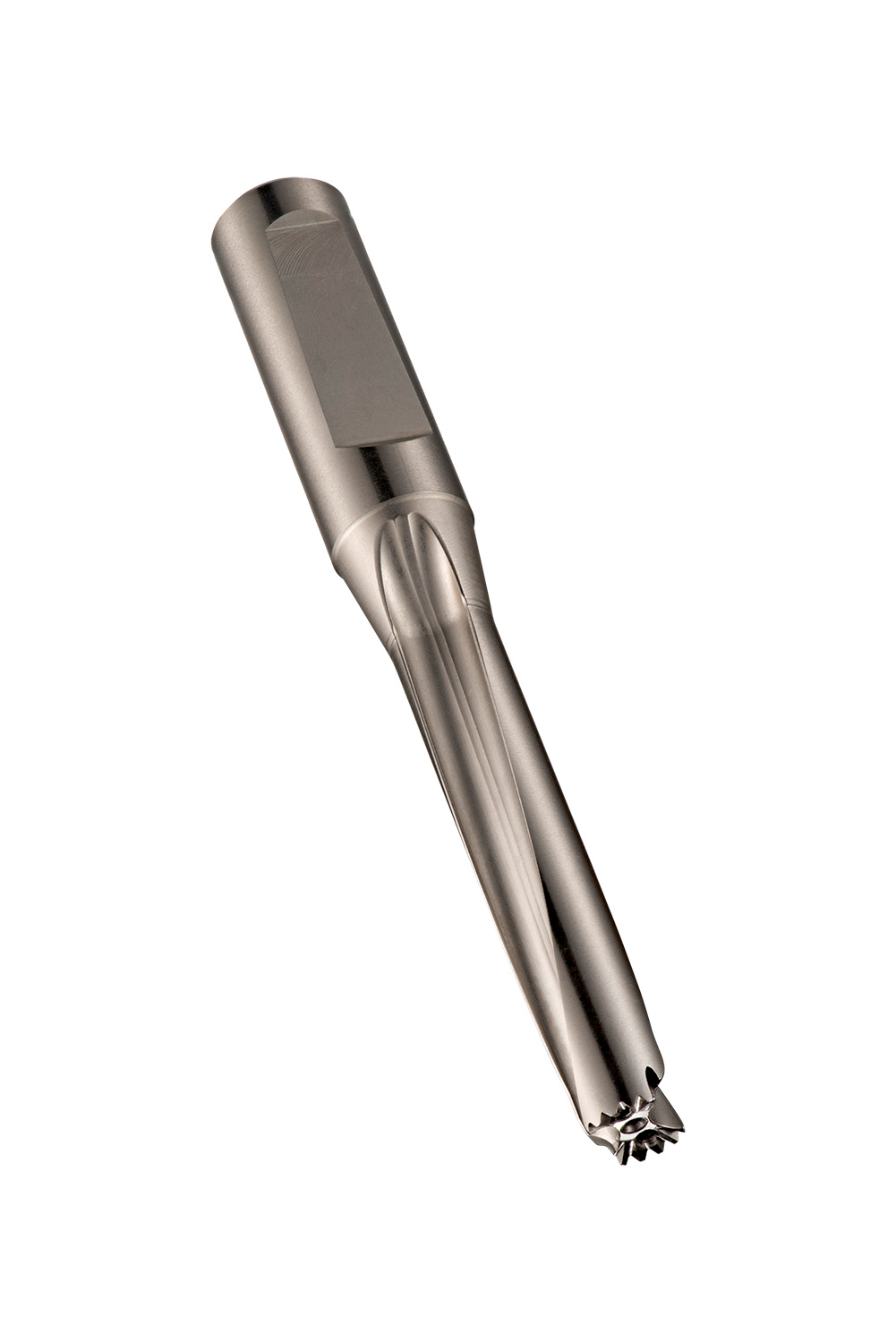

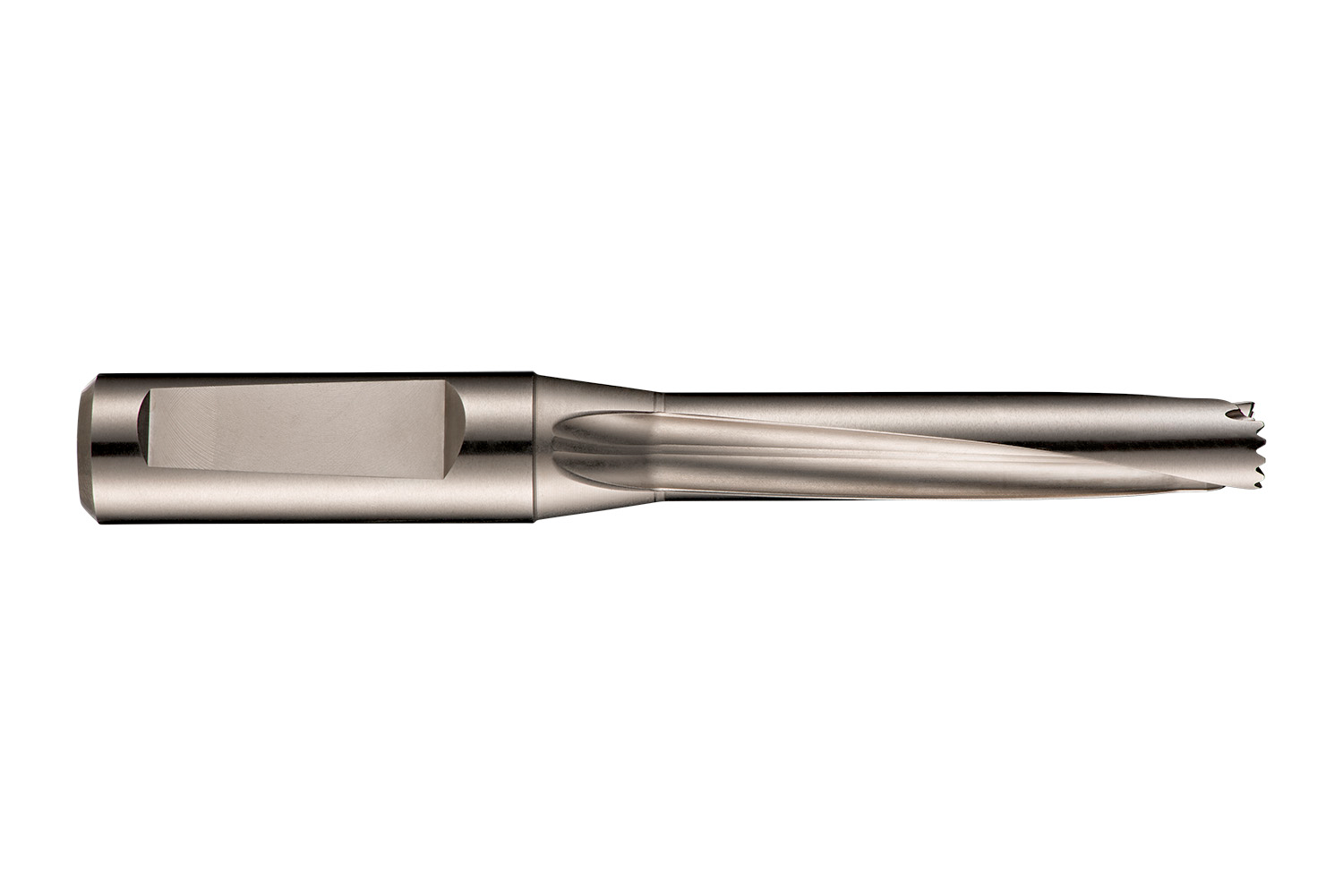

DORMER H85518.0 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 18.0mm with an overall length of 176.5mm and flute length of 103.5mm according to DORMER standard for 5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 17.6 up to 18.5mm

Additional information

Weight 0.5742 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760018538
Product number (SAP): 86018376
Ordering code ANSI: H85518.0
Product Line: HYDRA
Gross weight – grams: 351

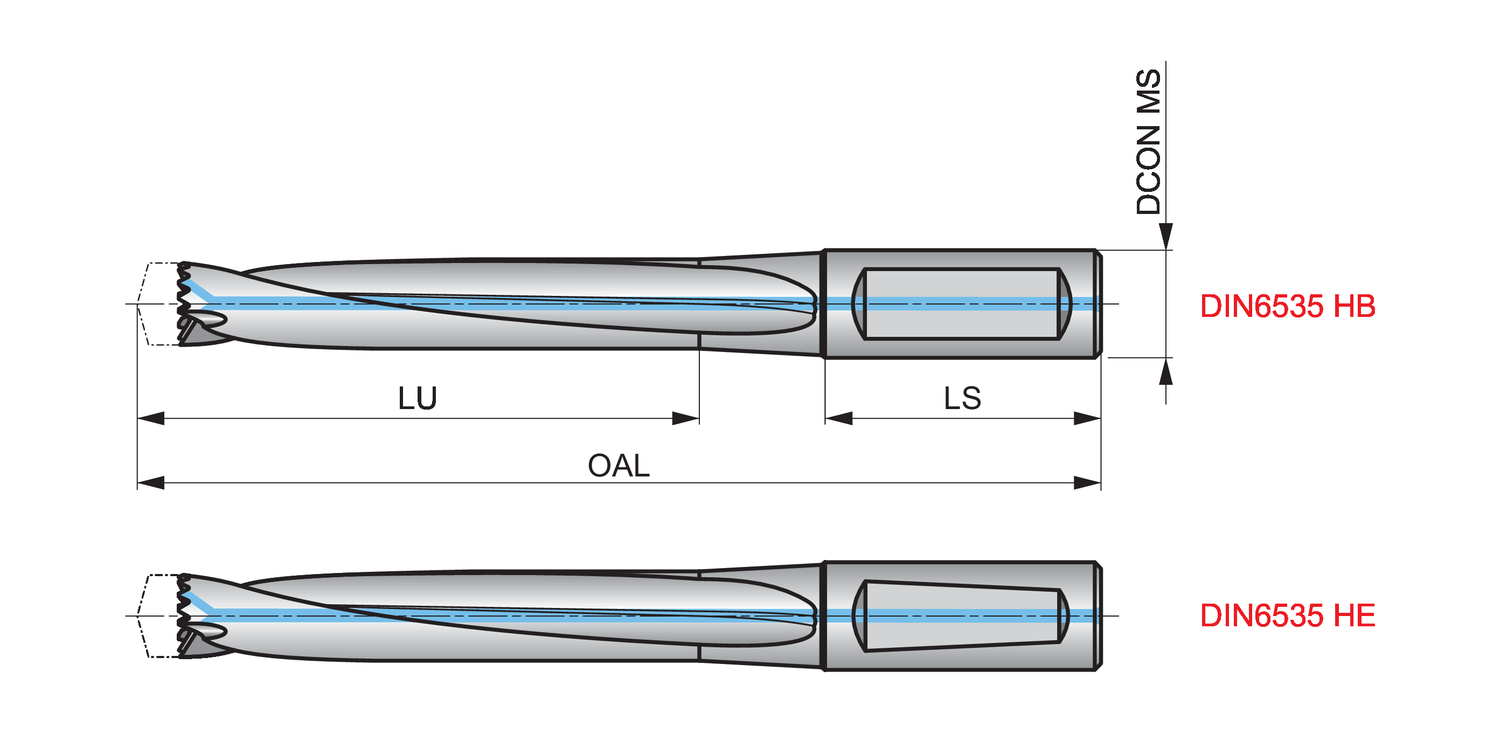

Connection diameter – millimeter (DCON MS): 20 mm
Usable Length – millimeter (LU): 103.5 mm
Overall length – millimeter (OAL): 176.5 mm
Shank length – millimeter (LS): 50 mm
Connection norm (ADINTMS): DIN6535HE
ISO: H85518.0

Brand

DORMER
