DORMER H85519.0 Hydra Body

Product Code: H85519.0

$636.75$578.86 Ex. GST

Product Code: H85519.0 SKU H85519.0 Categories , ,
DORMER H85519.0 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

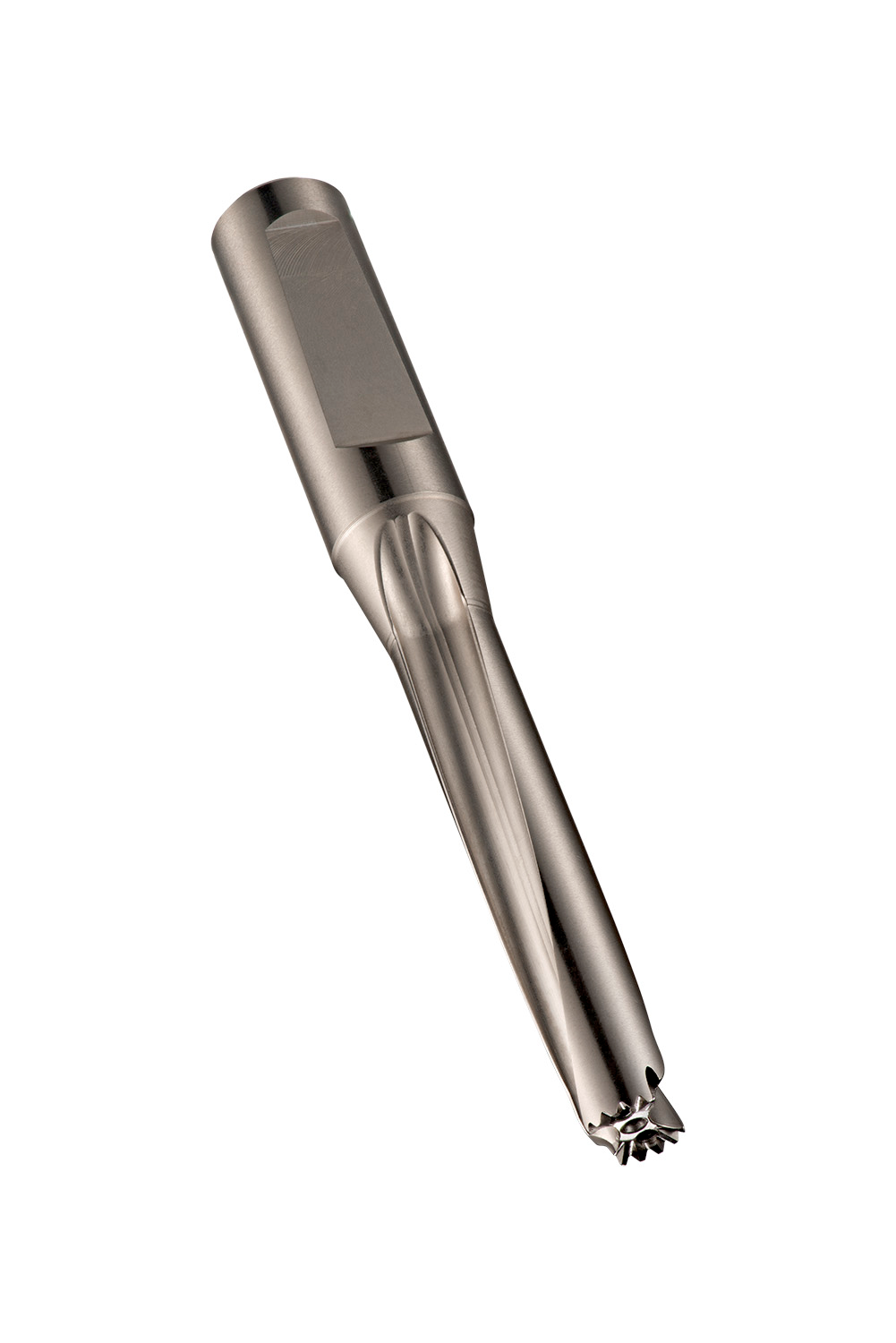

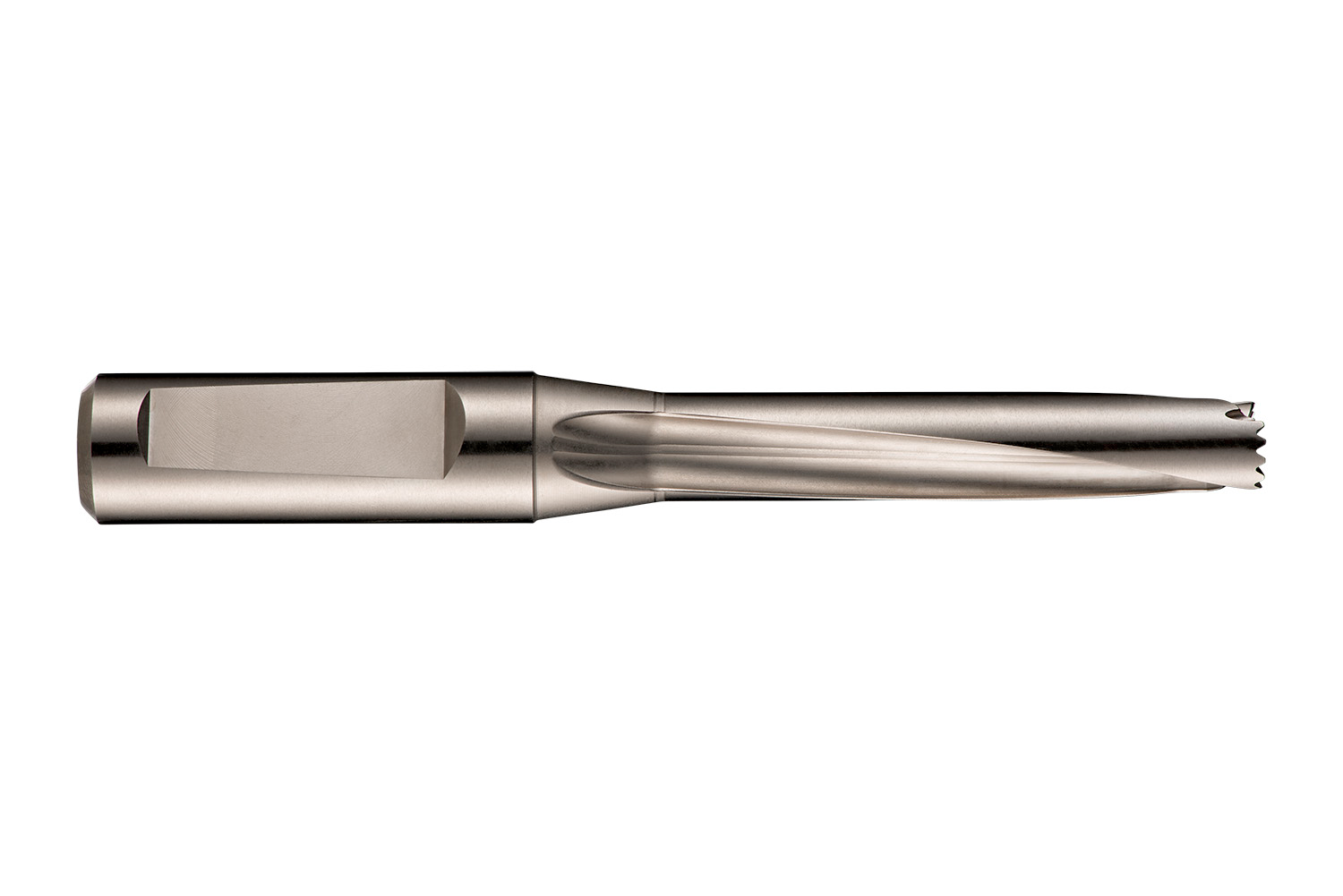

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 19.0mm with an overall length of 191.5mm and flute length of 108.5mm according to DORMER standard for 5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 18.6 up to 19.5mm

Additional information

Weight 0.6182 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760018545
Product number (SAP): 86018377
Ordering code ANSI: H85519.0
Product Line: HYDRA
Gross weight – grams: 492

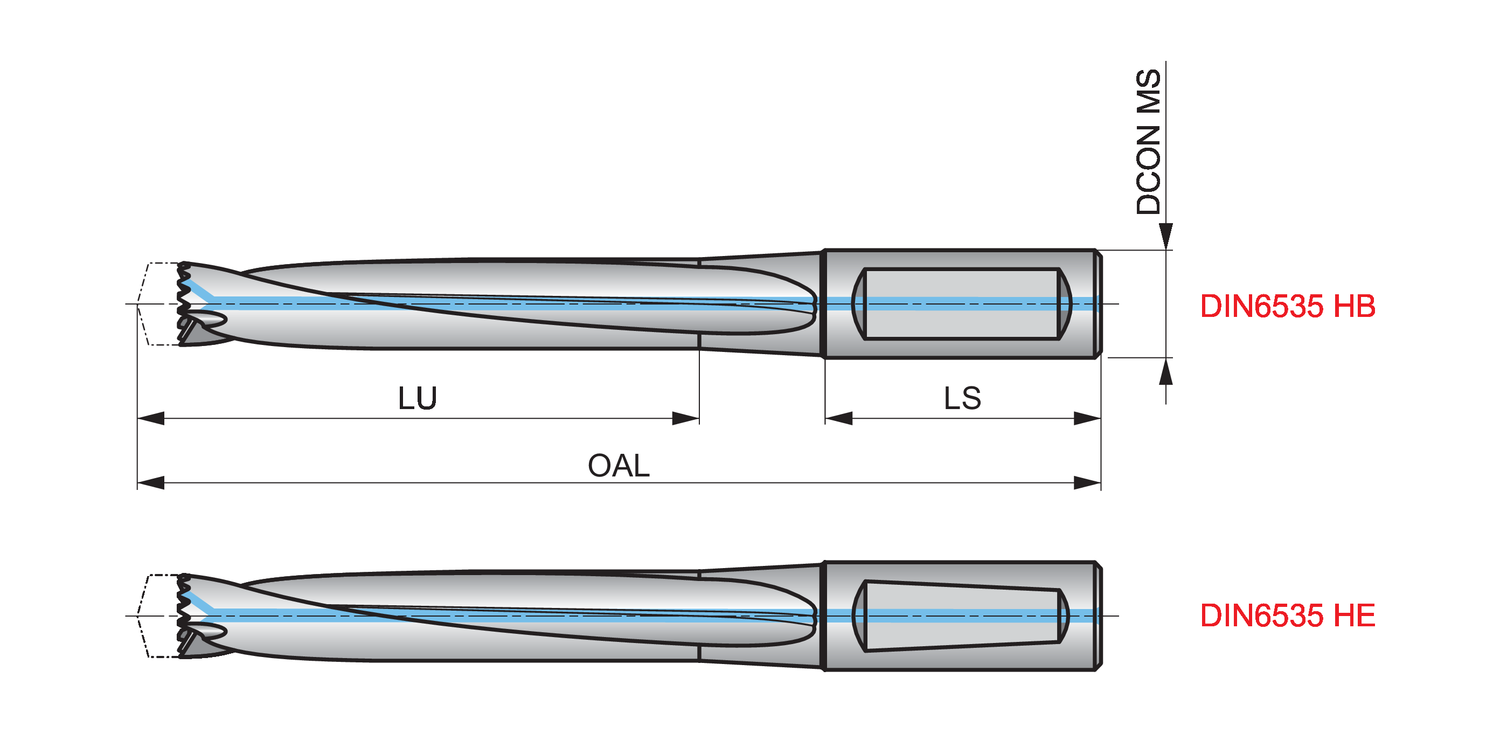

Connection diameter – millimeter (DCON MS): 25 mm
Usable Length – millimeter (LU): 108.5 mm
Overall length – millimeter (OAL): 191.5 mm
Shank length – millimeter (LS): 56 mm
Connection norm (ADINTMS): DIN6535HE
ISO: H85519.0

Brand

DORMER
