DORMER H85522.0 Hydra Body

Product Code: H85522.0

$697.93$634.48 Ex. GST

Product Code: H85522.0 SKU H85522.0 Categories , ,
DORMER H85522.0 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

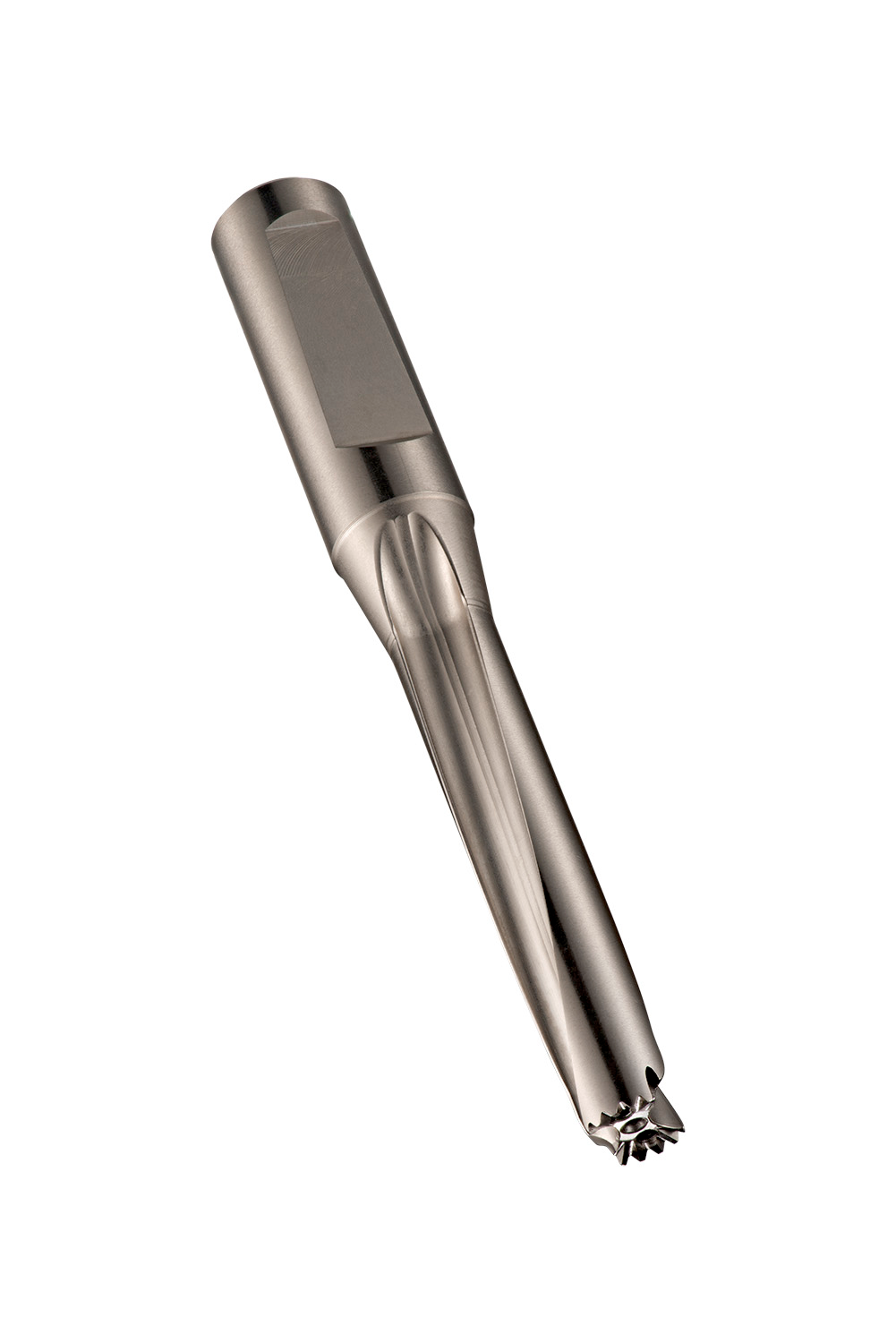

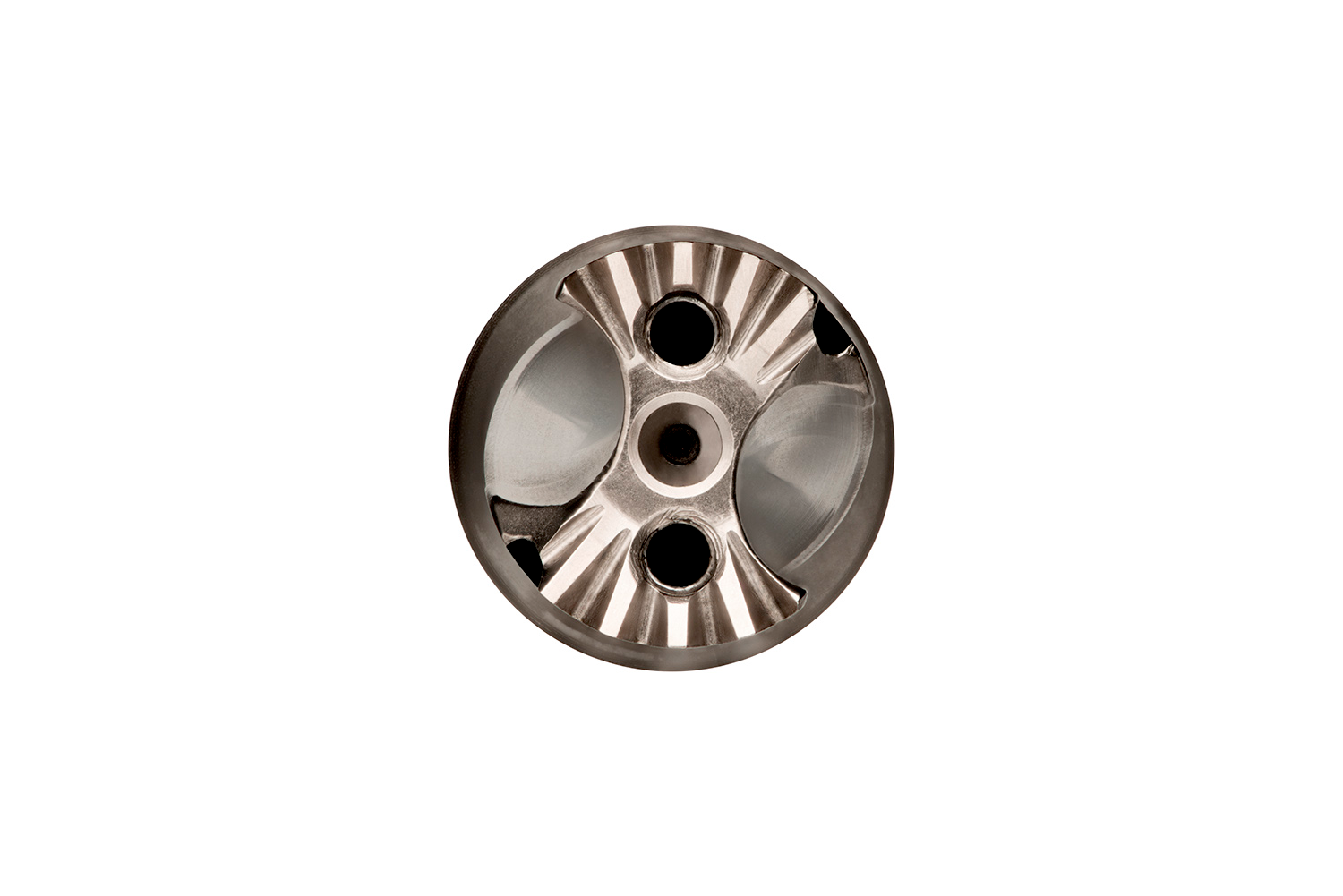

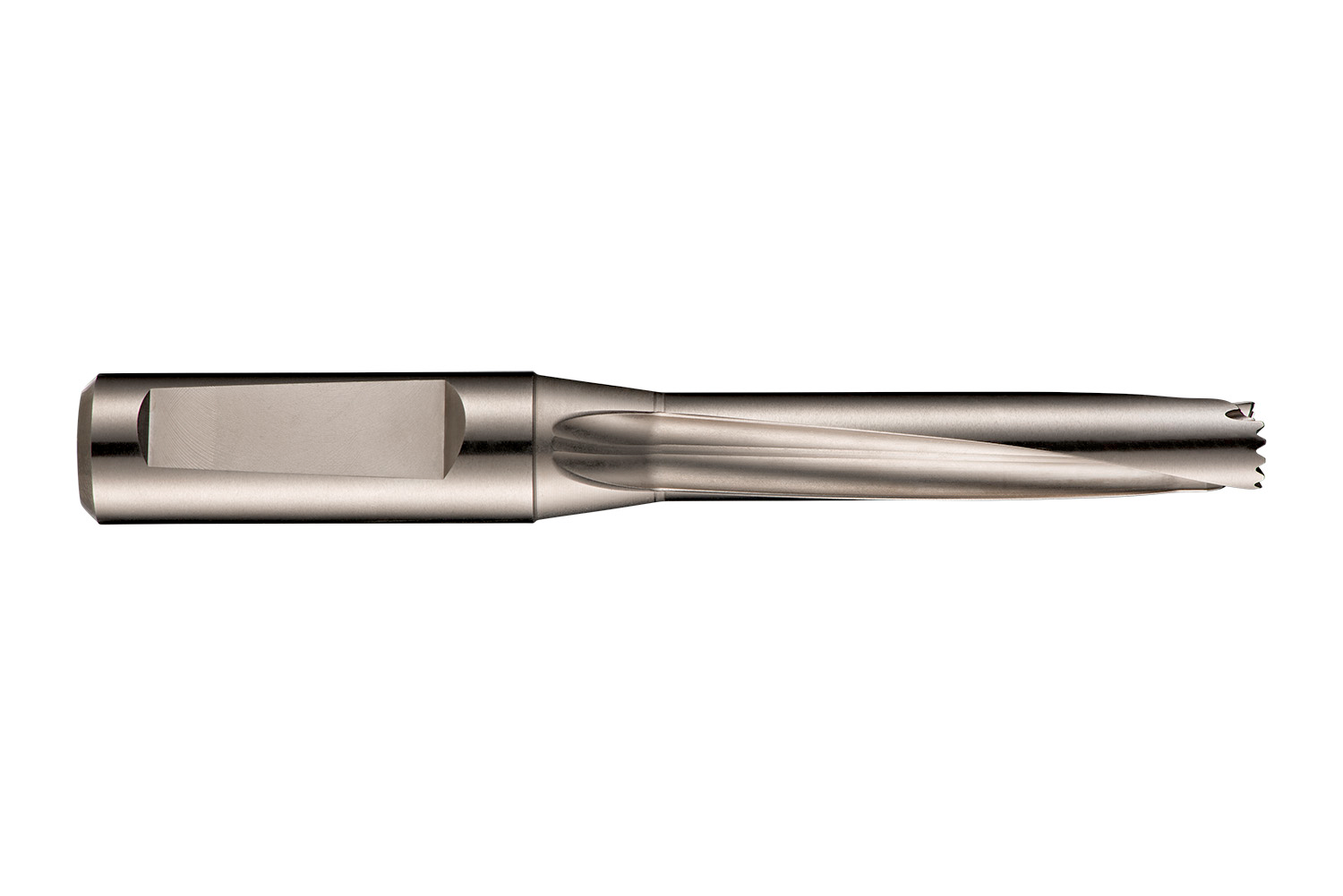

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 22.0mm with an overall length of 201.1mm and flute length of 125.1mm according to DORMER standard for 5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 21.83 up to 22.7mm

Additional information

Weight 0.6776 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760018576
Product number (SAP): 86018380
Ordering code ANSI: H85522.0
Product Line: HYDRA
Gross weight – grams: 543.1

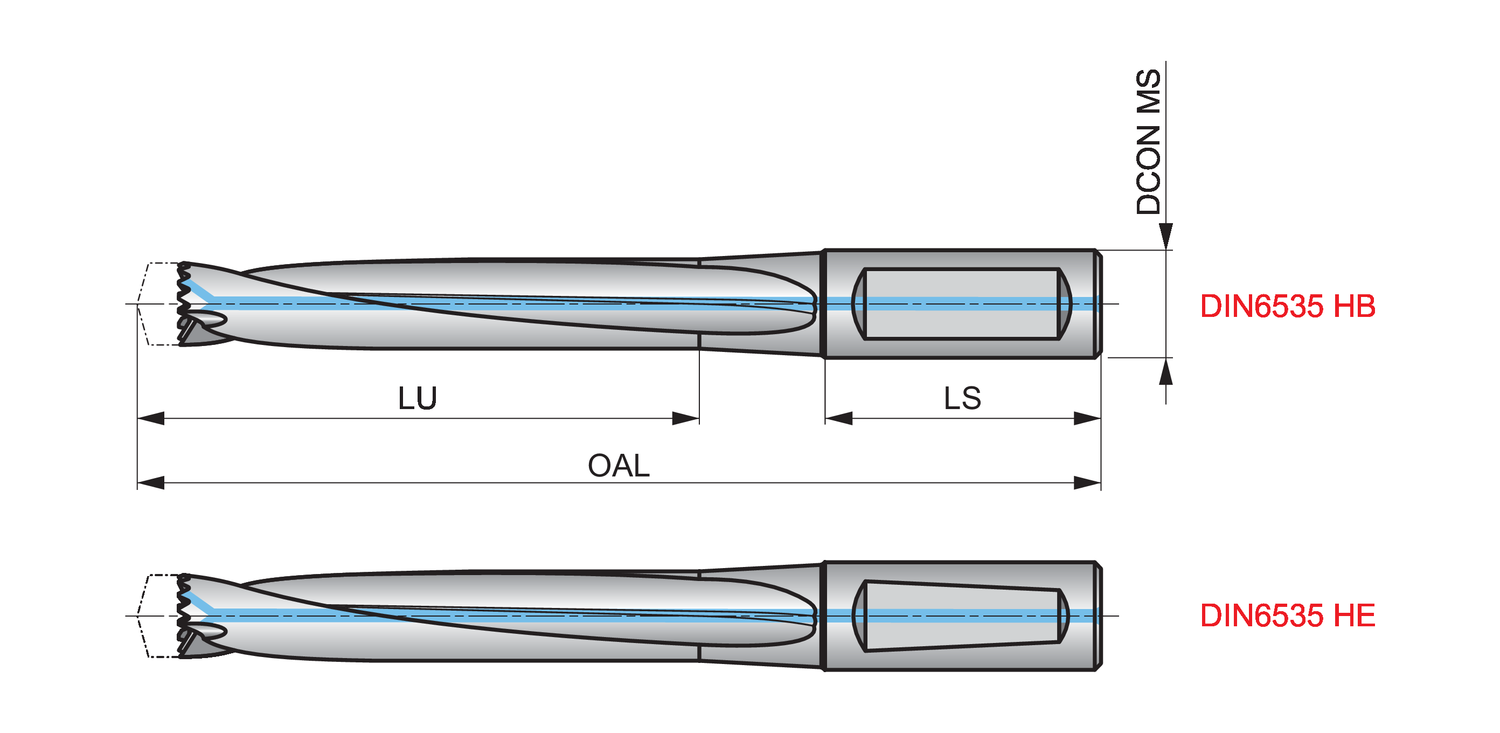

Connection diameter – millimeter (DCON MS): 25 mm
Usable Length – millimeter (LU): 125.1 mm
Overall length – millimeter (OAL): 201.1 mm
Shank length – millimeter (LS): 56 mm
Connection norm (ADINTMS): DIN6535HE
ISO: H85522.0

Brand

DORMER
