DORMER H85526.0 Hydra Body

Product Code: H85526.0

$772.71$702.46 Ex. GST

Product Code: H85526.0 SKU H85526.0 Categories , ,
DORMER H85526.0 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

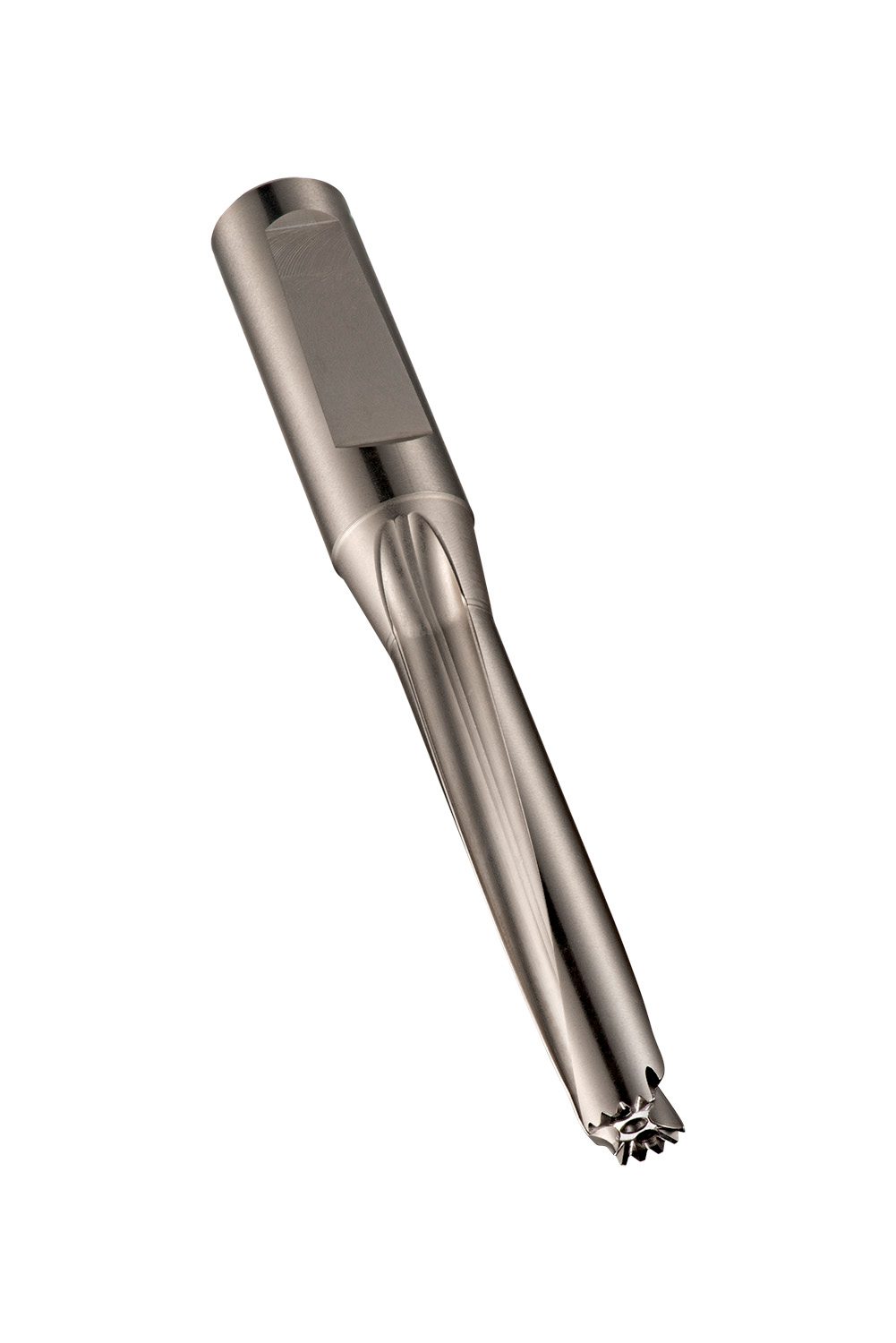

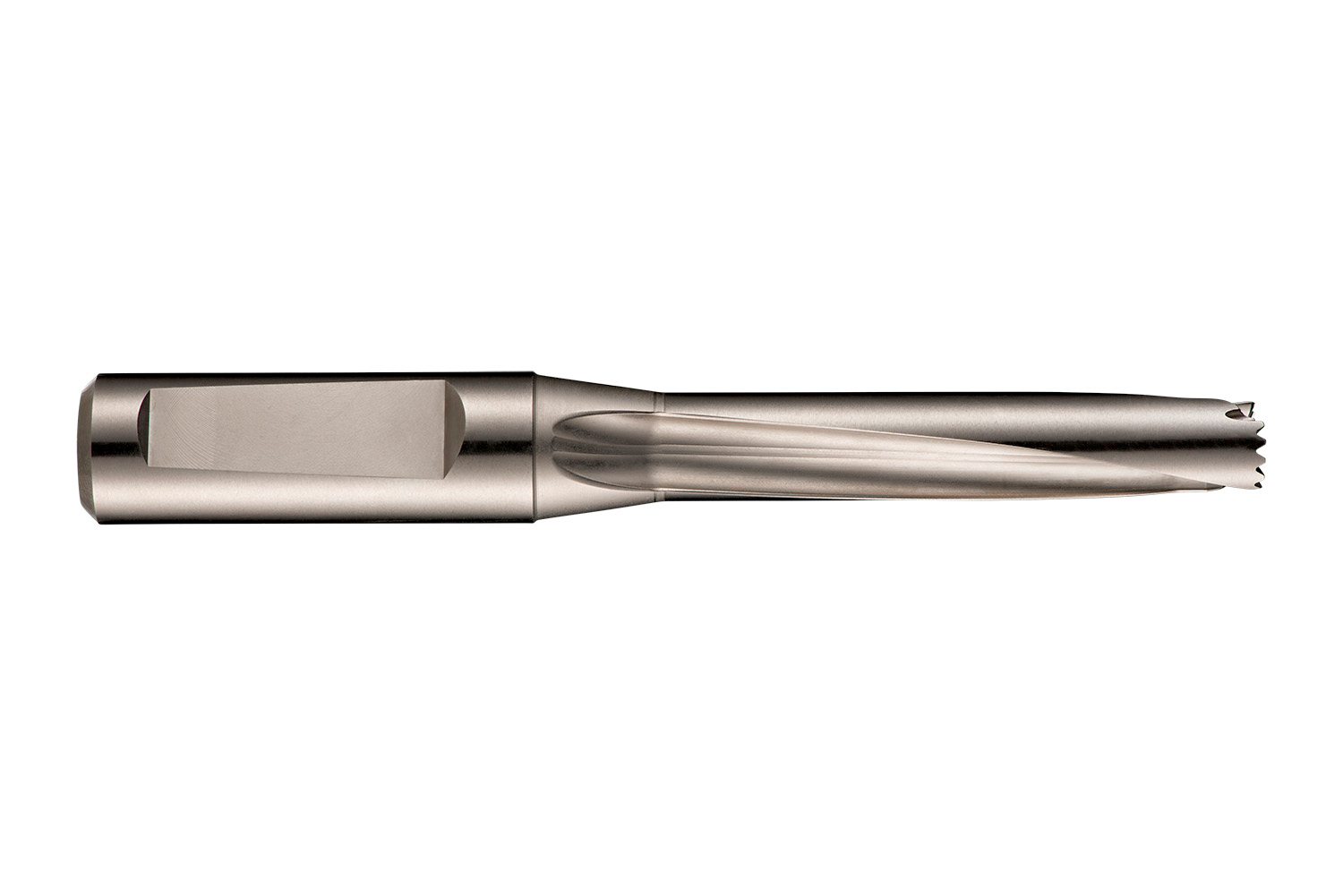

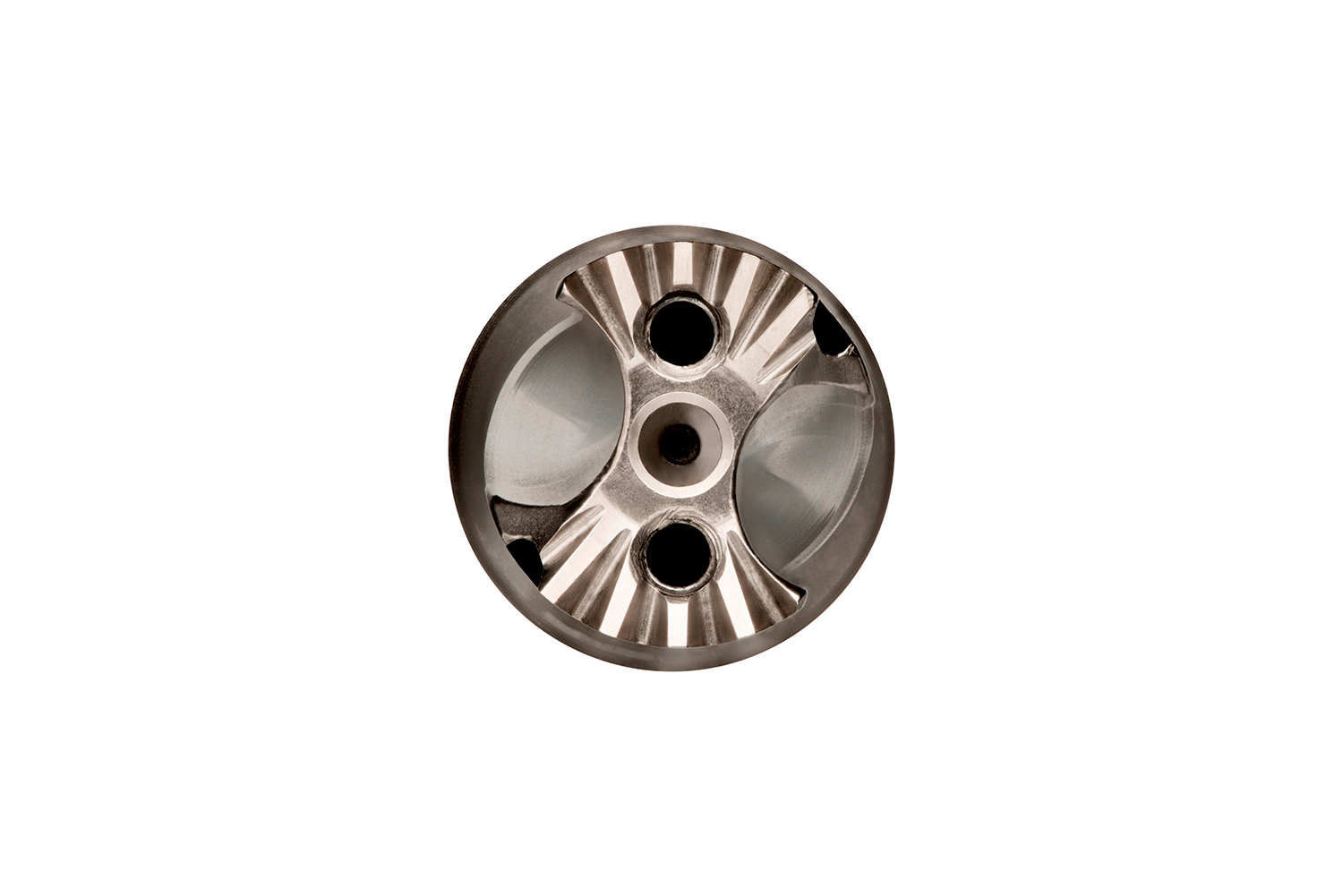

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 26.0mm with an overall length of 230mm and flute length of 146mm according to DORMER standard for 5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 26 up to 26.59mm

Additional information

Weight 0.7502 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760018613
Product number (SAP): 86018385
Ordering code ANSI: H85526.0
Product Line: HYDRA
Gross weight – grams: 895.8

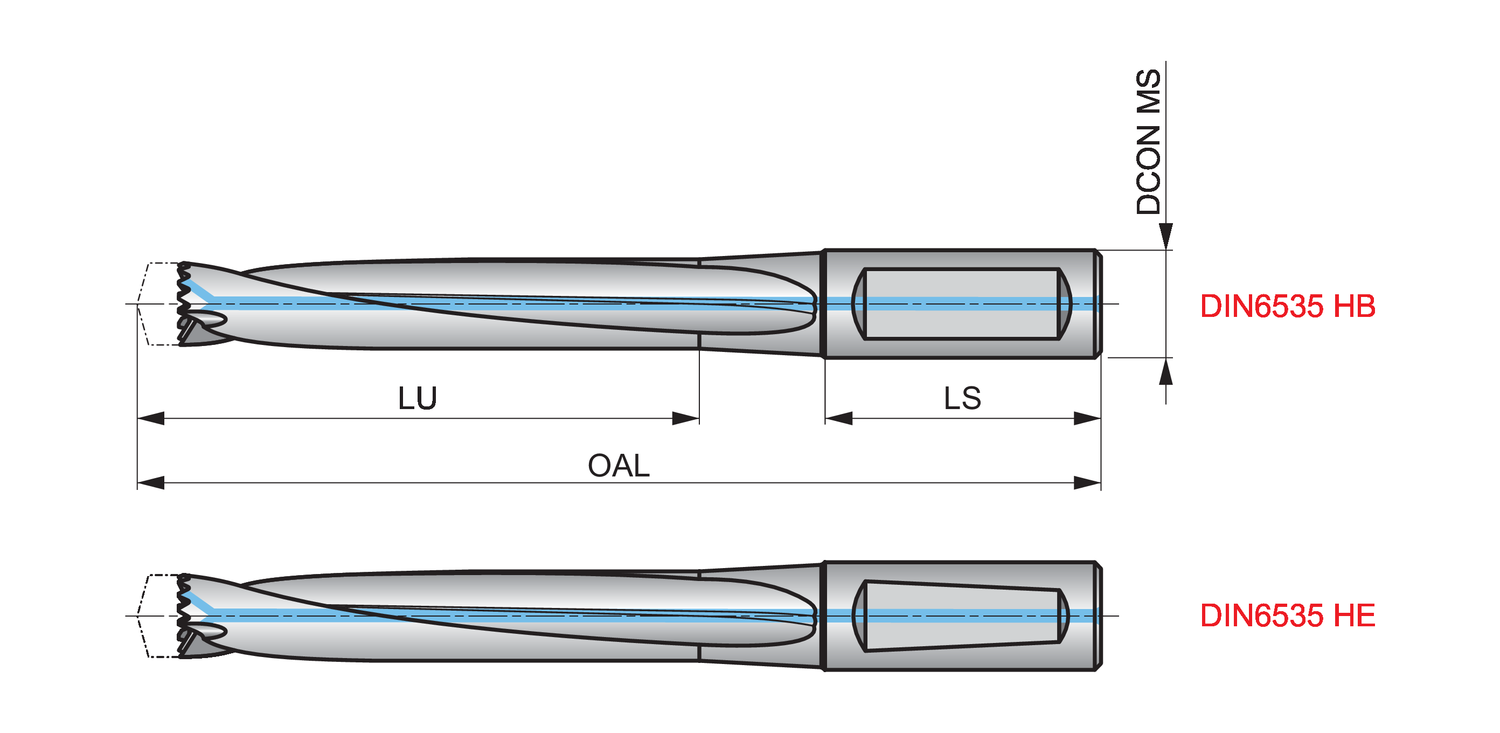

Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 146 mm
Overall length – millimeter (OAL): 230 mm
Shank length – millimeter (LS): 60 mm
Connection norm (ADINTMS): DIN6535HE
ISO: H85526.0

Brand

DORMER
