DORMER H85527.0 Hydra Body

Product Code: H85527.0

$830.49$754.99 Ex. GST

Product Code: H85527.0 SKU H85527.0 Categories , ,
DORMER H85527.0 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

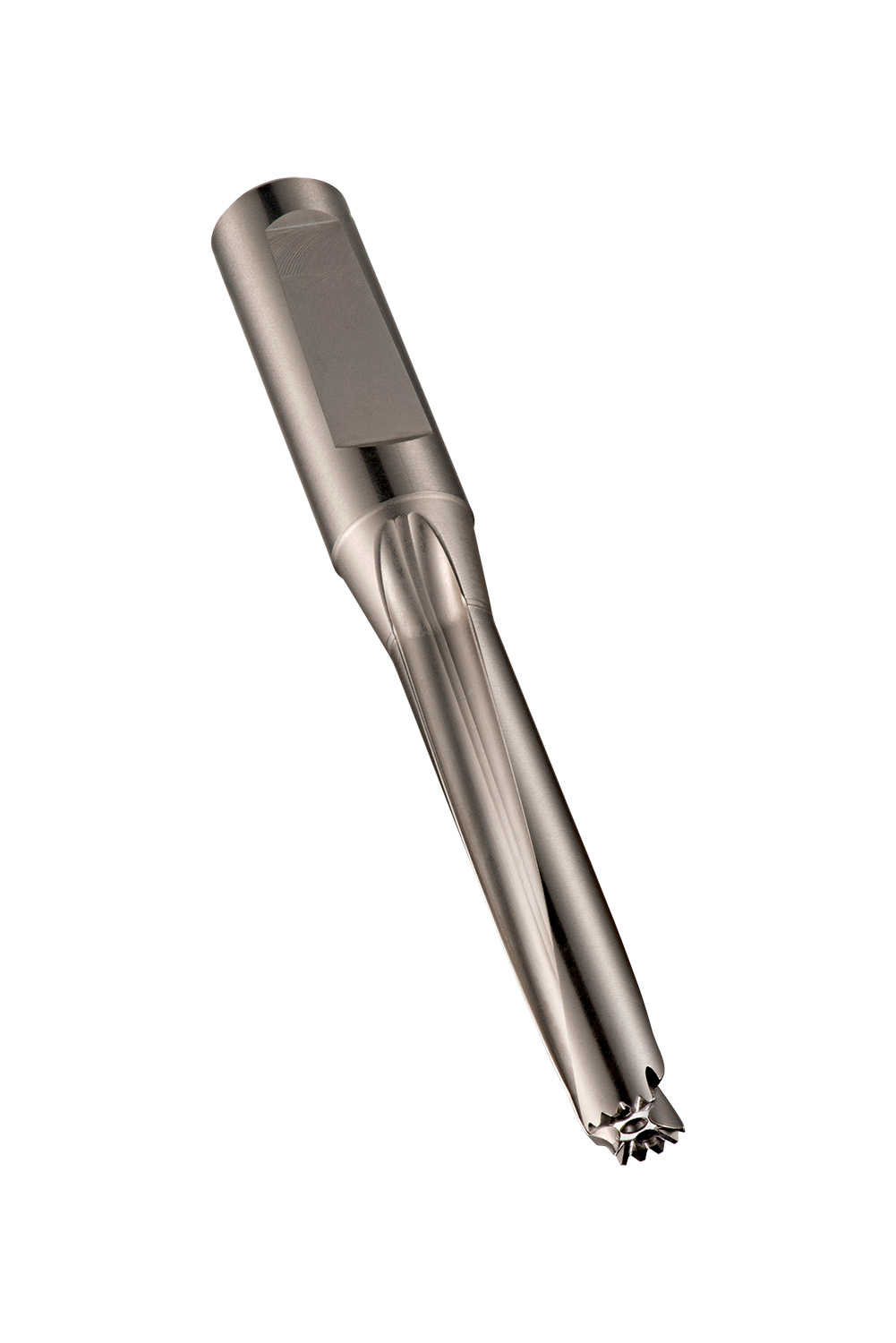

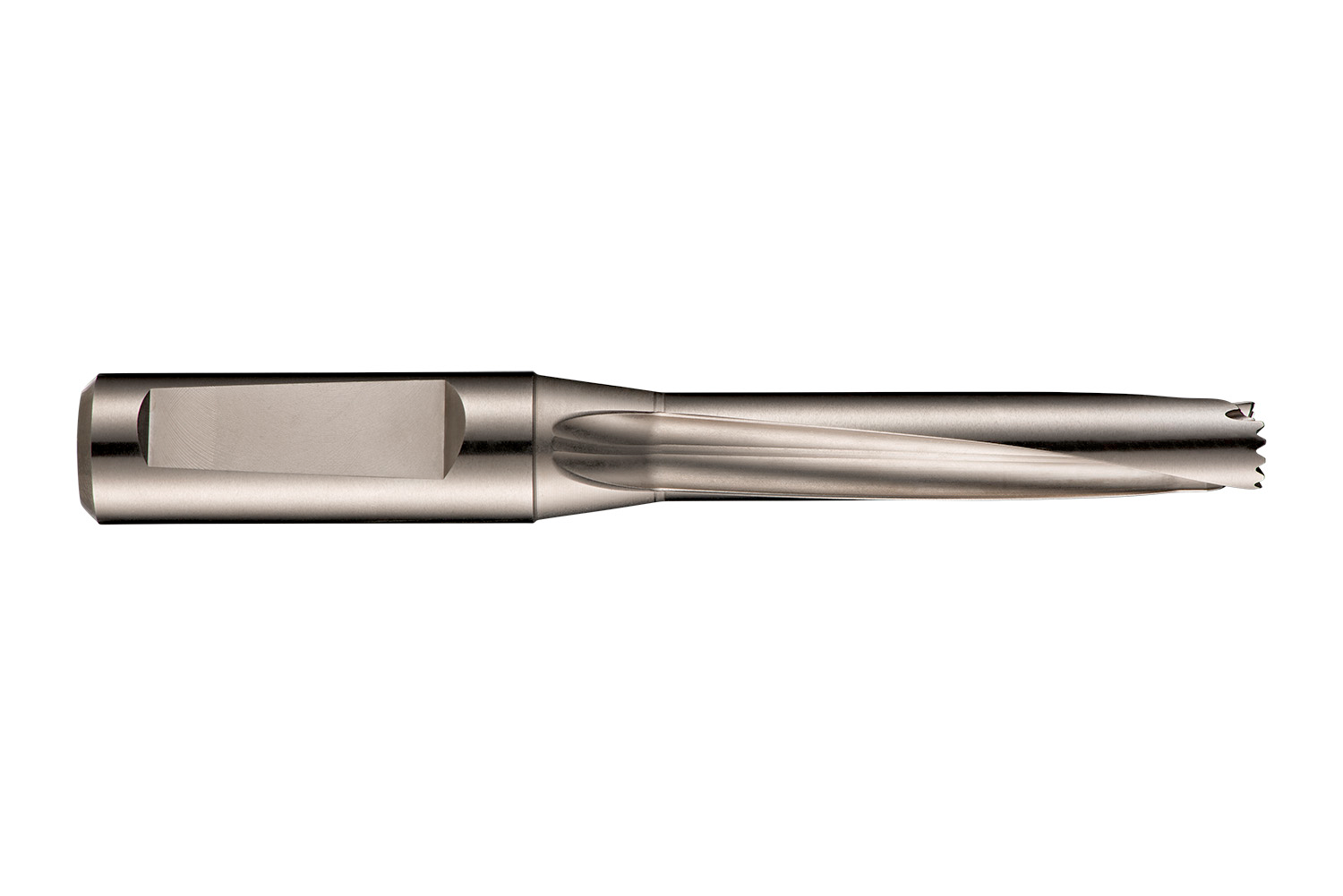

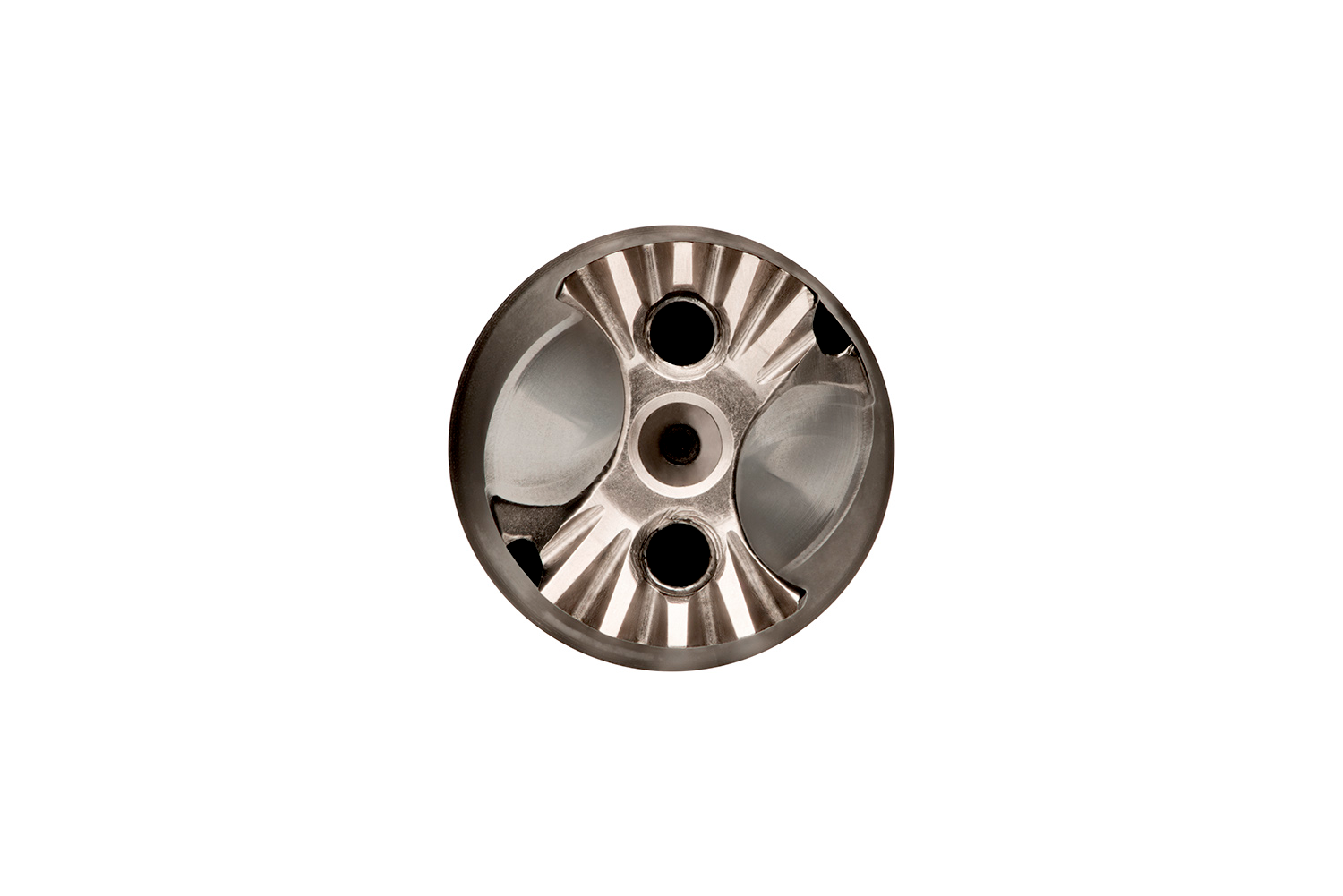

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 27.0mm with an overall length of 235mm and flute length of 151mm according to DORMER standard for 5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 26.99 up to 27.78mm

Additional information

Weight 0.8063 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760018620
Product number (SAP): 86018386
Ordering code ANSI: H85527.0
Product Line: HYDRA
Gross weight – grams: 930.7

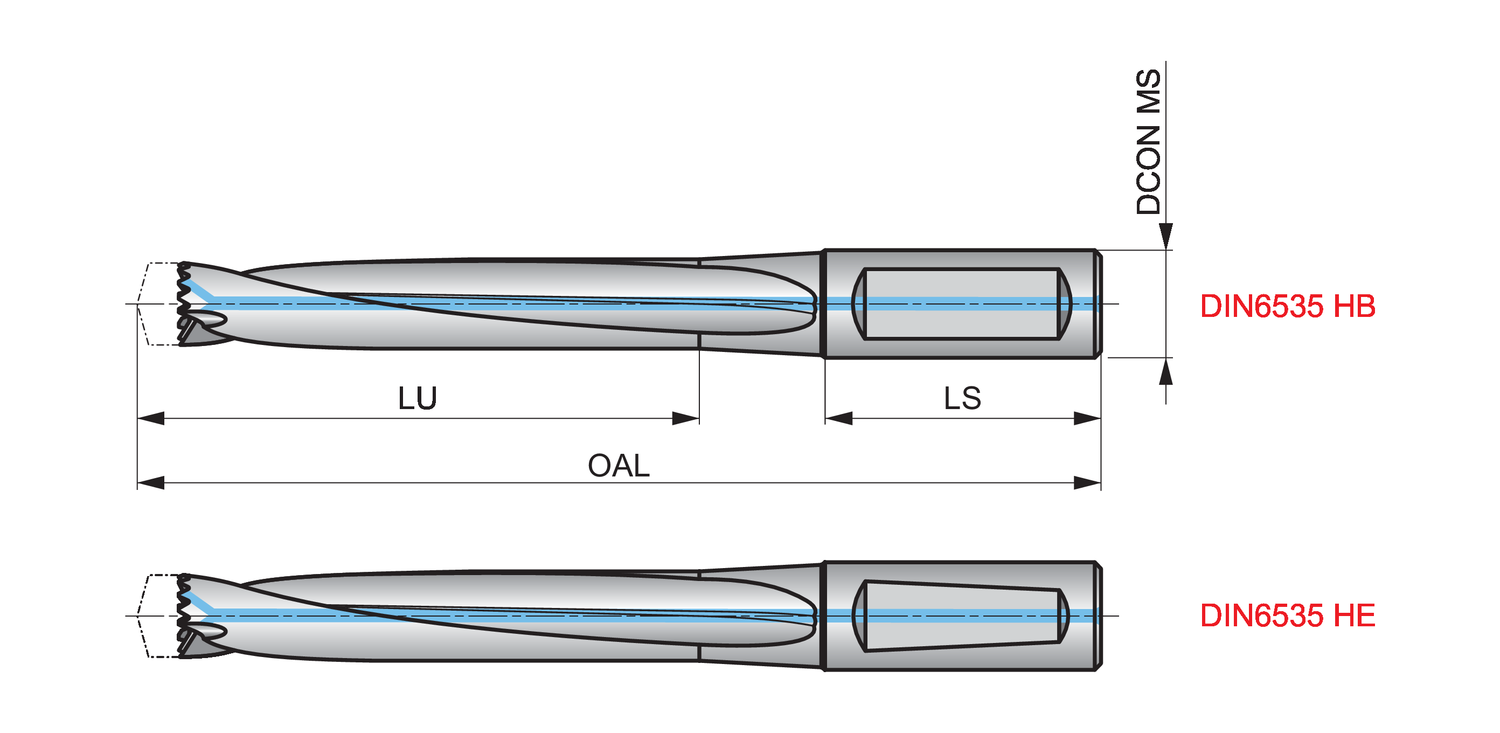

Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 151 mm
Overall length – millimeter (OAL): 235 mm
Shank length – millimeter (LS): 60 mm
Connection norm (ADINTMS): DIN6535HE
ISO: H85527.0

Brand

DORMER
