DORMER H85528.0 Hydra Body

Product Code: H85528.0

$830.49$754.99 Ex. GST

Product Code: H85528.0 SKU H85528.0 Categories , ,
DORMER H85528.0 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

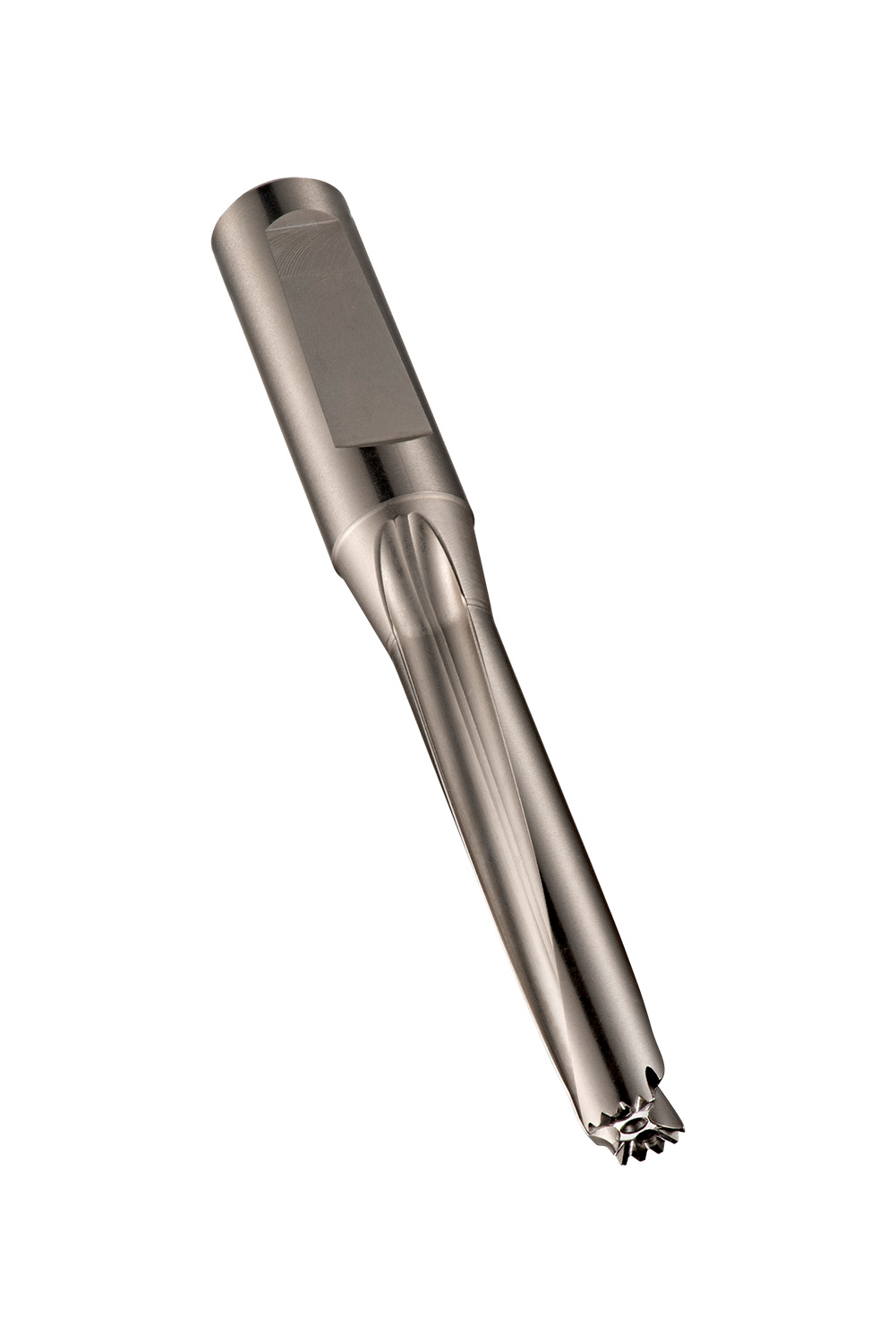

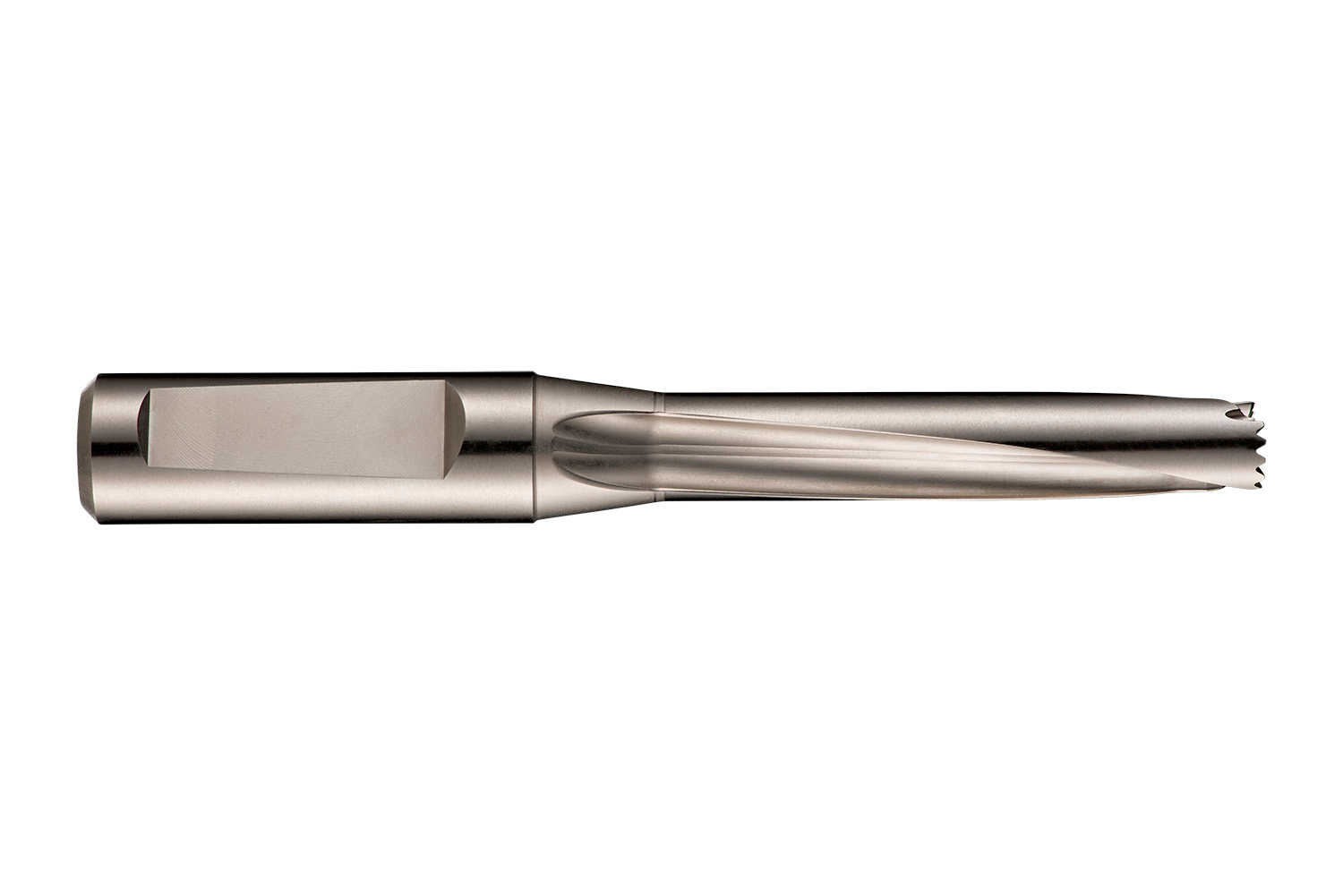

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 28.0mm with an overall length of 240mm and flute length of 157mm according to DORMER standard for 5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 28 up to 28.58mm

Additional information

Weight 0.8063 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760018637
Product number (SAP): 86018388
Ordering code ANSI: H85528.0
Product Line: HYDRA
Gross weight – grams: 968.2

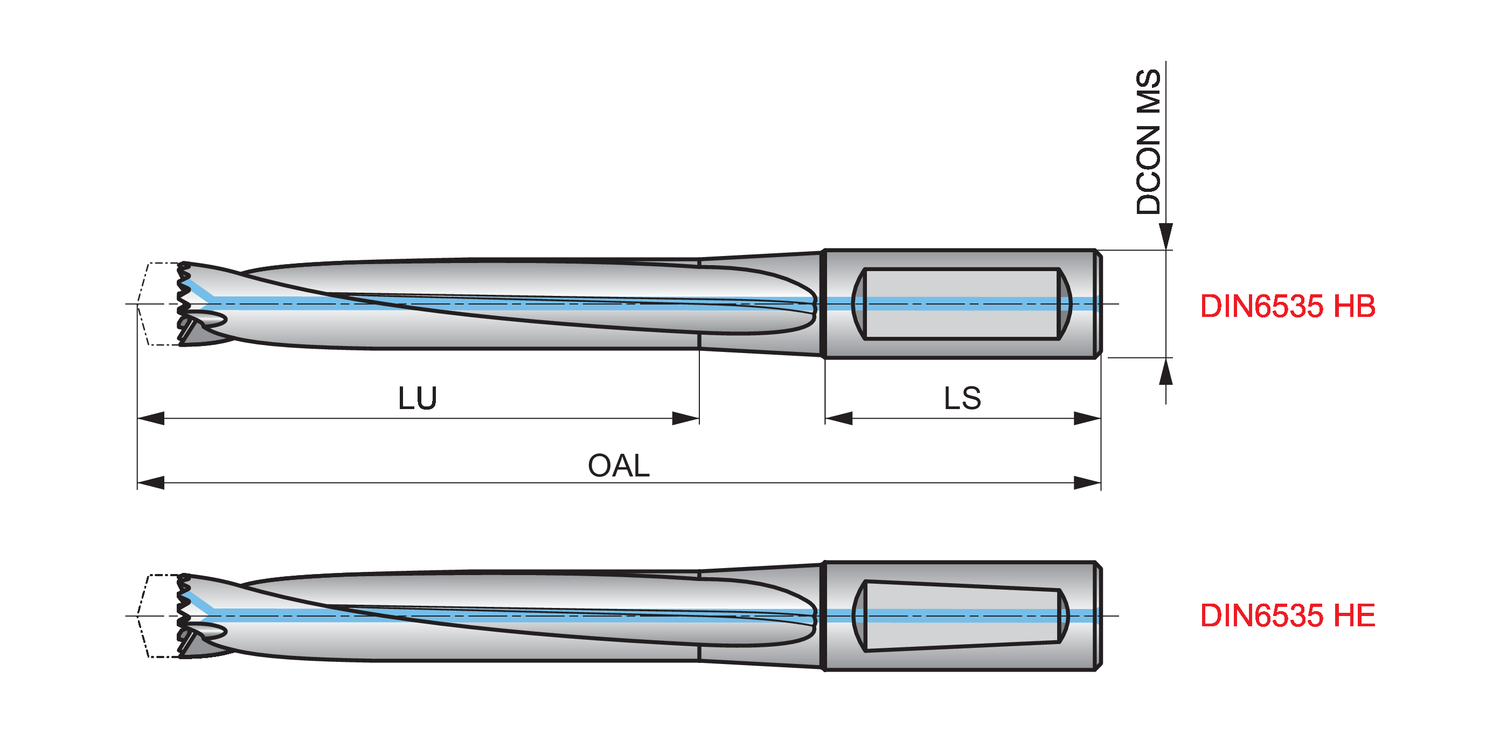

Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 157 mm
Overall length – millimeter (OAL): 240 mm
Shank length – millimeter (LS): 60 mm
Connection norm (ADINTMS): DIN6535HE
ISO: H85528.0

Brand

DORMER
