DORMER H85531/64 Hydra Body

Product Code: H85531/64

$565.37$513.97 Ex. GST

Product Code: H85531/64 SKU H85531/64 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

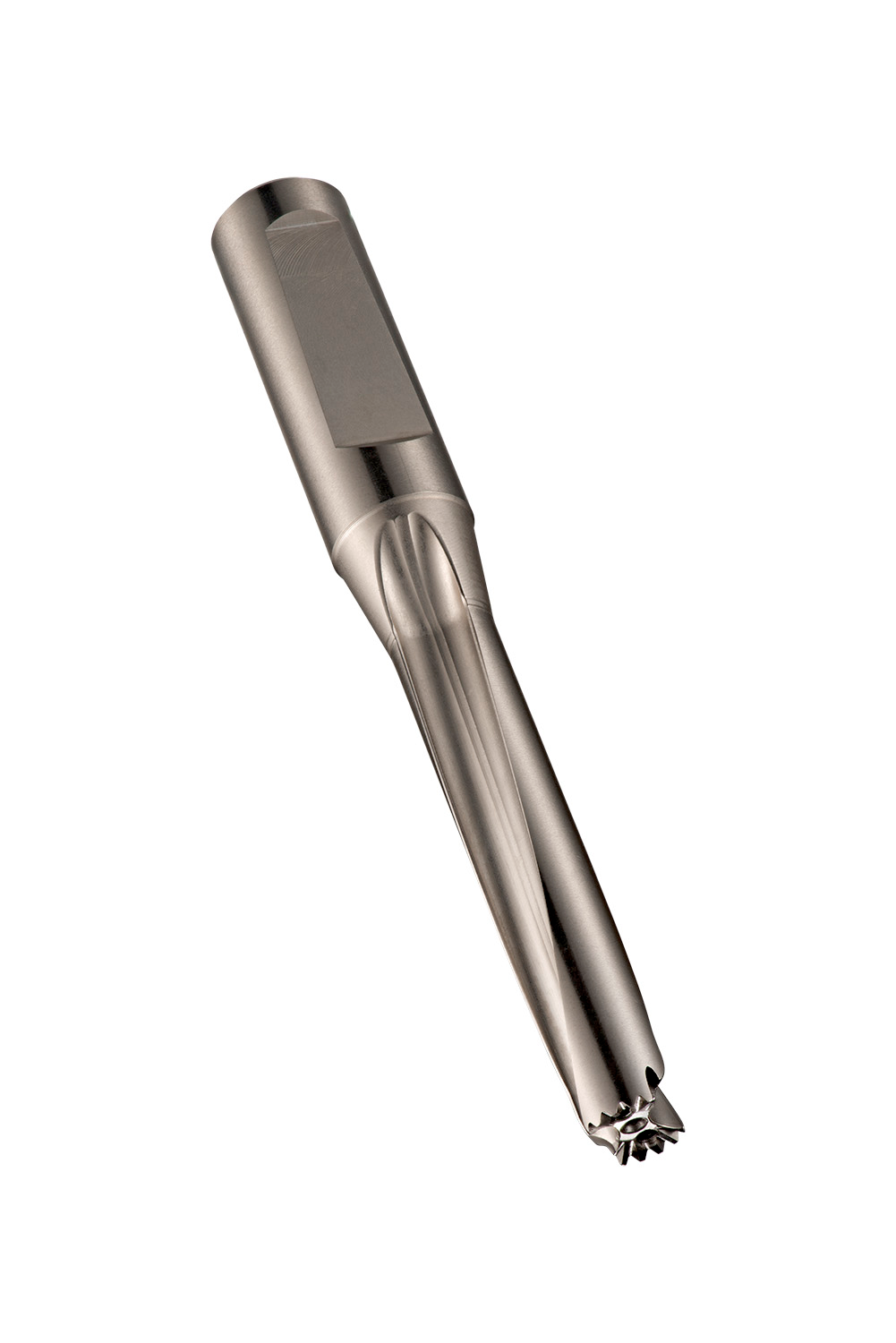

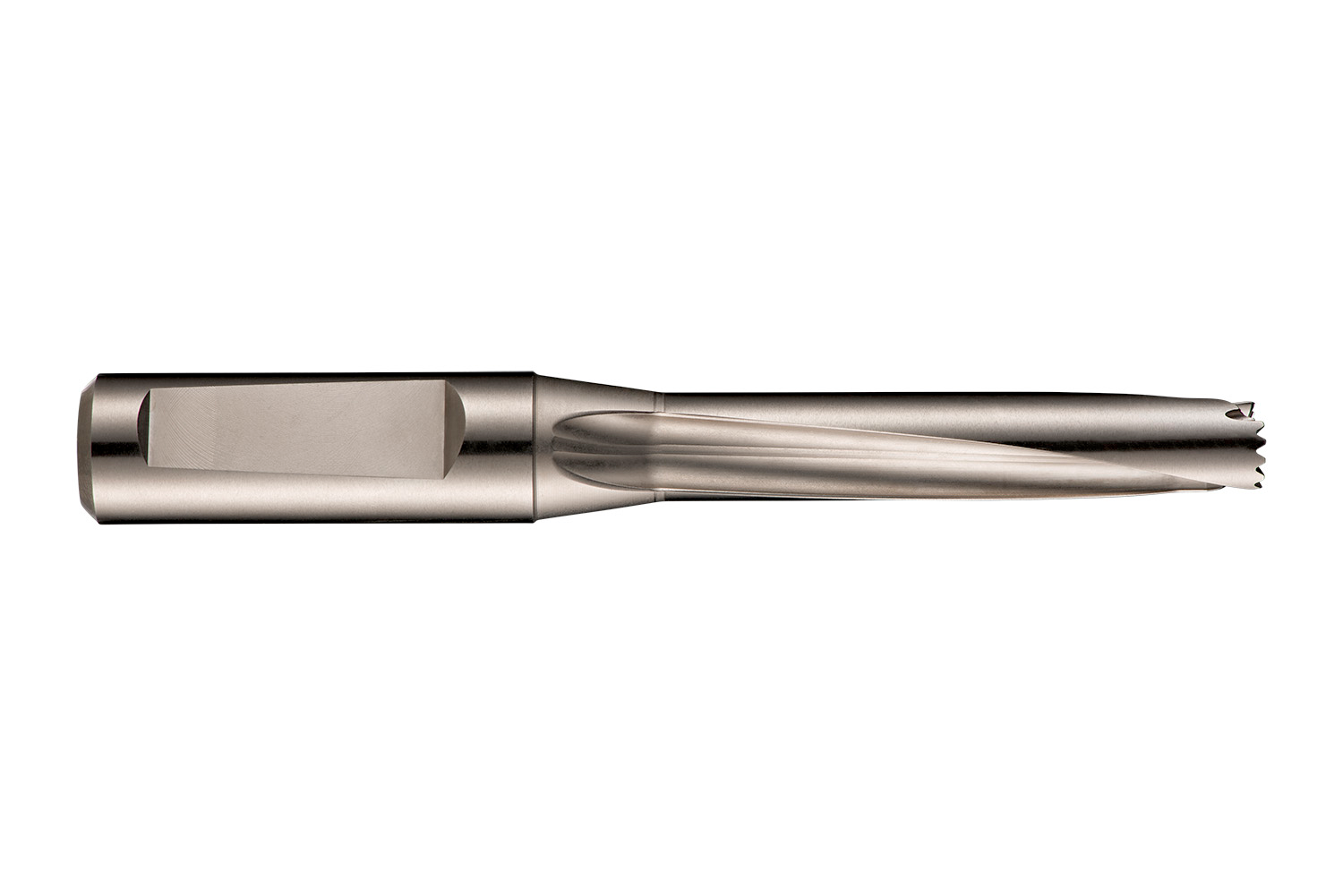

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 31/64″ with an overall length of 130mm and flute length of 69mm according to DORMER standard for 5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 0.4688 (15/32) up to 0.4844″ (31/64)

Additional information

Weight 0.5489 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760033586
Product number (SAP): 86018392
Ordering code ANSI: H85531/64
Product Line: HYDRA
Gross weight – grams: 168.9

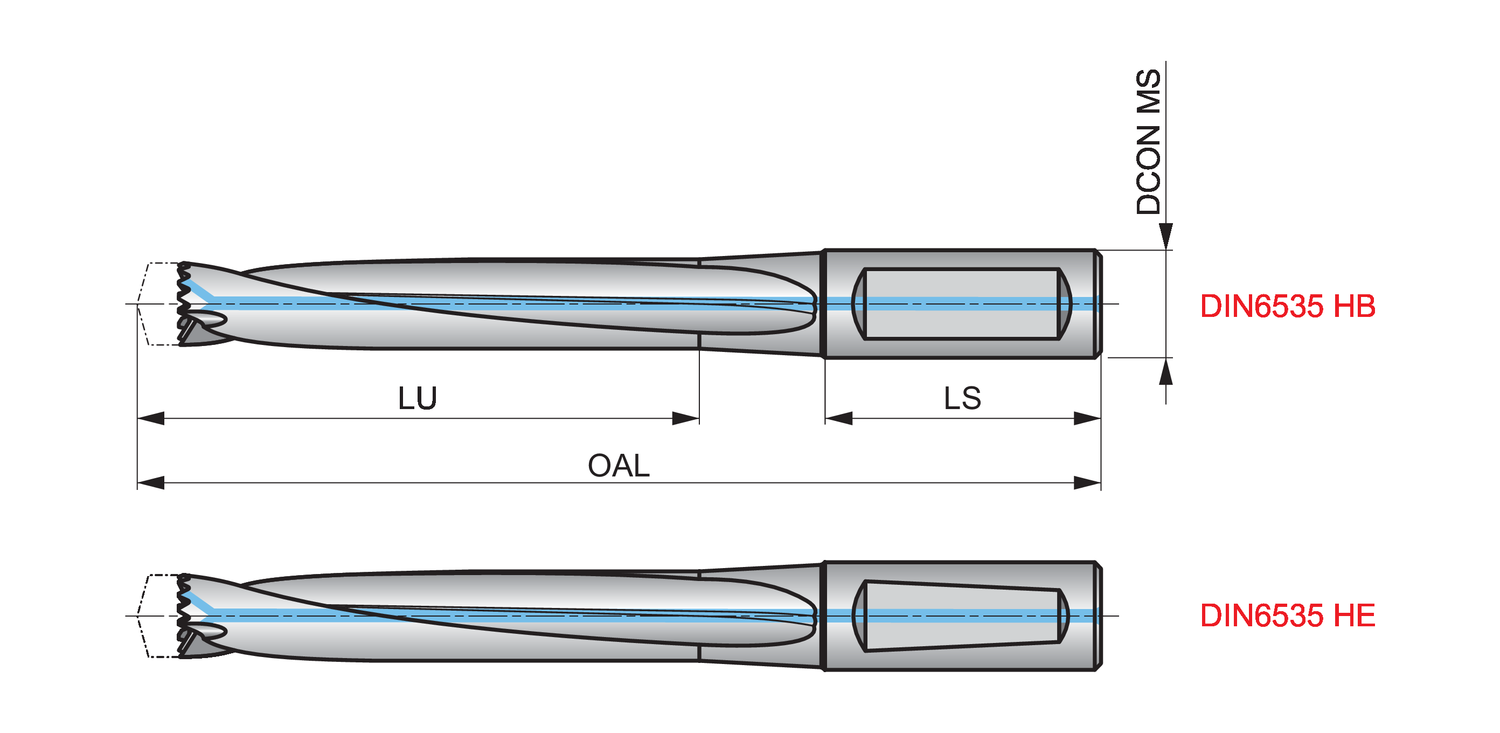

Connection diameter – fractional inch (DCON MS): 5/8
Connection diameter – millimeter (DCON MS): 15.88 mm
Usable Length – millimeter (LU): 69 mm
Overall length – millimeter (OAL): 130 mm
Shank length – millimeter (LS): 48 mm
Connection norm (ADINTMS): DIN6535HB
ISO: H85531/64

Brand

DORMER
