DORMER H85542.5 Hydra Body

Product Code: H85542.5

$1,705.17$1,550.15 Ex. GST

Product Code: H85542.5 SKU H85542.5 Categories , ,

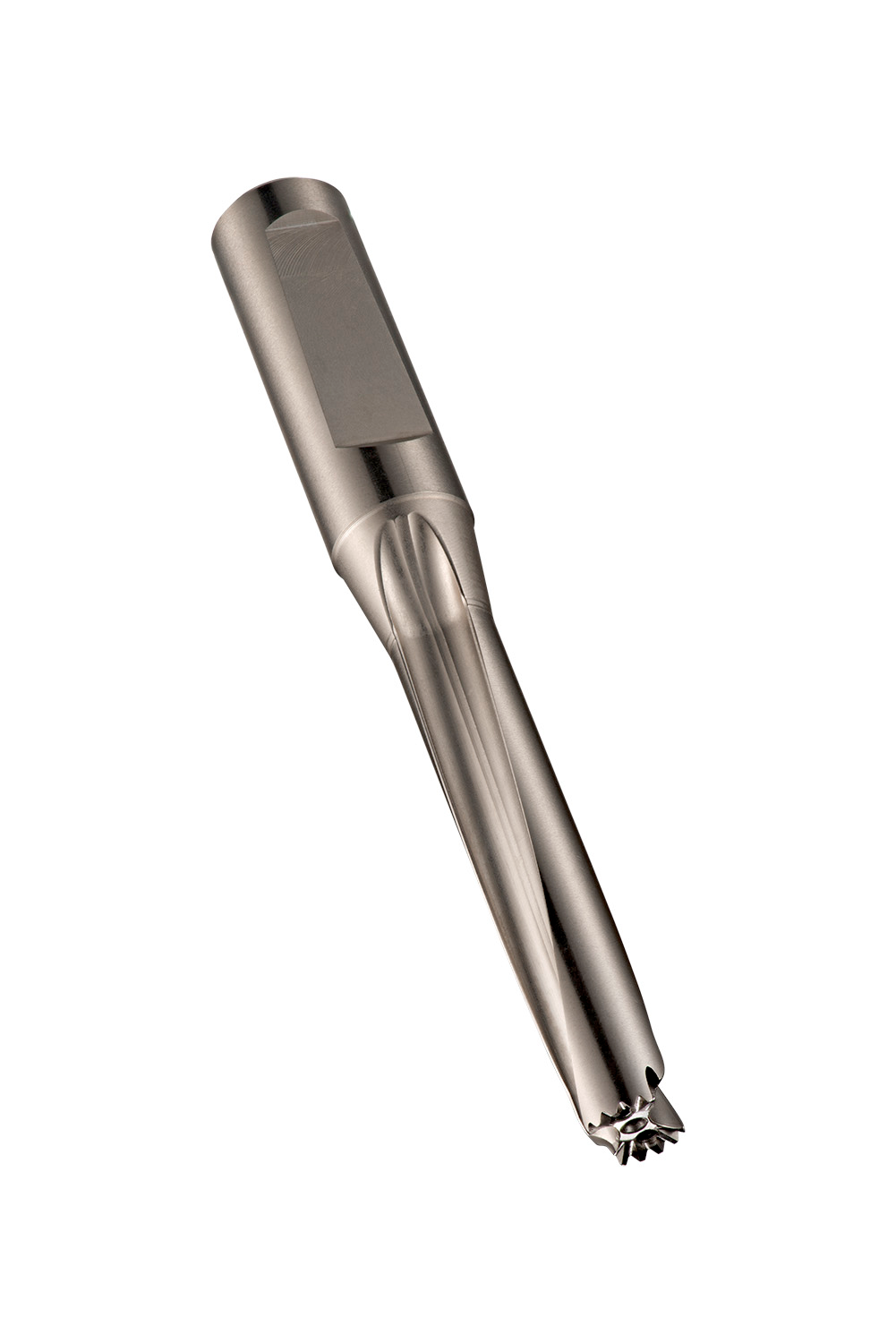

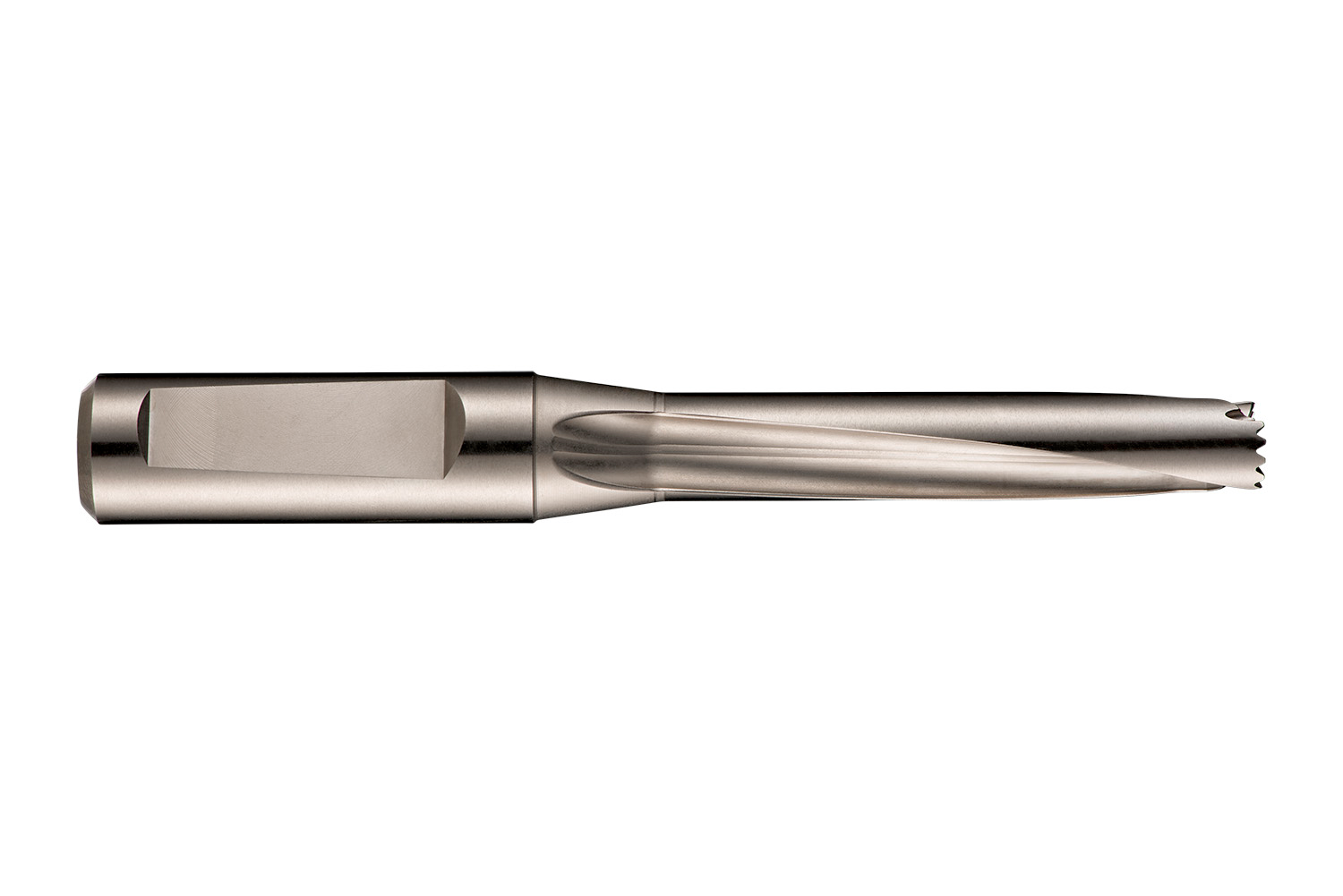

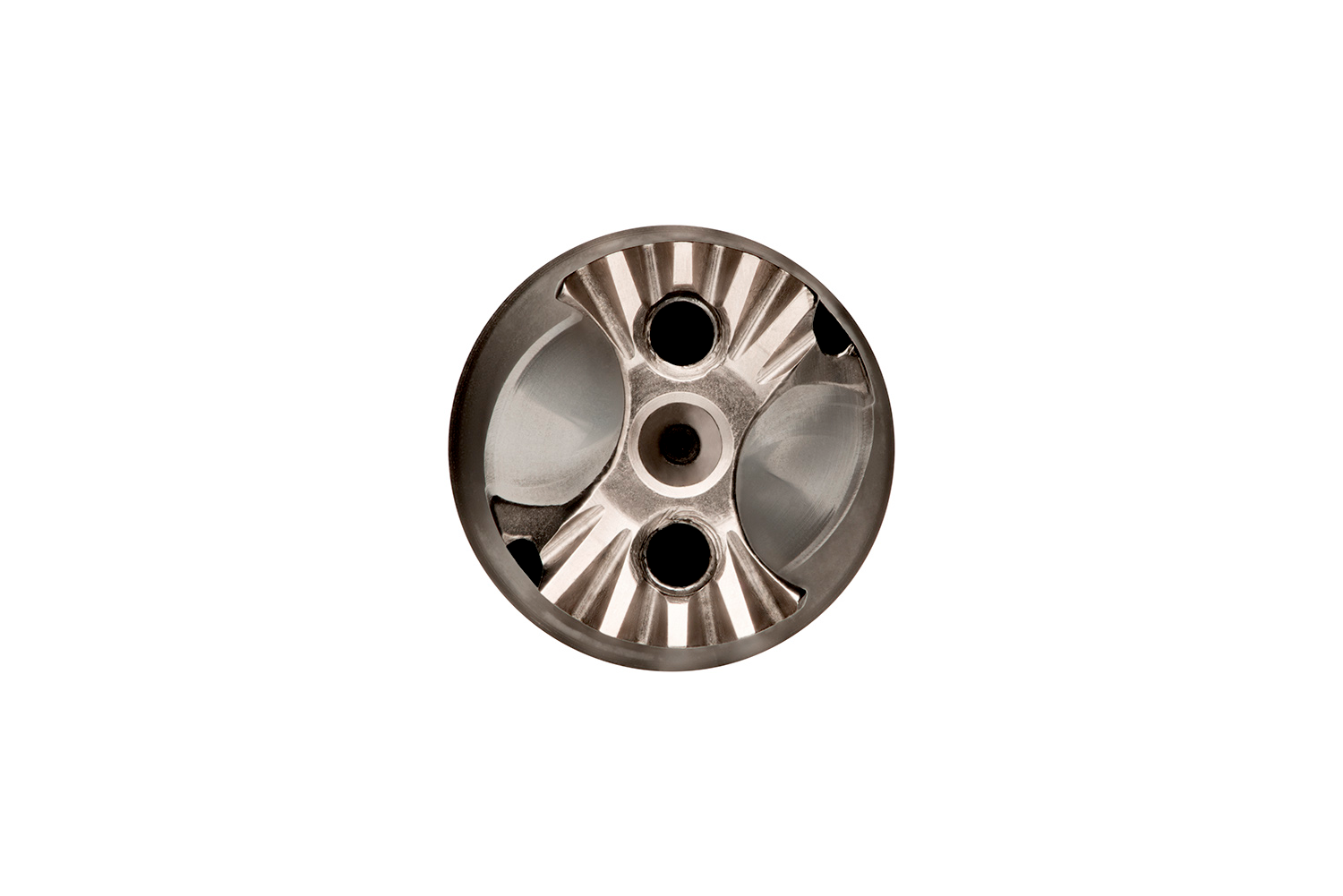

DORMER H85542.5 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Replaceable head drill body HYDRA with DIN 6535HB NC weldon shank, size 42.5mm with an overall length of 336.5mm and flute length of 236.5mm according to DORMER standard for 5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 41.28 up to 42mm

Additional information

Weight 1.6555 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760652596
Product number (SAP): 86018402
Ordering code ANSI: H85542.5
Product Line: HYDRA
Gross weight – grams: 2155

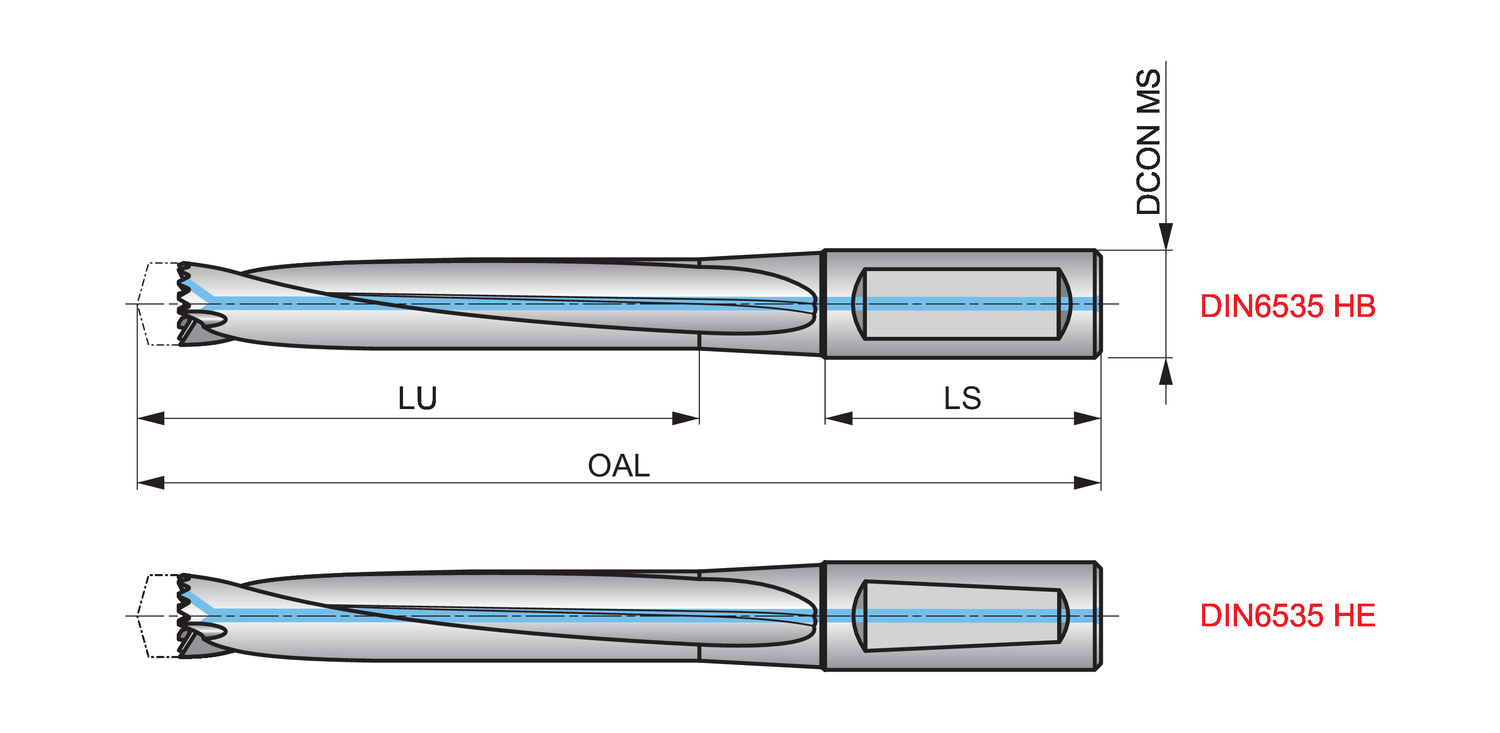

Connection diameter – millimeter (DCON MS): 40 mm
Usable Length – millimeter (LU): 236.5 mm
Overall length – millimeter (OAL): 336.5 mm
Shank length – millimeter (LS): 70 mm
Connection norm (ADINTMS): DIN6535HB
ISO: H85542.5

Brand

DORMER
