DORMER H85822.0 Hydra Body

Product Code: H85822.0

$862.21$783.83 Ex. GST

Product Code: H85822.0 SKU H85822.0 Categories , ,
DORMER H85822.0 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

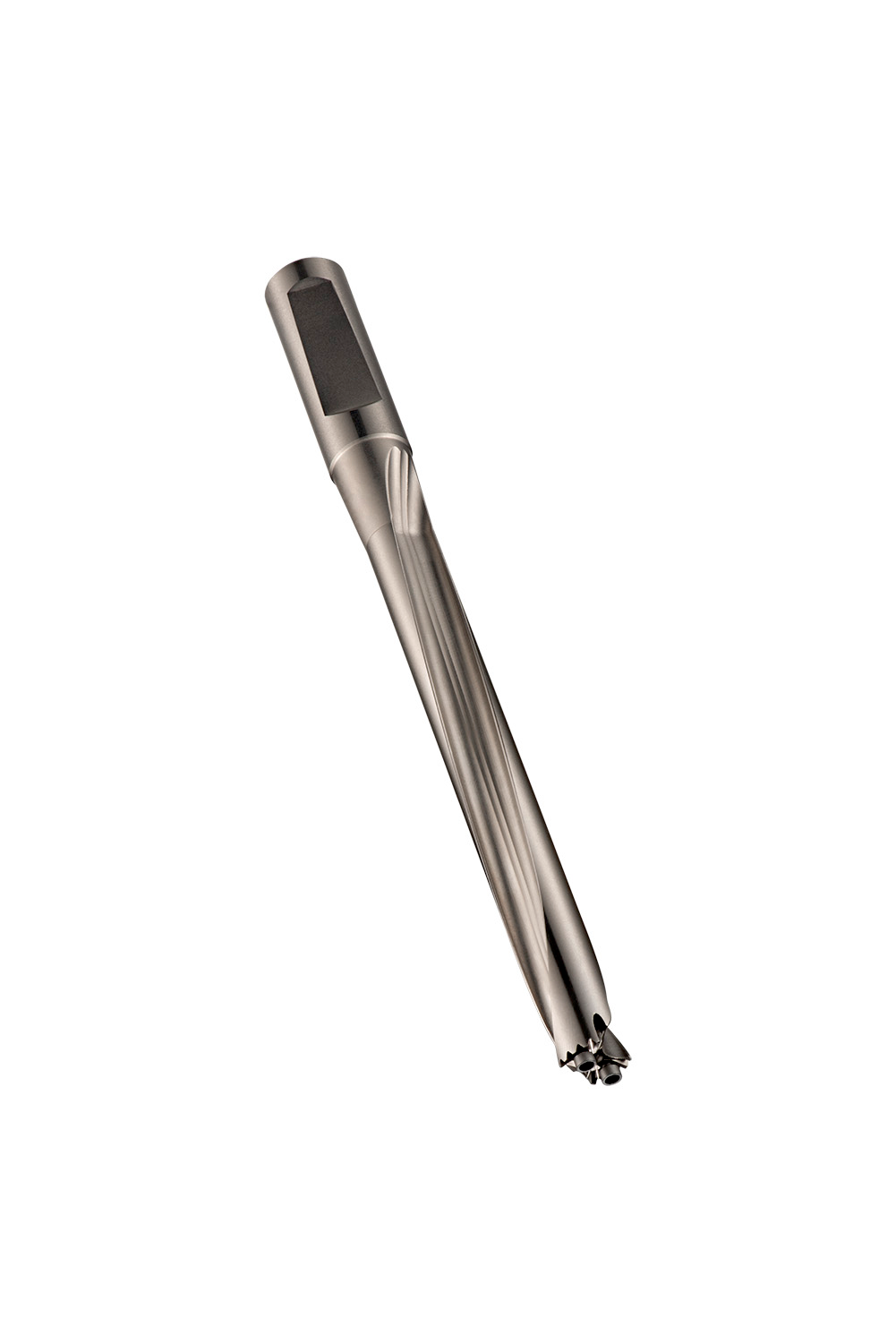

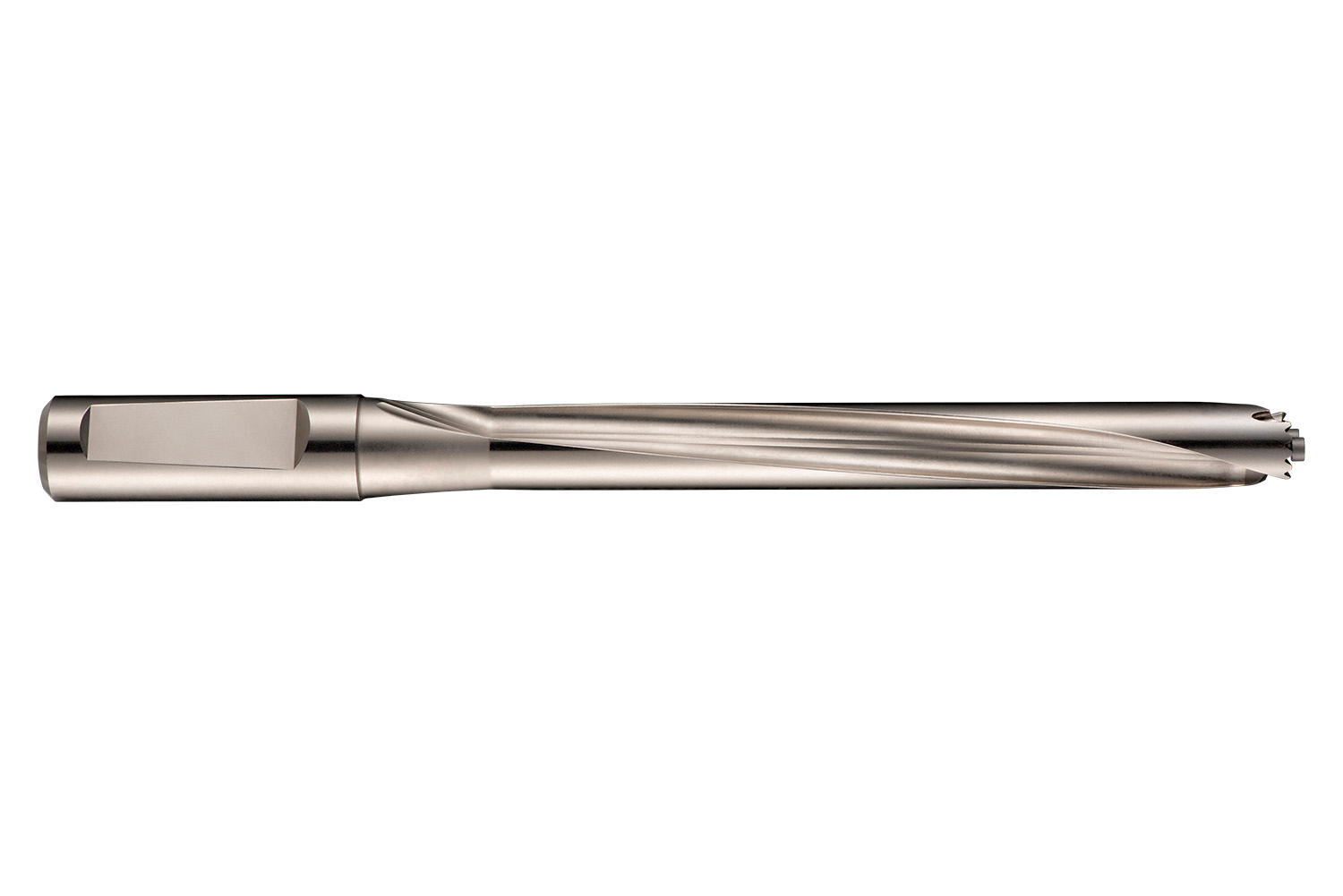

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 22.0mm with an overall length of 271.1mm and flute length of 192.1mm according to DORMER standard for 8xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 21.83 up to 22.7mm

Additional information

Weight 0.8371 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760018743
Product number (SAP): 86018416
Ordering code ANSI: H85822.0
Product Line: HYDRA
Gross weight – grams: 638

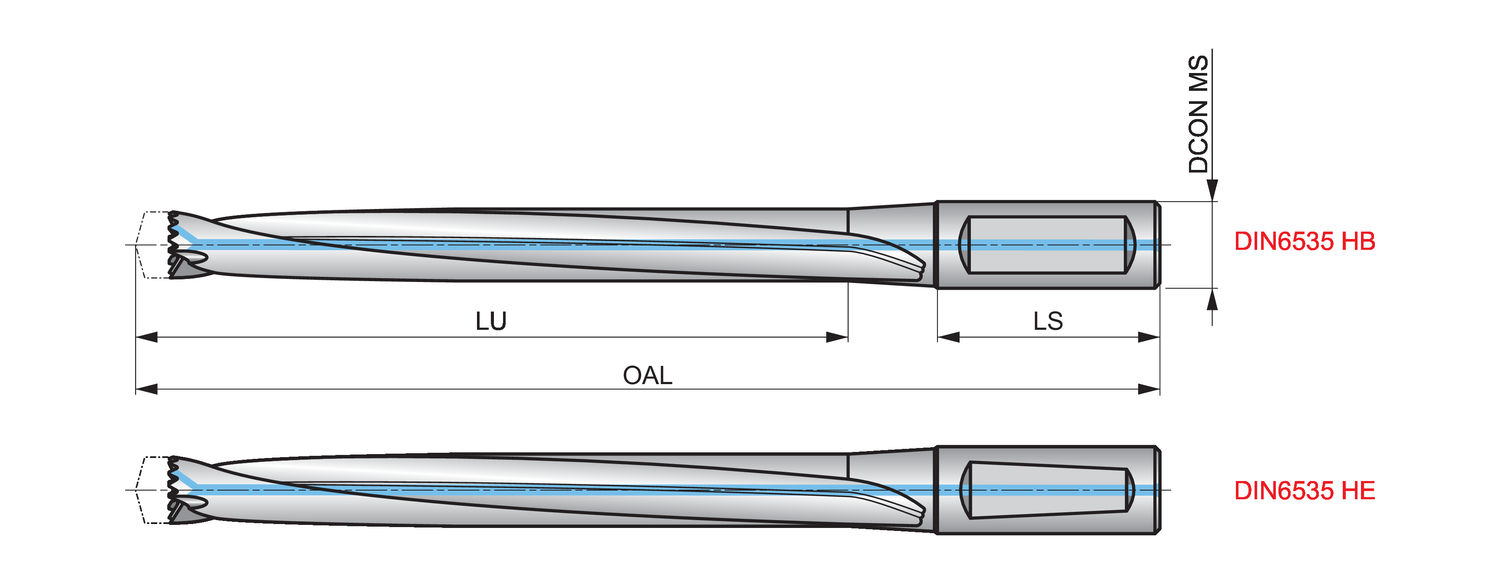

Connection diameter – millimeter (DCON MS): 25 mm
Usable Length – millimeter (LU): 192.1 mm
Overall length – millimeter (OAL): 271.1 mm
Shank length – millimeter (LS): 56 mm
Connection norm (ADINTMS): DIN6535HE
ISO: H85822.0

Brand

DORMER
