DORMER H85825.0 Hydra Body

Product Code: H85825.0

$1,023.10$930.09 Ex. GST

Product Code: H85825.0 SKU H85825.0 Categories , ,
DORMER H85825.0 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

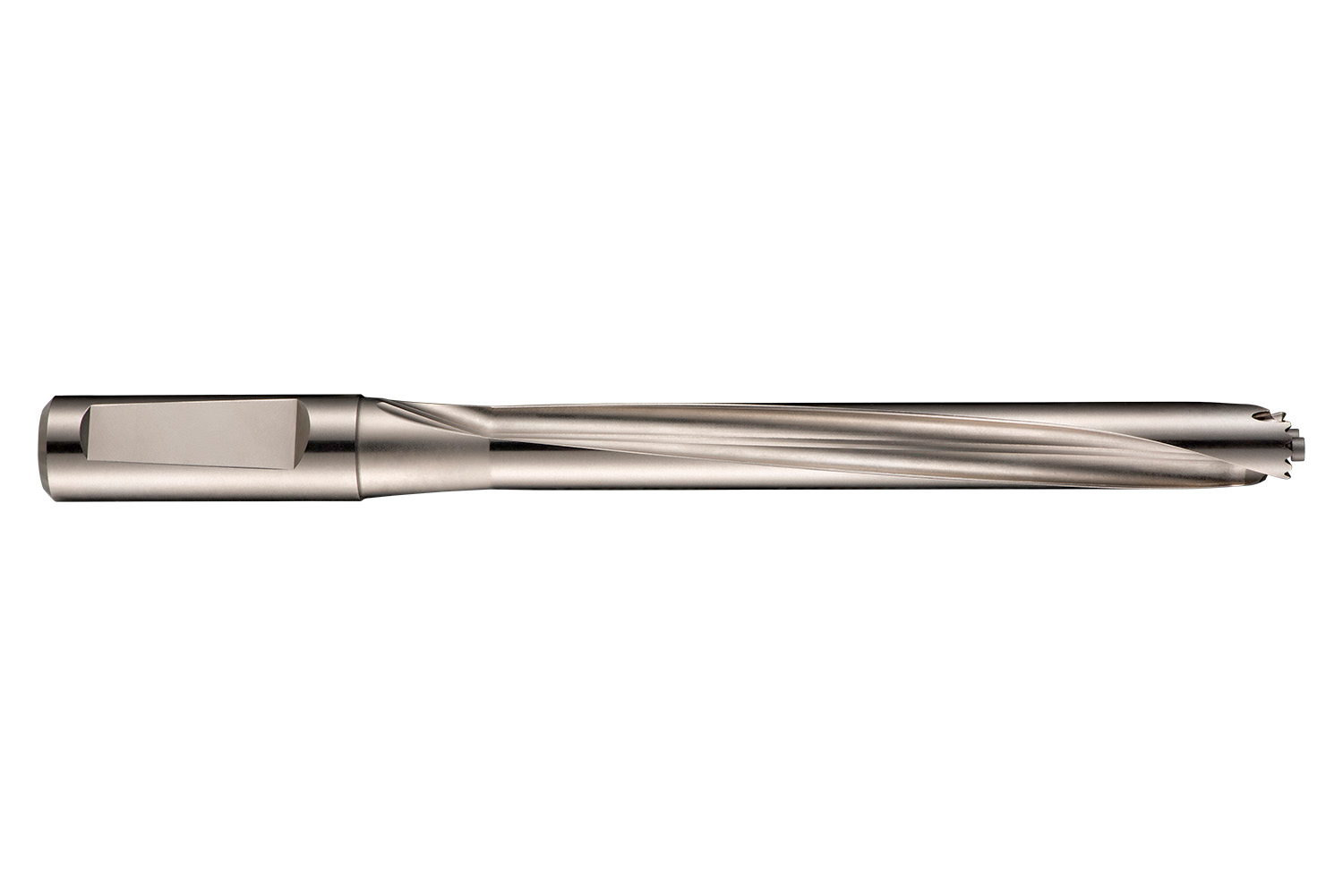

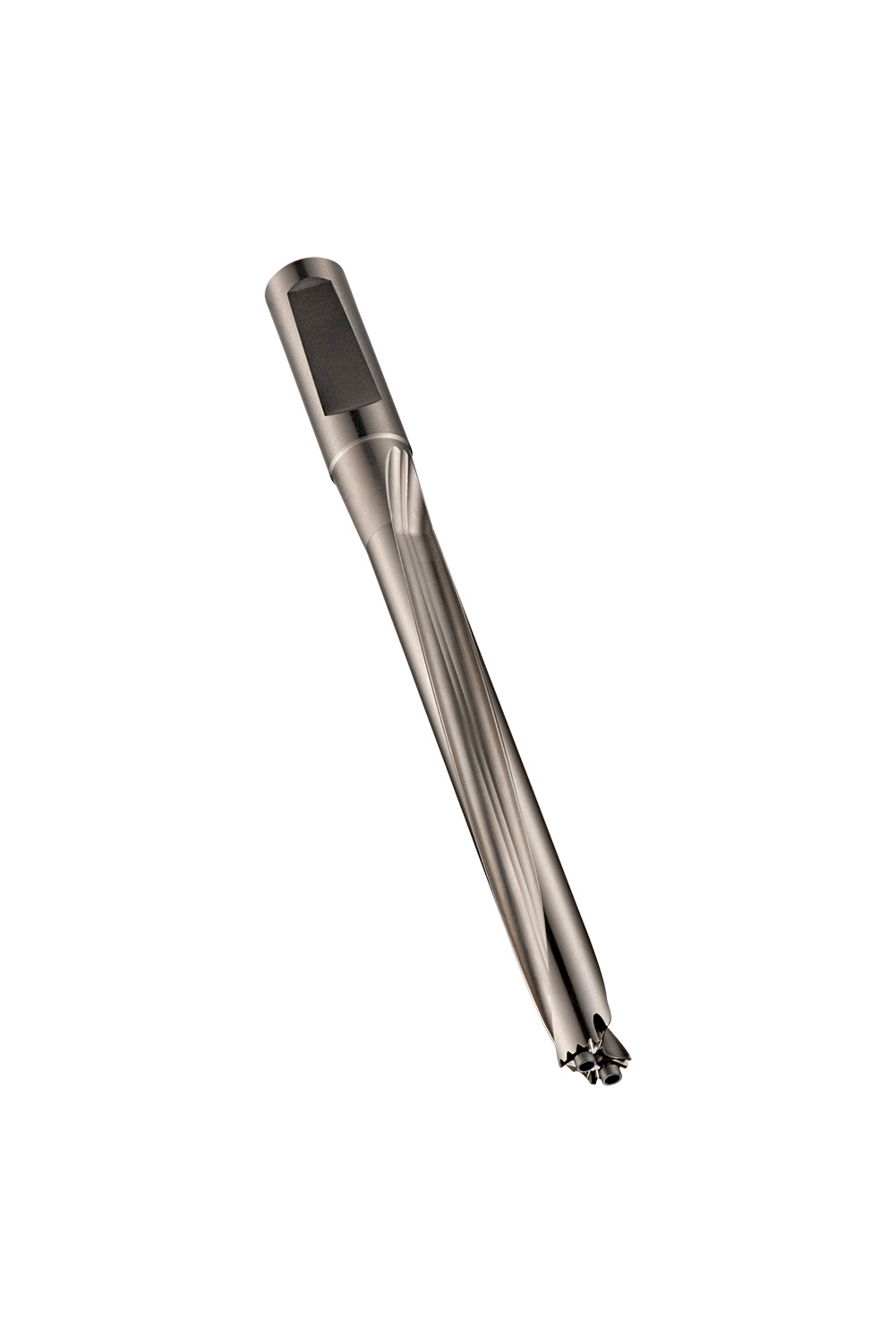

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 25.0mm with an overall length of 300mm and flute length of 217mm according to DORMER standard for 8xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 25 up to 25.8mm

Additional information

Weight 0.9933 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760018774
Product number (SAP): 86018419
Ordering code ANSI: H85825.0
Product Line: HYDRA
Gross weight – grams: 1064.7

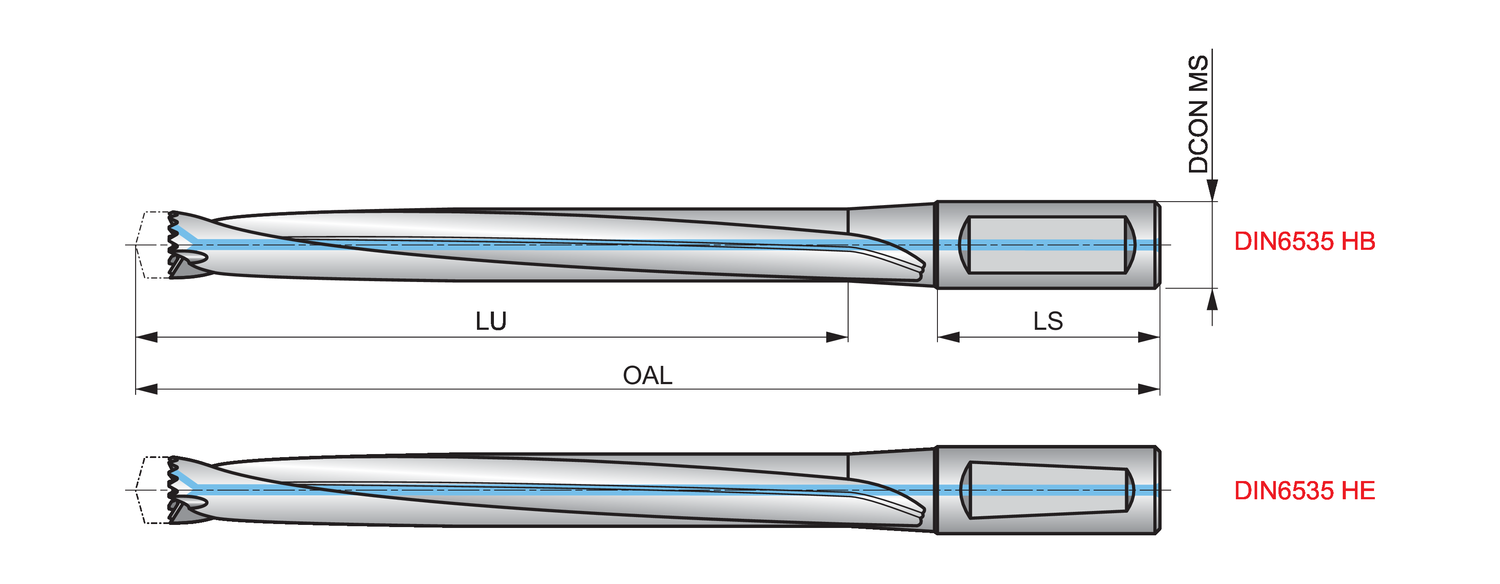

Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 217 mm
Overall length – millimeter (OAL): 300 mm
Shank length – millimeter (LS): 60 mm
Connection norm (ADINTMS): DIN6535HE
ISO: H85825.0

Brand

DORMER
