DORMER H85830.0 Hydra Body

Product Code: H85830.0

$1,127.34$1,024.85 Ex. GST

Product Code: H85830.0 SKU H85830.0 Categories , ,
DORMER H85830.0 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

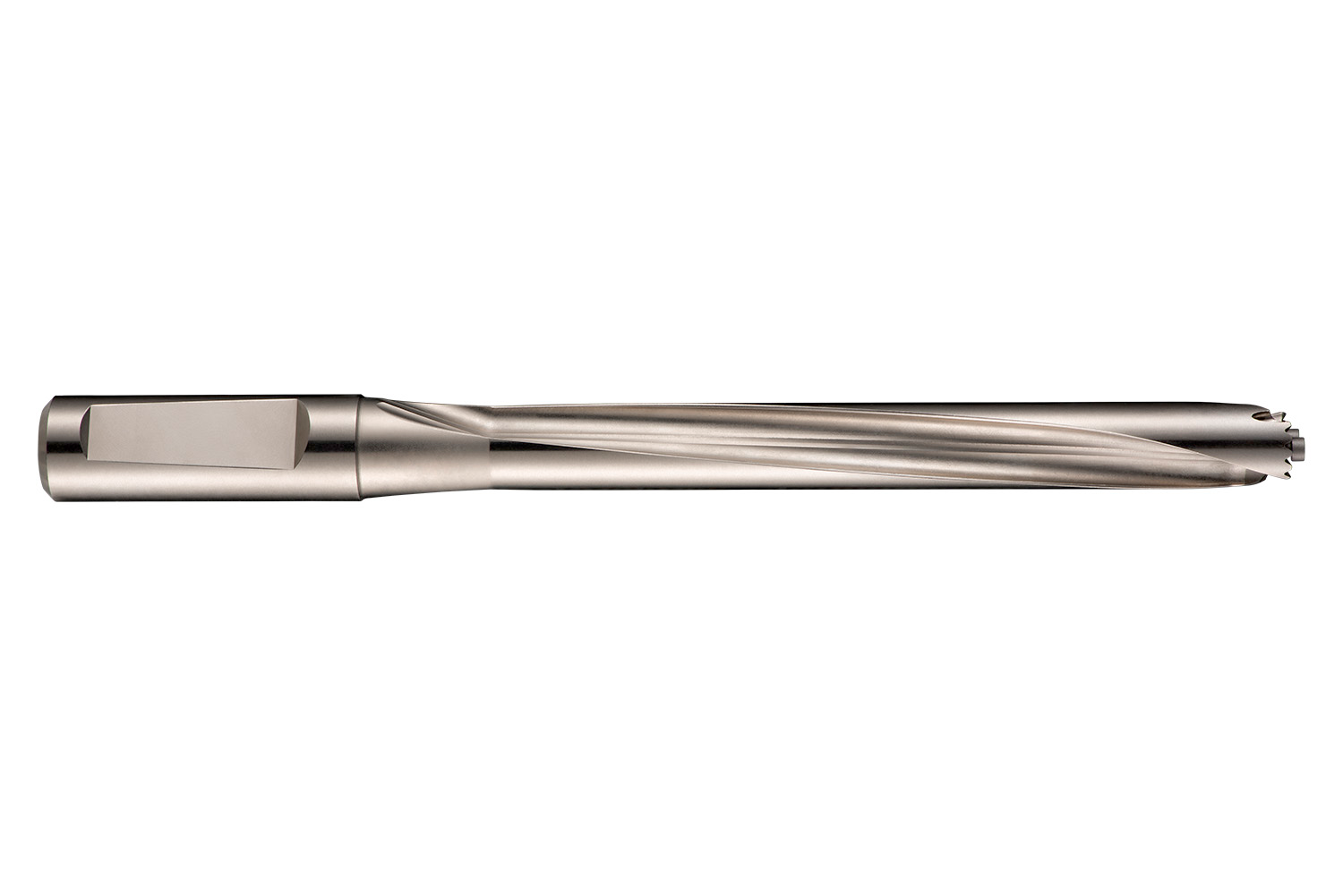

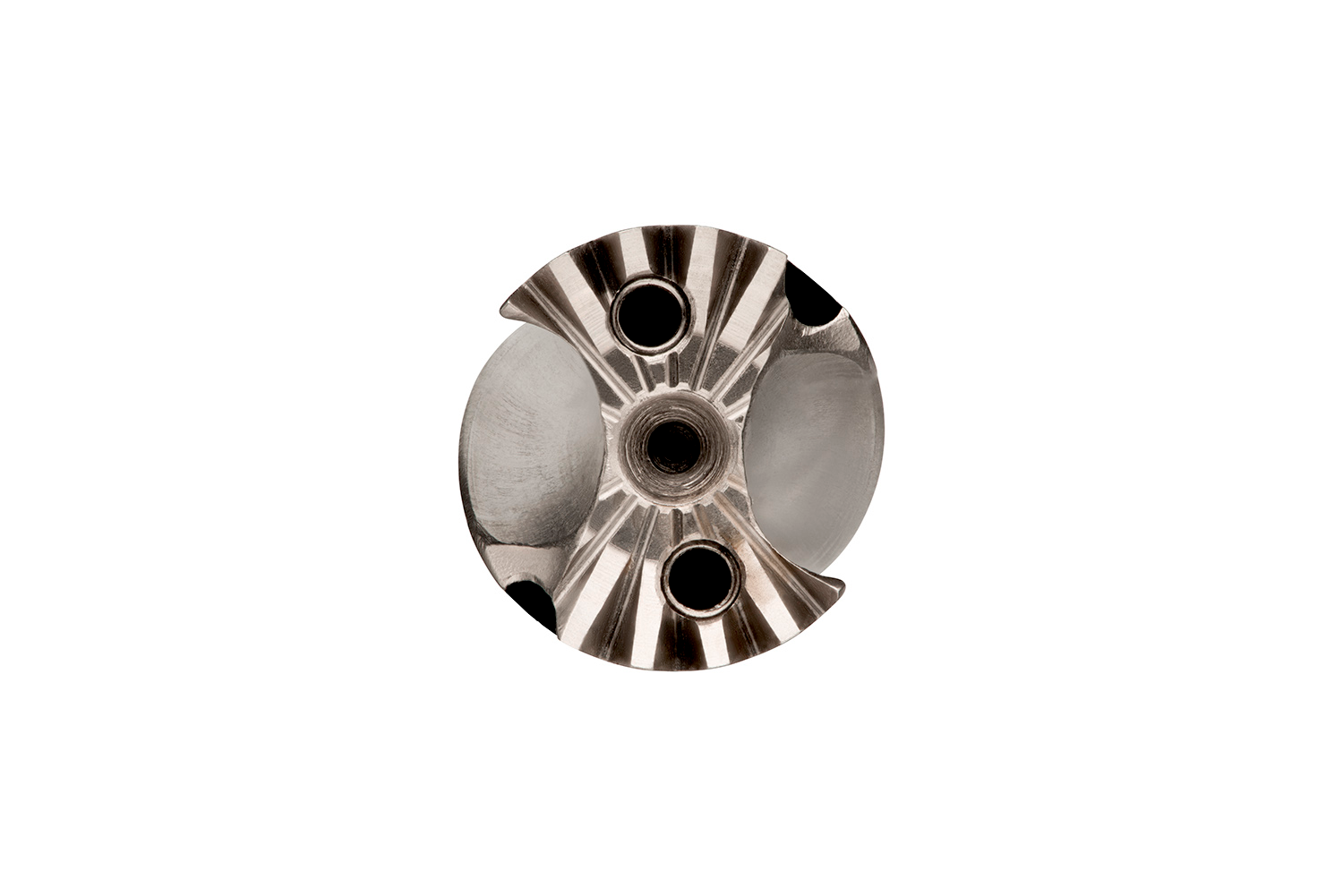

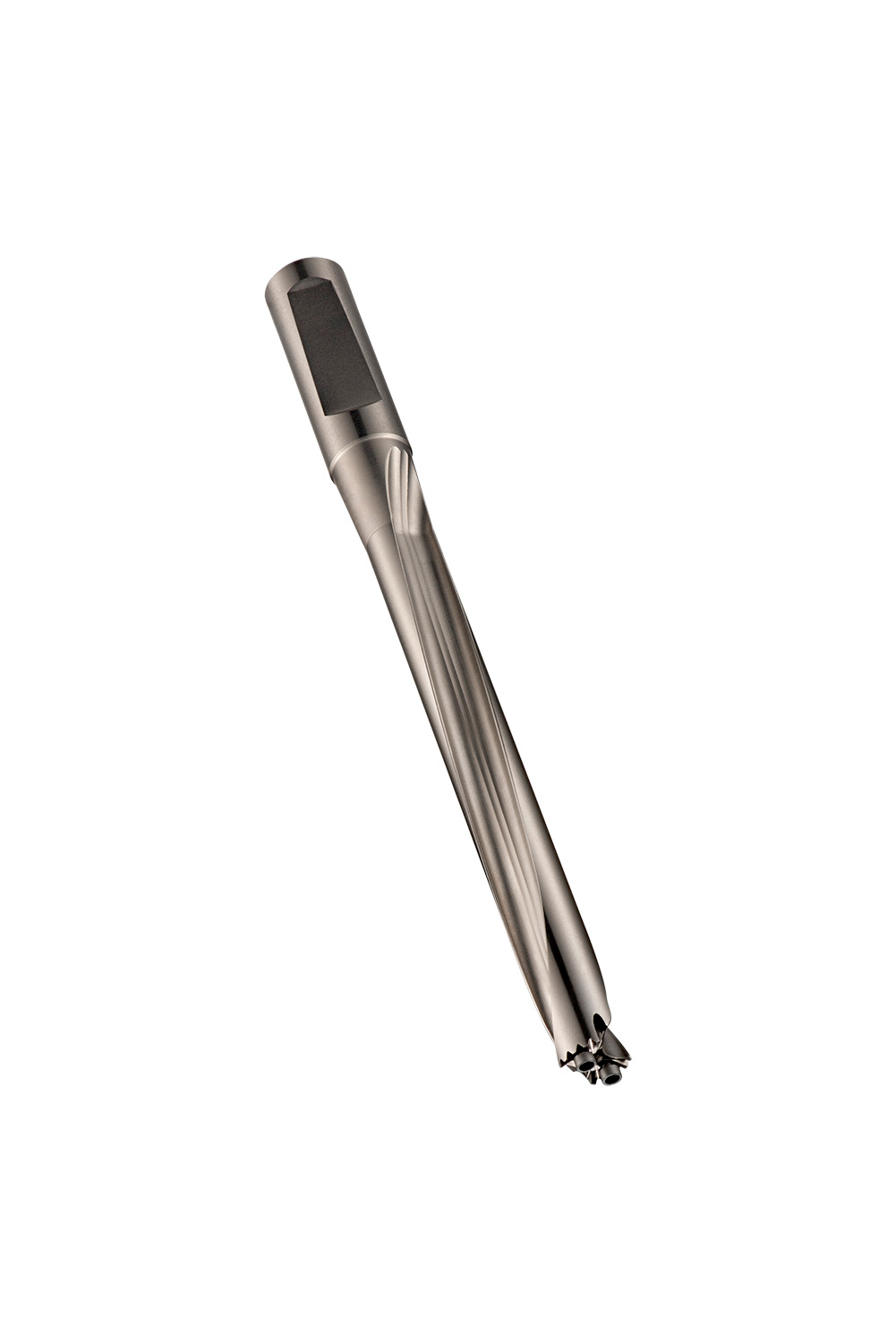

Replaceable head drill body HYDRA with DIN 6535HE NC whistle notch shank, size 30.0mm with an overall length of 345mm and flute length of 259mm according to DORMER standard for 8xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 30 up to 30.5mm

Additional information

Weight 1.0945 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760018828
Product number (SAP): 86018424
Ordering code ANSI: H85830.0
Product Line: HYDRA
Gross weight – grams: 1361.3

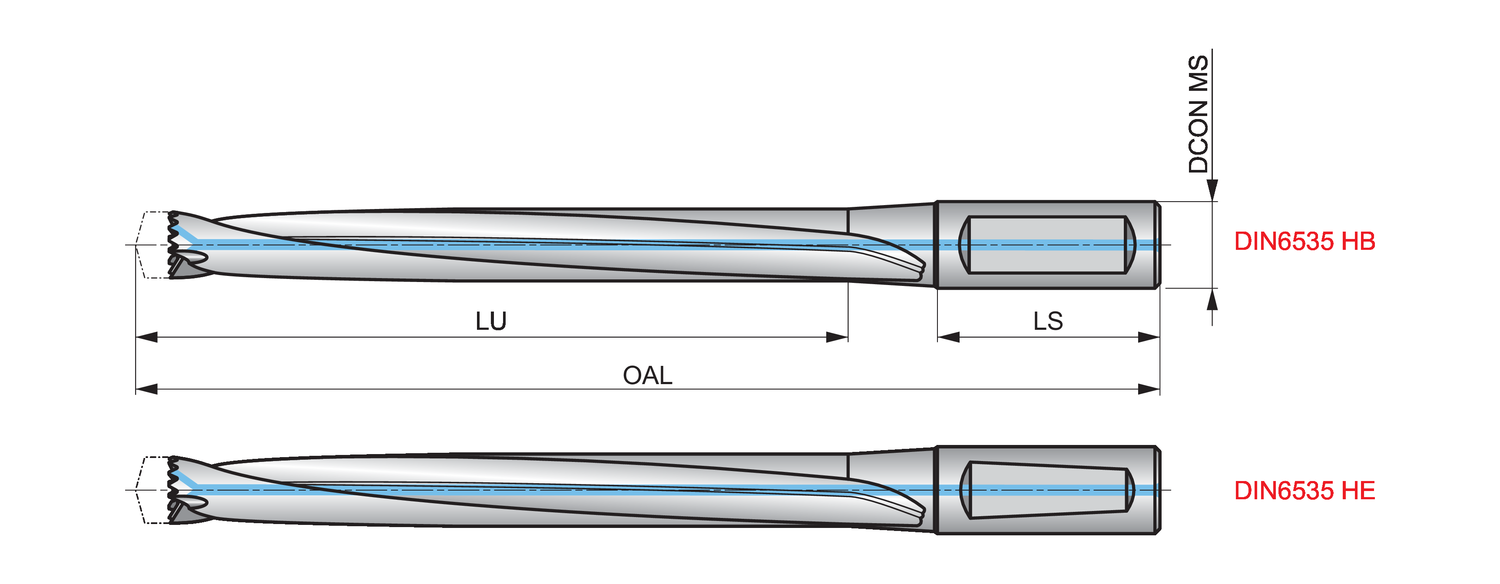

Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 259 mm
Overall length – millimeter (OAL): 345 mm
Shank length – millimeter (LS): 60 mm
Connection norm (ADINTMS): DIN6535HE
ISO: H85830.0

Brand

DORMER
