DORMER H85833.5 Hydra Body

Product Code: H85833.5

$1,331.28$1,210.25 Ex. GST

Product Code: H85833.5 SKU H85833.5 Categories , ,
DORMER H85833.5 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

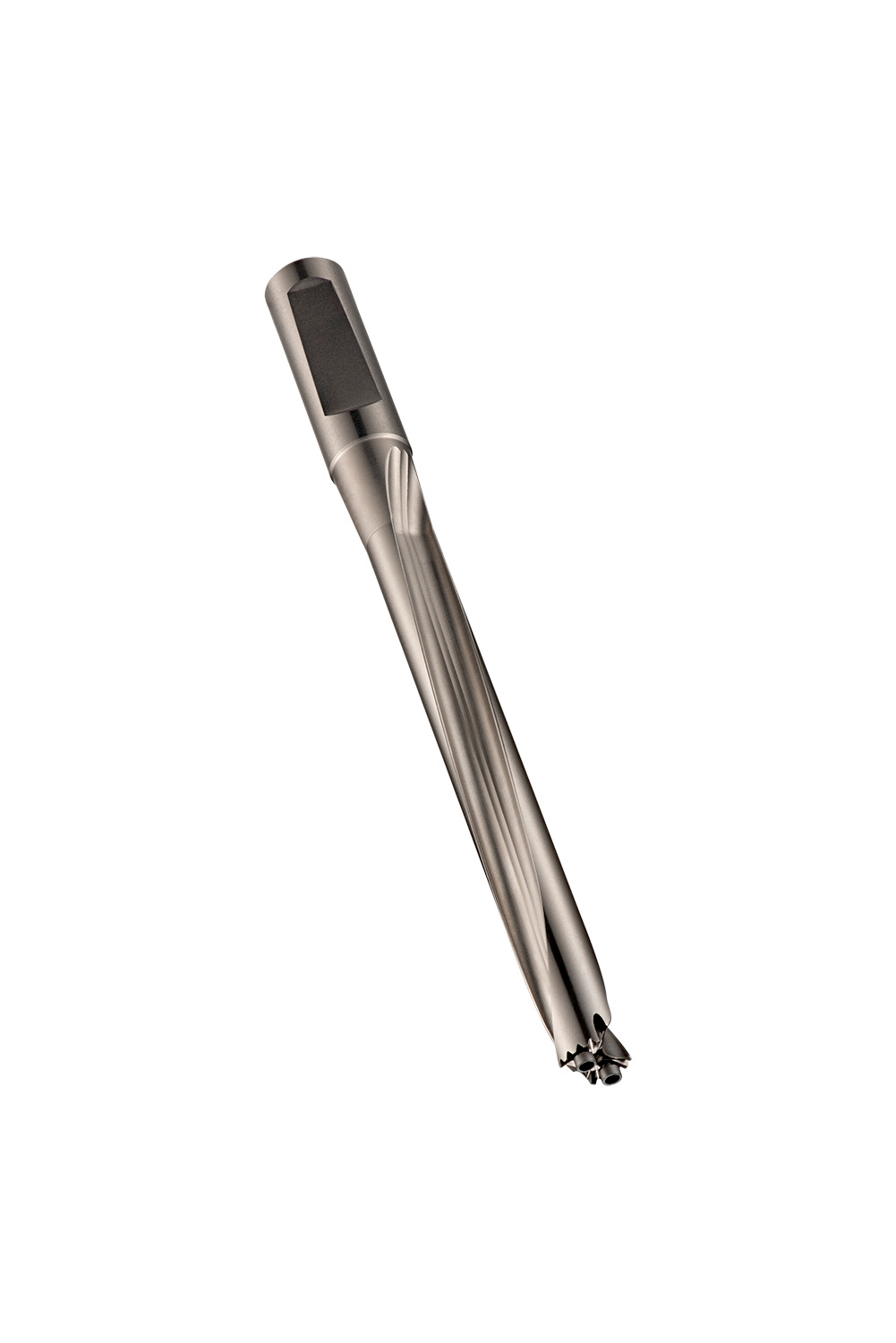

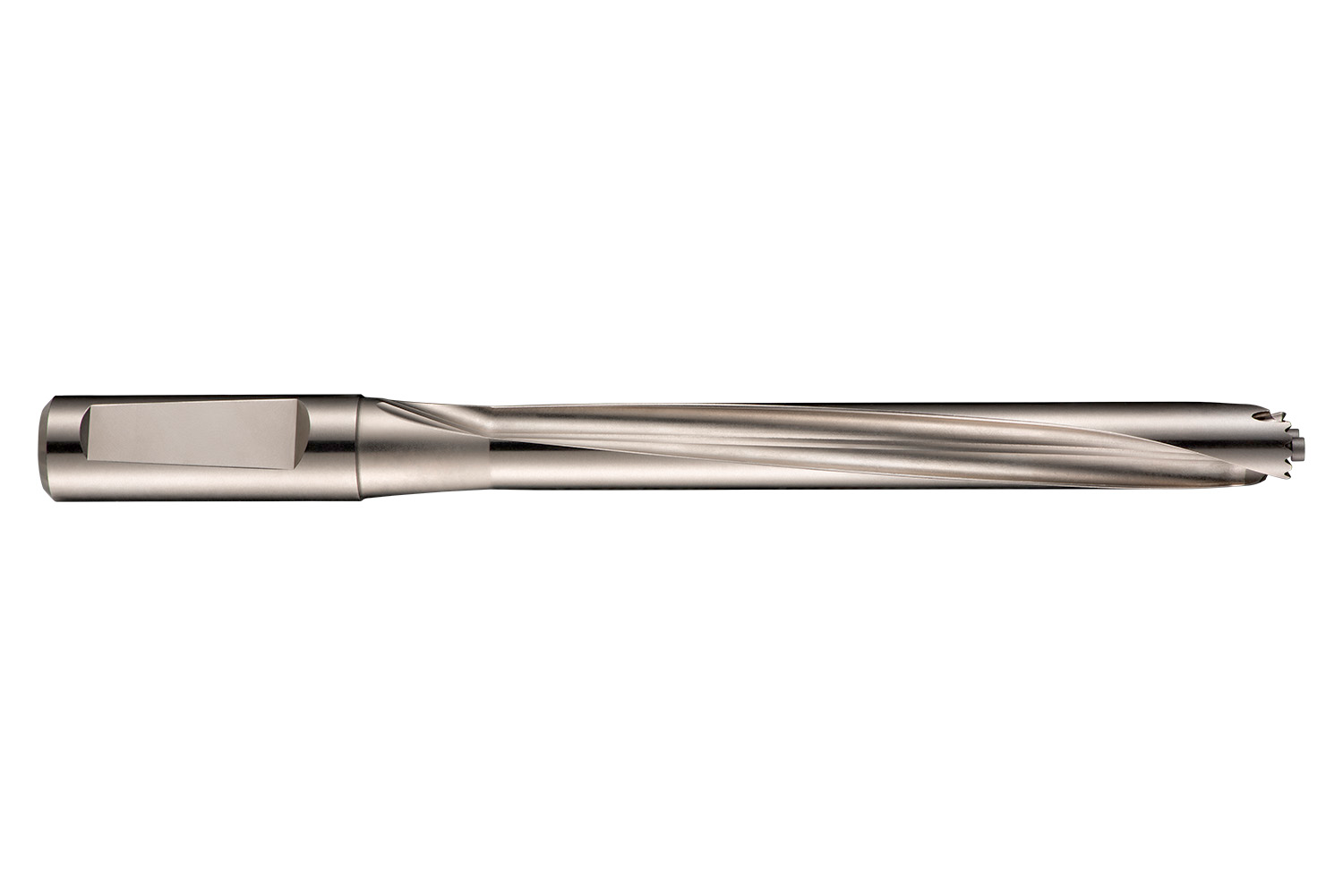

Replaceable head drill body HYDRA with DIN 6535HB NC weldon shank, size 33.5mm with an overall length of 371.5mm and flute length of 286.5mm according to DORMER standard for 8xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 32.5 up to 33.5mm

Additional information

Weight 1.2925 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760652619
Product number (SAP): 86018426
Ordering code ANSI: H85833.5
Product Line: HYDRA
Gross weight – grams: 1537

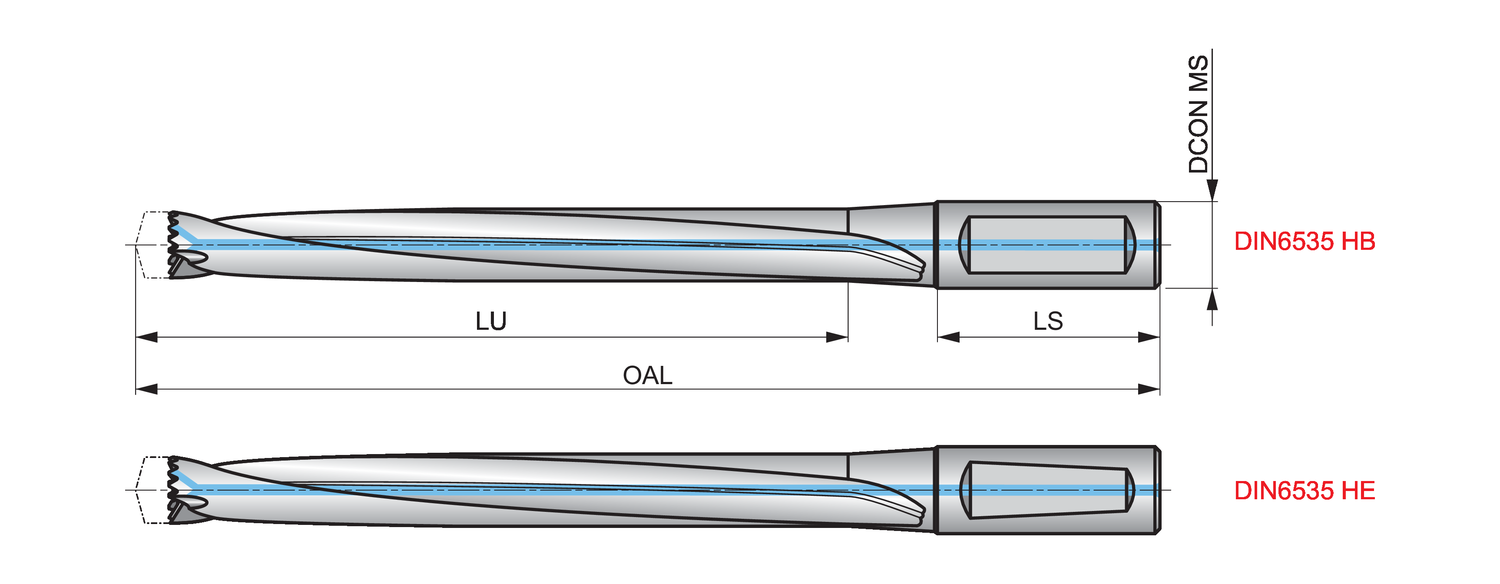

Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 286.5 mm
Overall length – millimeter (OAL): 371.5 mm
Shank length – millimeter (LS): 60 mm
Connection norm (ADINTMS): DIN6535HE
ISO: H85833.5

Brand

DORMER
