DORMER H85838.0 Hydra Body

Product Code: H85838.0

$1,699.50$1,545.00 Ex. GST

Product Code: H85838.0 SKU H85838.0 Categories , ,
DORMER H85838.0 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

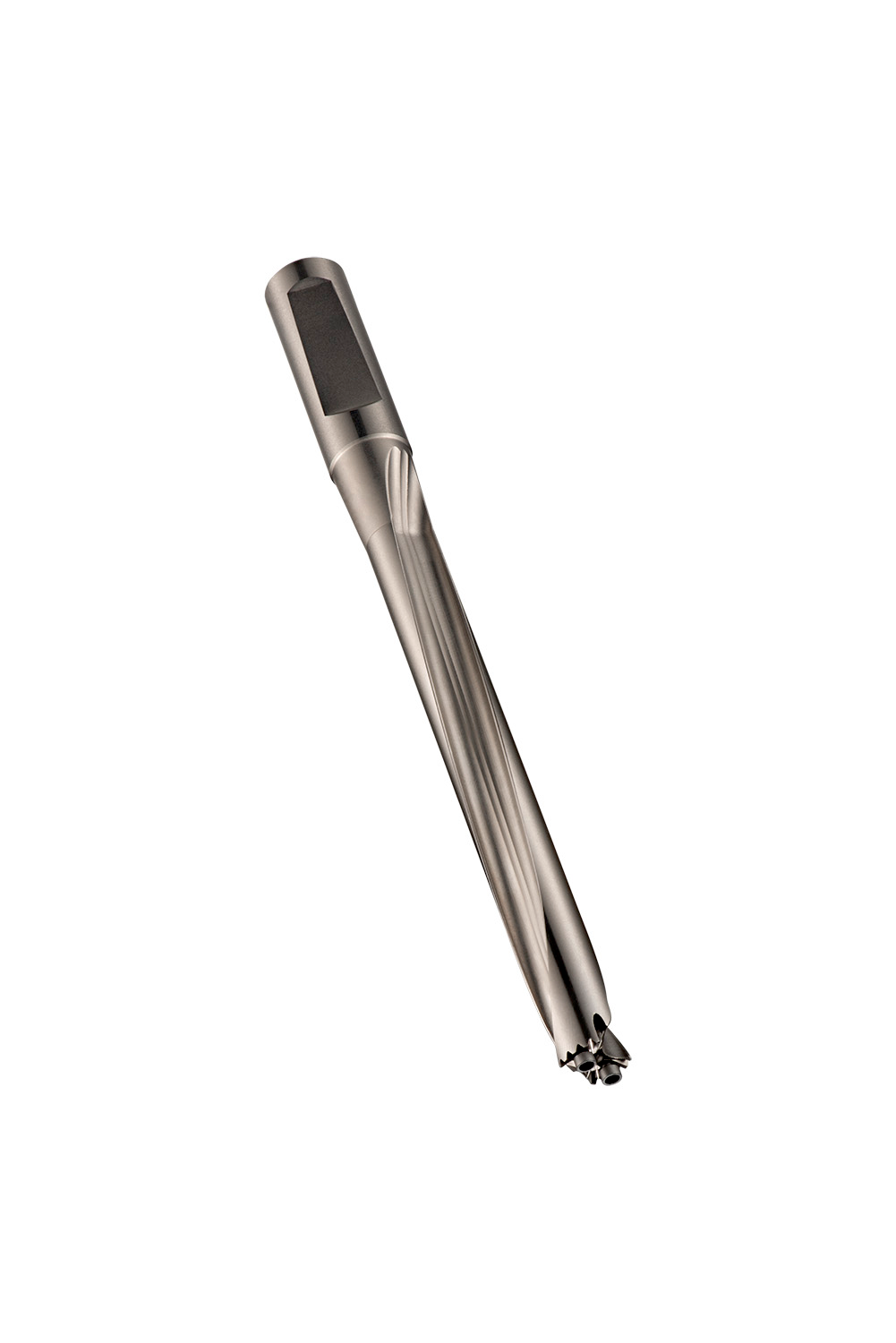

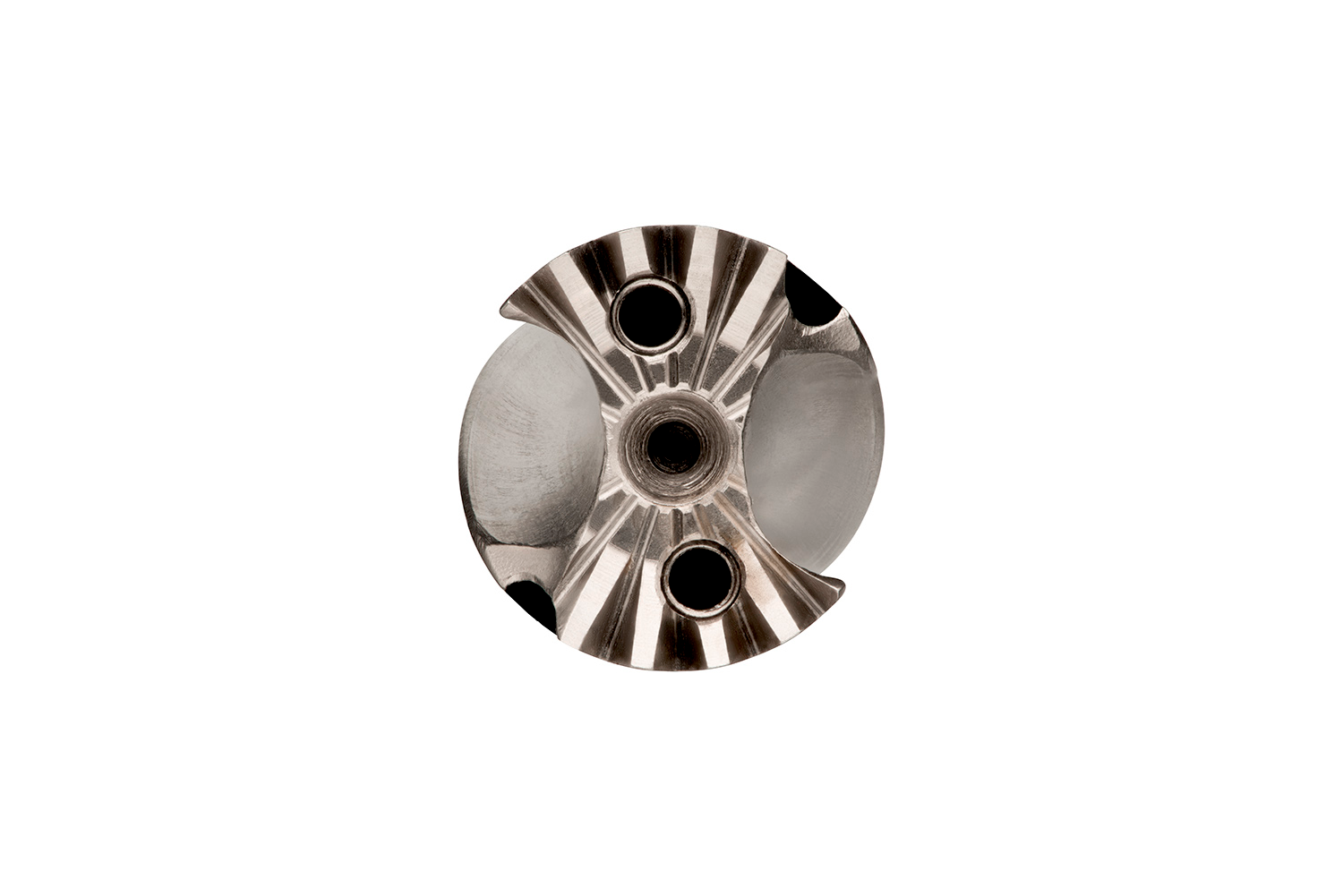

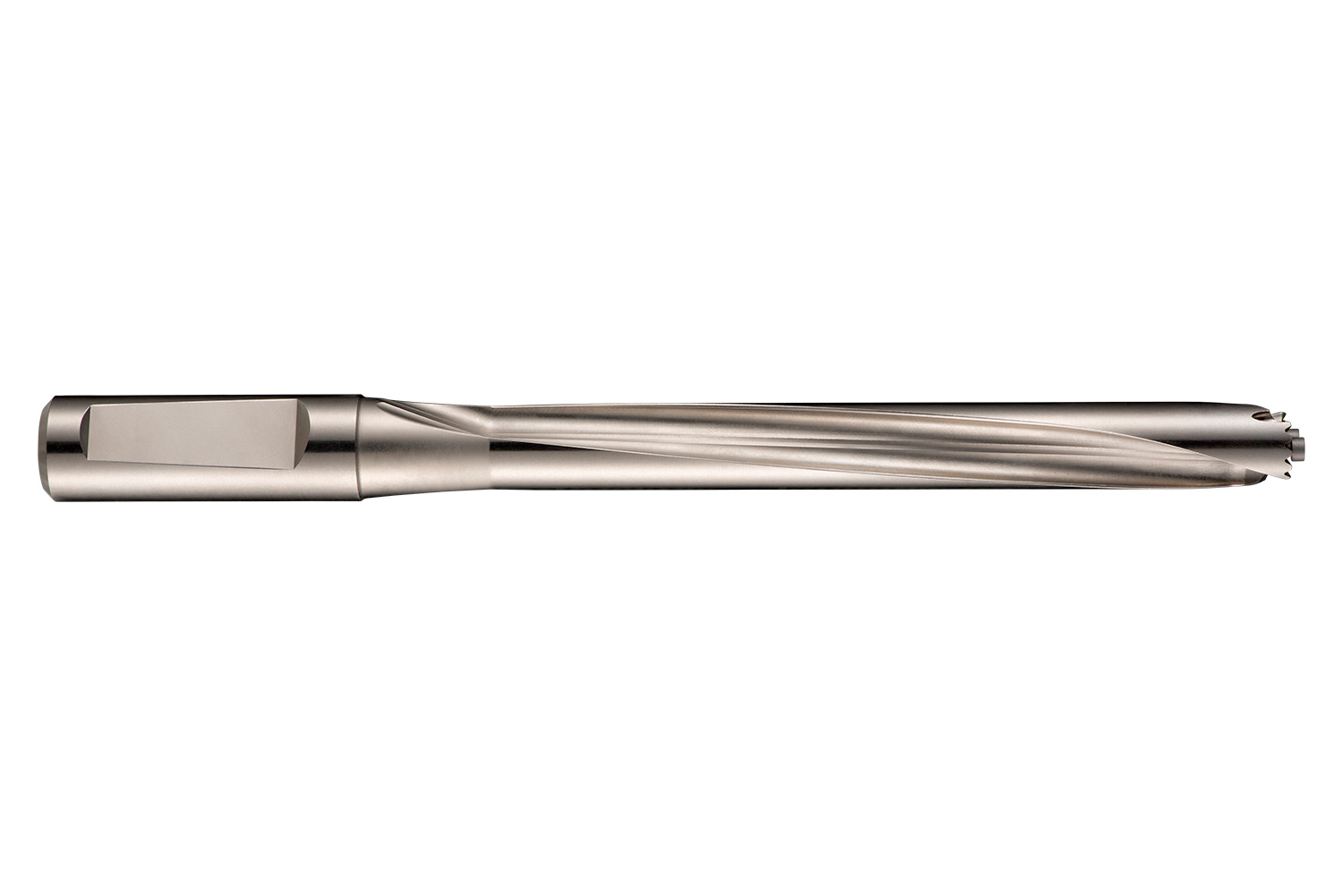

Replaceable head drill body HYDRA with DIN 6535HB NC weldon shank, size 38.0mm with an overall length of 421.5mm and flute length of 326.5mm according to DORMER standard for 8xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 37 up to 38mm

Additional information

Weight 1.6500 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760652640
Product number (SAP): 86018429
Ordering code ANSI: H85838.0
Product Line: HYDRA
Gross weight – grams: 2316

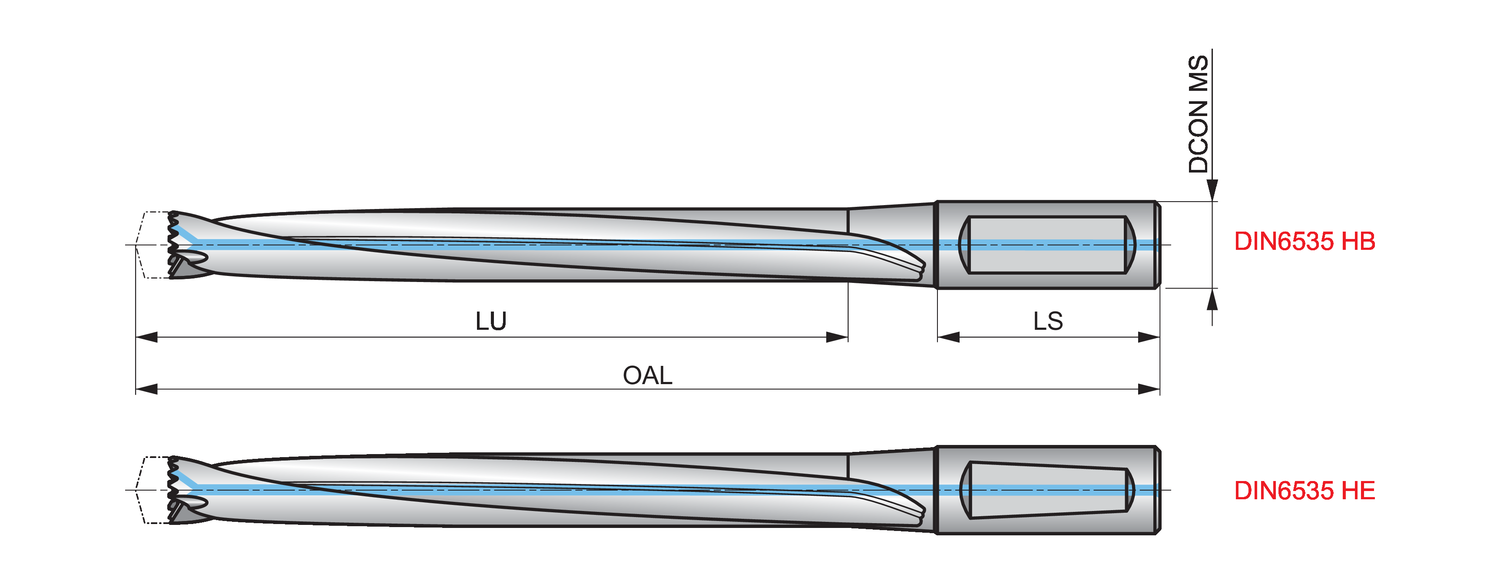

Connection diameter – millimeter (DCON MS): 40 mm
Usable Length – millimeter (LU): 326.5 mm
Overall length – millimeter (OAL): 421.5 mm
Shank length – millimeter (LS): 70 mm
Connection norm (ADINTMS): DIN6535HB
ISO: H85838.0

Brand

DORMER
