DORMER H85841.0 Hydra Body

Product Code: H85841.0

$1,841.13$1,673.75 Ex. GST

Product Code: H85841.0 SKU H85841.0 Categories , ,
DORMER H85841.0 Hydra Body

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

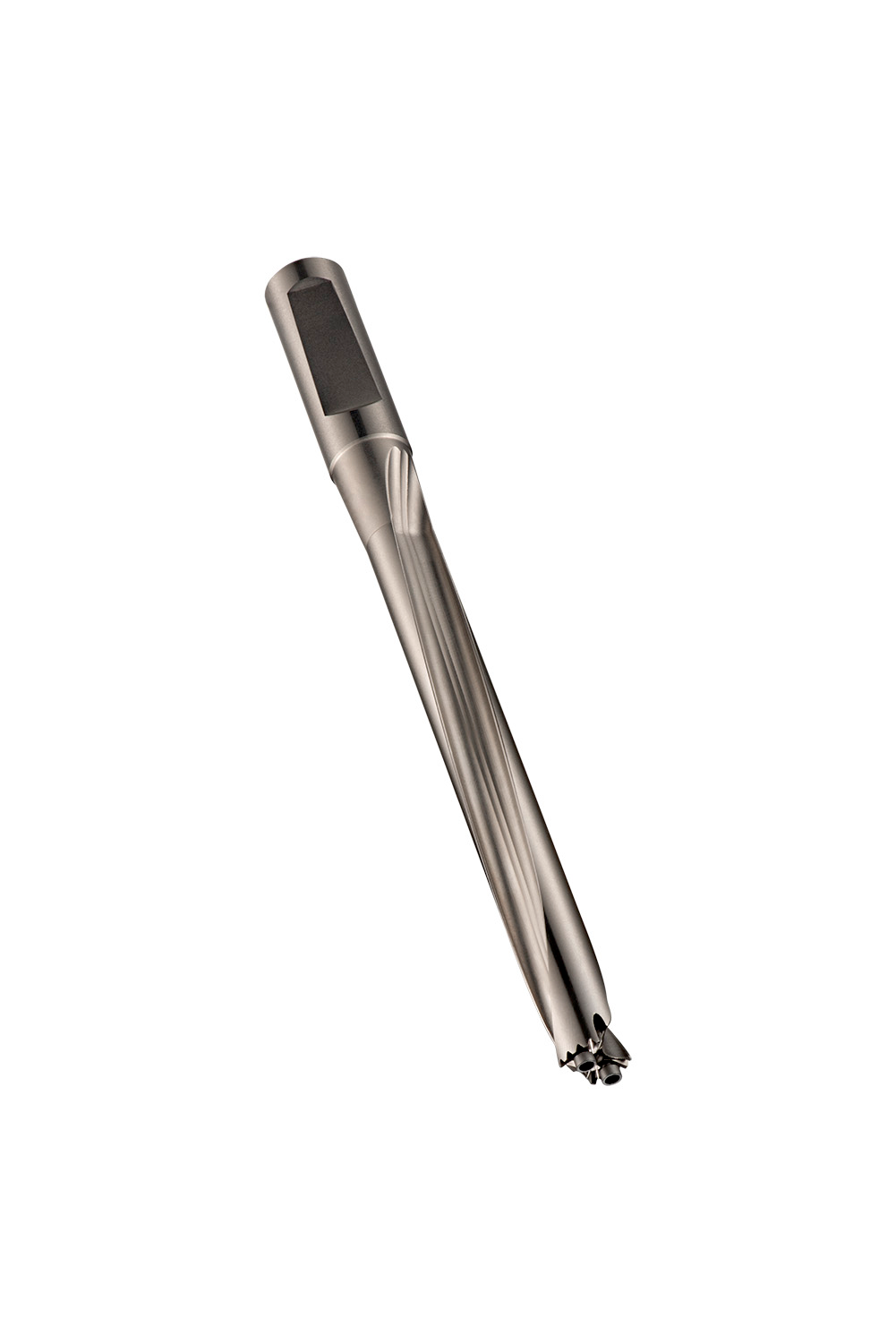

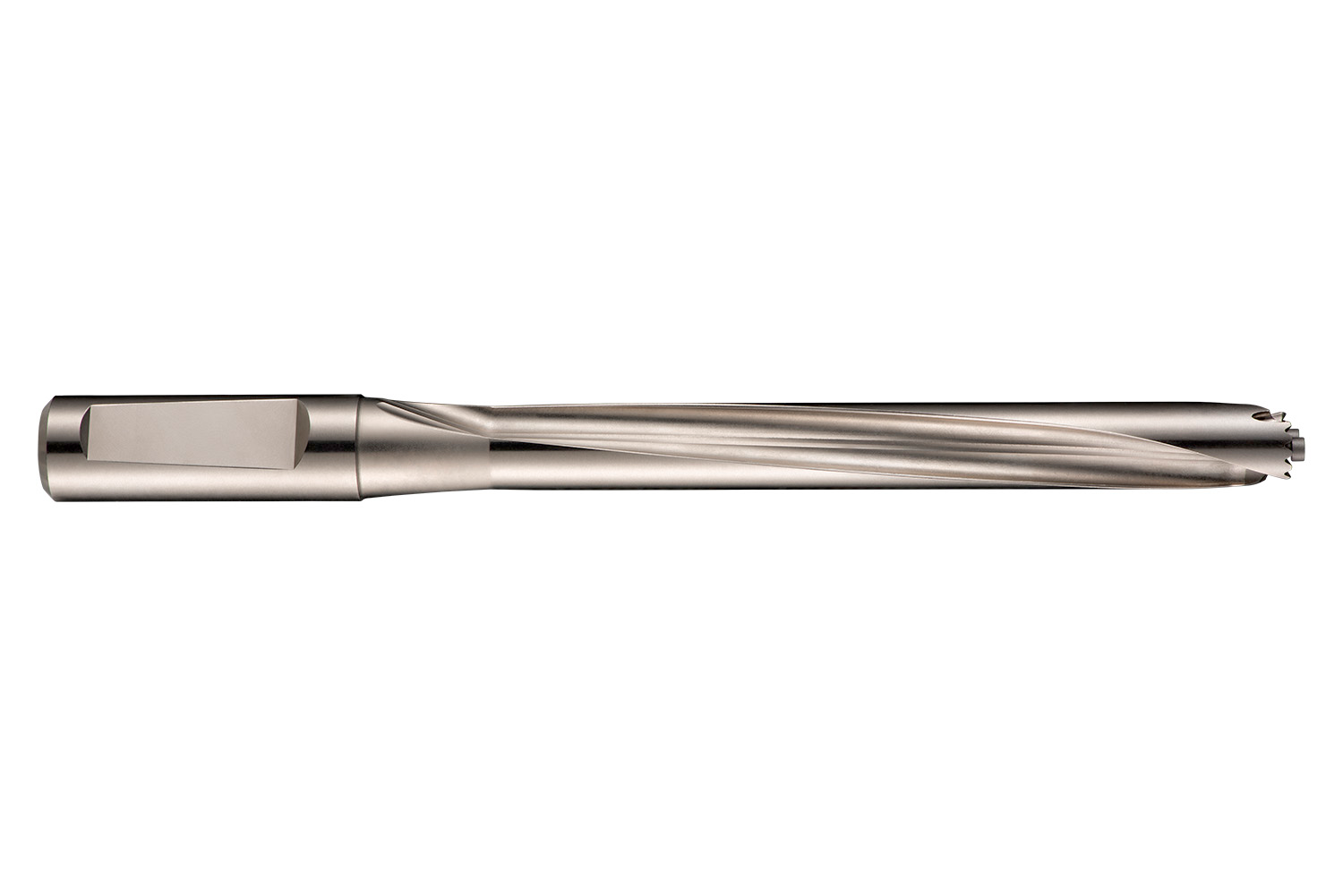

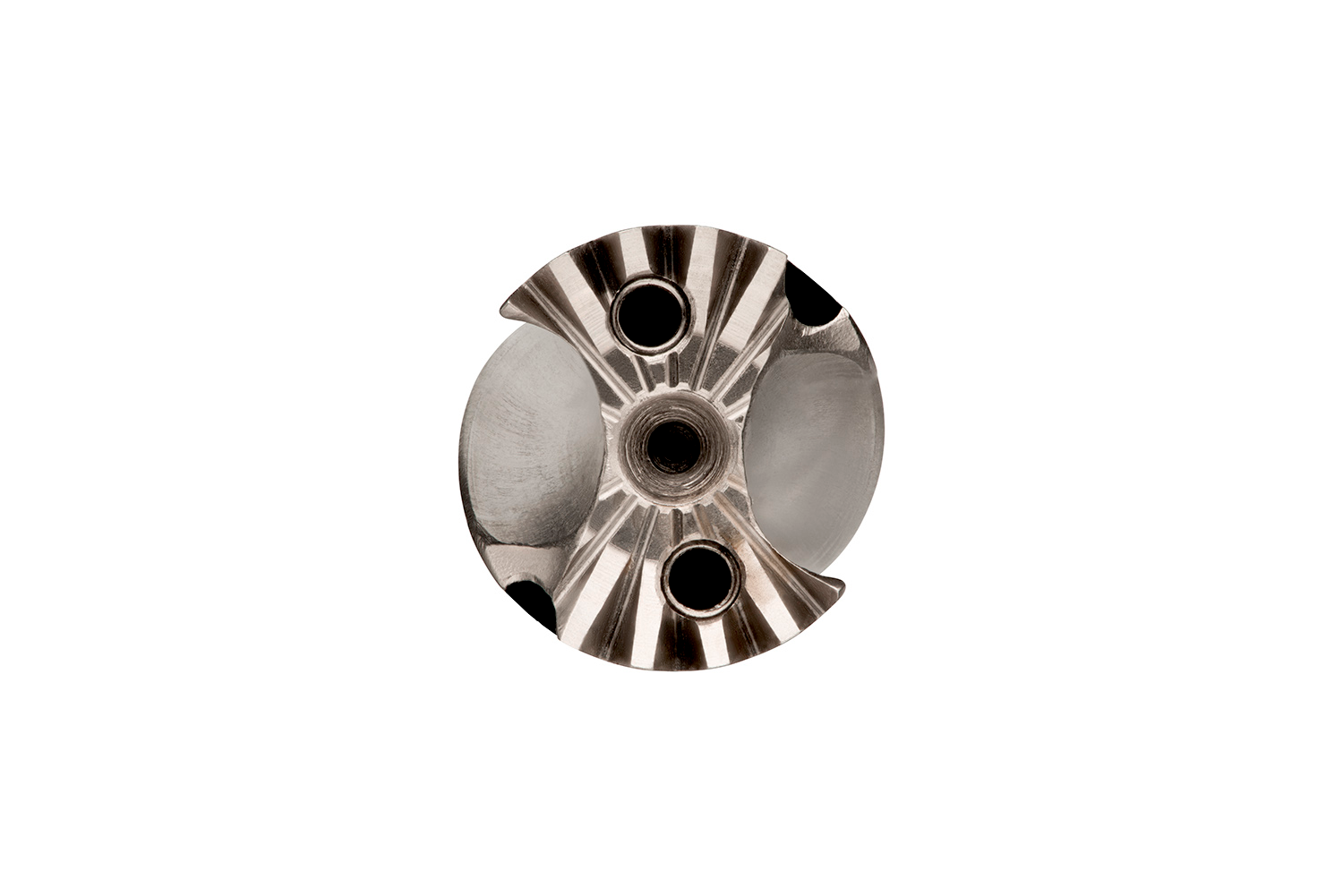

Replaceable head drill body HYDRA with DIN 6535HB NC weldon shank, size 41.0mm with an overall length of 451.5mm and flute length of 351.5mm according to DORMER standard for 8xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 39.69 up to 41mm

Additional information

Weight 1.7875 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760652664
Product number (SAP): 86018431
Ordering code ANSI: H85841.0
Product Line: HYDRA
Gross weight – grams: 2628

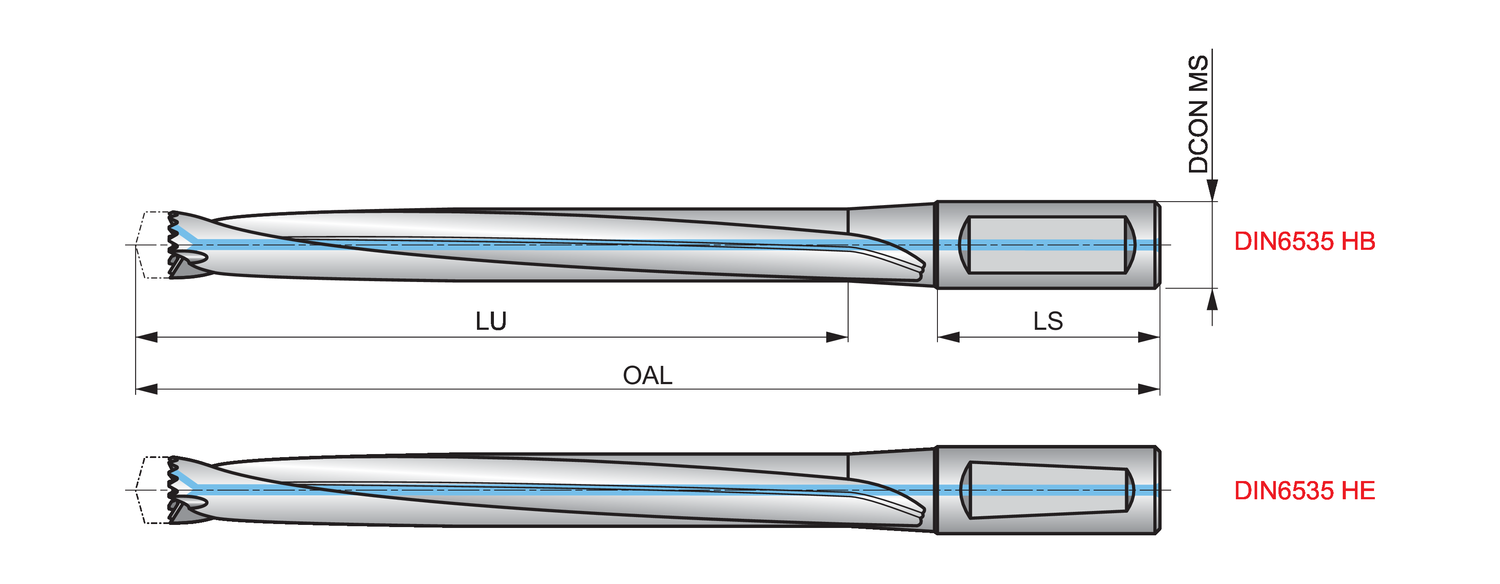

Connection diameter – millimeter (DCON MS): 40 mm
Usable Length – millimeter (LU): 351.5 mm
Overall length – millimeter (OAL): 451.5 mm
Shank length – millimeter (LS): 70 mm
Connection norm (ADINTMS): DIN6535HB
ISO: H85841.0

Brand

DORMER
