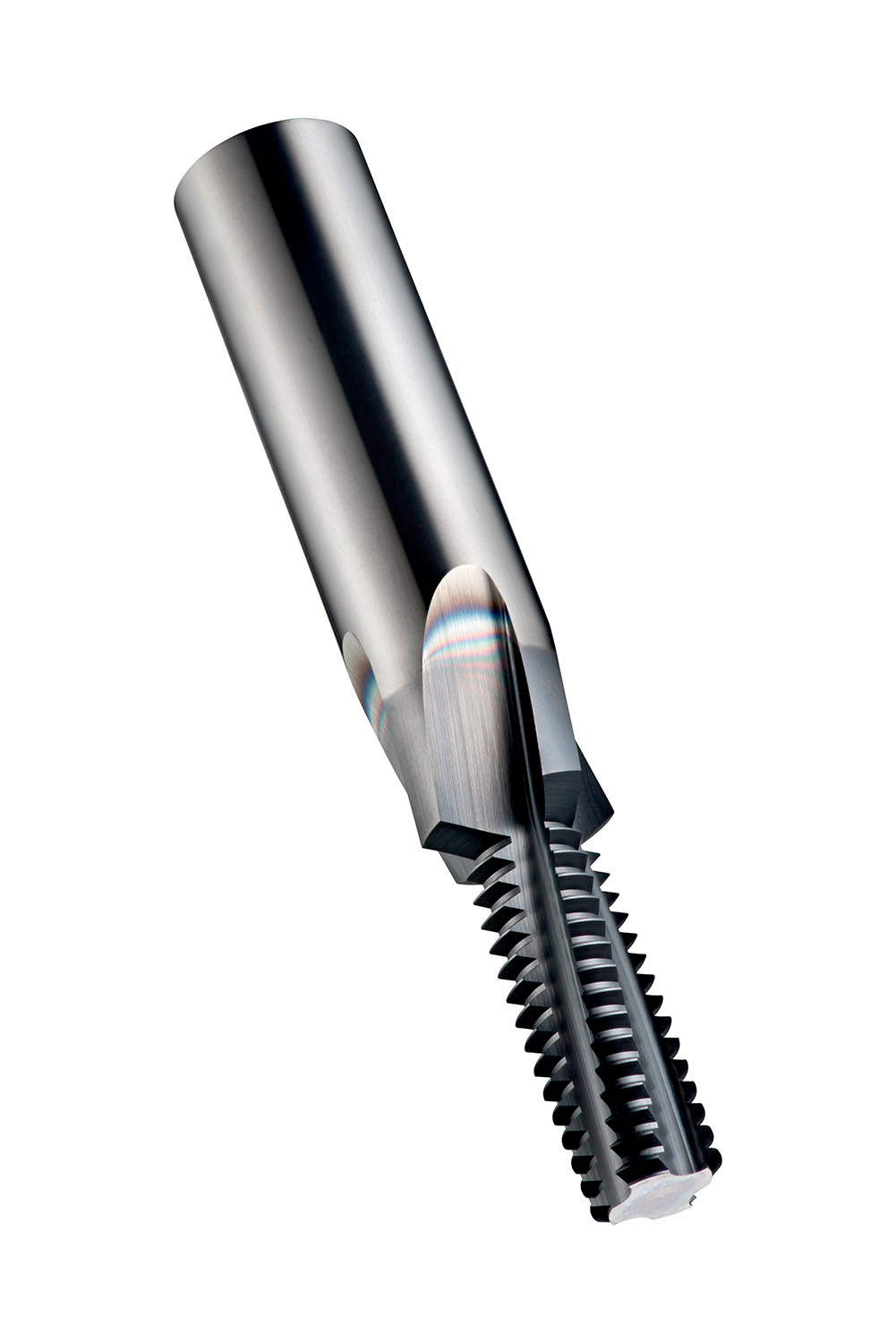

DORMER J2003.2X.7 Thread mill cutter

Description

Thread and chamfer milling cutter, for ISO-Metric thread ≥ M4 with 0.70 mm pitch, dimensions according to DORMER standard with 3 flutes, 3.2mm cutting diameter and 6mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 8.4mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and non-ferrous metals

Additional information

Weight	0.2585 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 7320760688670 Product number (SAP): 86024744 Ordering code ANSI: J2003.2X.7 Gross weight – grams: 23.5 Thread diameter size (TDZ): M4 Thread pitch – millimeter (TP): 0.7 mm Cutting diameter – millimeter (DC): 3.2 mm Depth of cut maximum – millimeter (APMX): 8.4 mm Overall length – millimeter (OAL): 57 mm Connection diameter – millimeter (DCON MS): 6 mm Flute count (NOF): 3 Usable Length – millimeter (LU): 9.5 mm Tool With Countersink: Yes ISO: J2003.2X.7

Need Technical Advice?

Description

Additional information

Brand

DORMER
