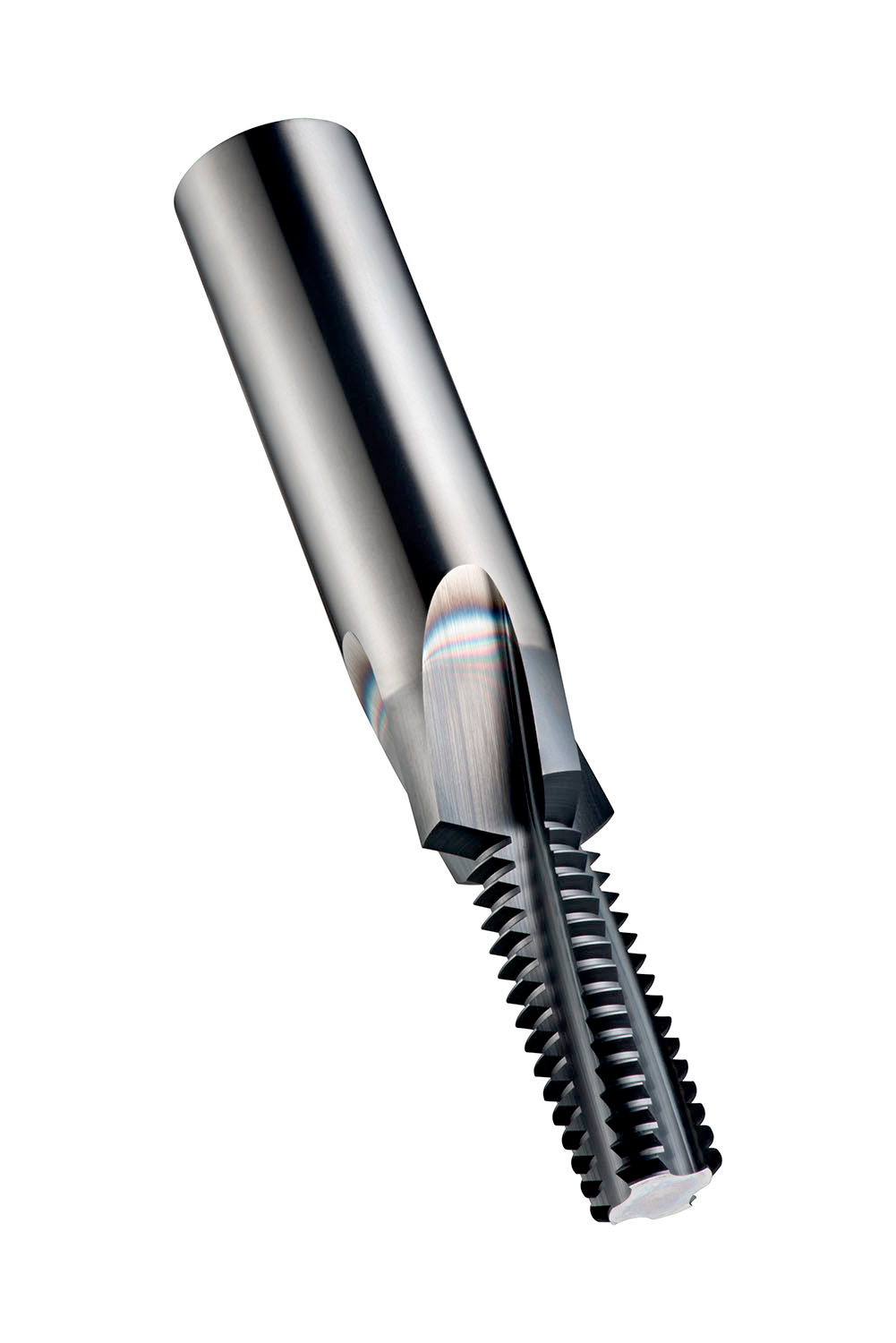

DORMER J2004.1X.8 Thread mill cutter

Product Code: J2004.1X.8

$288.92$262.65 Ex. GST

Product Code: J2004.1X.8 SKU J2004.1X.8 Categories , ,
DORMER J2004.1X.8 Thread mill cutter

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Thread and chamfer milling cutter, for ISO-Metric thread ≥ M5 with 0.80 mm pitch, dimensions according to DORMER standard with 3 flutes, 4.1mm cutting diameter and 6mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 11.2mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and non-ferrous metals

Additional information

Weight 0.2805 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760688687
Product number (SAP): 86024745
Ordering code ANSI: J2004.1X.8
Gross weight – grams: 23.8
Thread diameter size (TDZ): M5
Thread pitch – millimeter (TP): 0.8 mm
Cutting diameter – millimeter (DC): 4.1 mm
Depth of cut maximum – millimeter (APMX): 11.2 mm
Overall length – millimeter (OAL): 57 mm
Connection diameter – millimeter (DCON MS): 6 mm
Flute count (NOF): 3
Usable Length – millimeter (LU): 12.1 mm
Tool With Countersink: Yes
ISO: J2004.1X.8

Brand

DORMER
