DORMER J2008.2X1.5 Thread mill cutter

Product Code: J2008.2X1.5

$475.86$432.60 Ex. GST

Product Code: J2008.2X1.5 SKU J2008.2X1.5 Categories , ,
DORMER J2008.2X1.5 Thread mill cutter

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

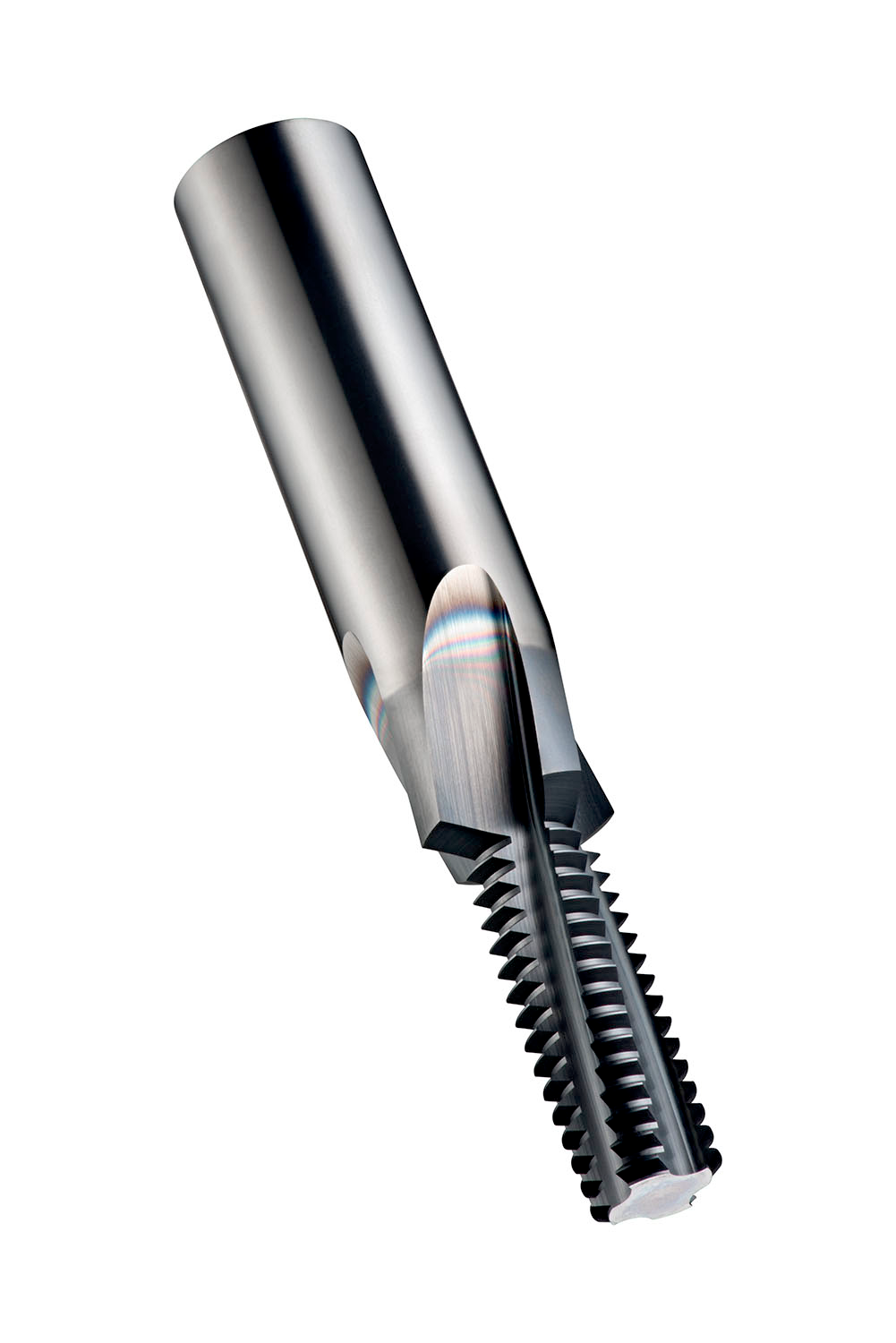

Thread and chamfer milling cutter, for ISO-Metric thread ≥ M10 with 1.50 mm pitch, dimensions according to DORMER standard with 3 flutes, 8.2mm cutting diameter and 12mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 21mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and non-ferrous metals

Additional information

Weight 0.4620 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760688717
Product number (SAP): 86024748
Ordering code ANSI: J2008.2X1.5
Gross weight – grams: 104.3
Thread diameter size (TDZ): M10
Thread pitch – millimeter (TP): 1.5 mm
Cutting diameter – millimeter (DC): 8.2 mm
Depth of cut maximum – millimeter (APMX): 21 mm
Overall length – millimeter (OAL): 83 mm
Connection diameter – millimeter (DCON MS): 12 mm
Flute count (NOF): 3
Usable Length – millimeter (LU): 22.8 mm
Tool With Countersink: Yes
ISO: J2008.2X1.5

Brand

DORMER
