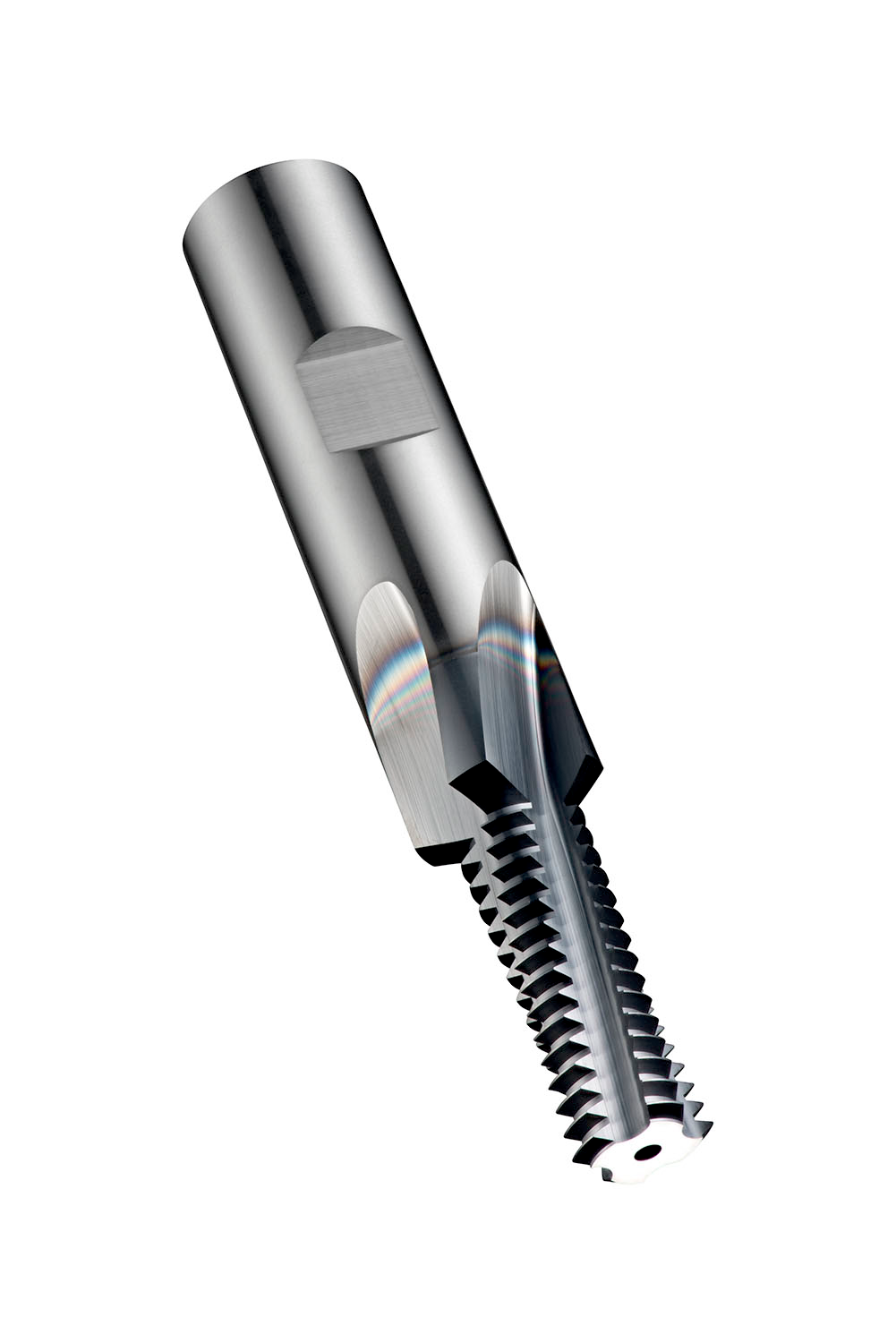

DORMER J2056.5X1.25 Thread mill cutter

Description

Thread and chamfer milling cutter, for ISO-Metric thread ≥ M8 with 1.25 mm pitch, dimensions according to DORMER standard with 3 flutes, 6.5mm cutting diameter and 10mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating, through coolant holes and 10° helix angle for milling a maximum of 17.5mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals and titanium or titanium alloys

Additional information

Weight	0.4389 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 7320760688755 Product number (SAP): 86024752 Ordering code ANSI: J2056.5X1.25 Gross weight – grams: 62 Thread diameter size (TDZ): M8 Thread pitch – millimeter (TP): 1.25 mm Cutting diameter – millimeter (DC): 6.5 mm Depth of cut maximum – millimeter (APMX): 17.5 mm Overall length – millimeter (OAL): 72 mm Connection diameter – millimeter (DCON MS): 10 mm Flute count (NOF): 3 Usable Length – millimeter (LU): 19.1 mm Tool With Countersink: Yes ISO: J2056.5X1.25

Need Technical Advice?

Description

Additional information

Brand

DORMER
