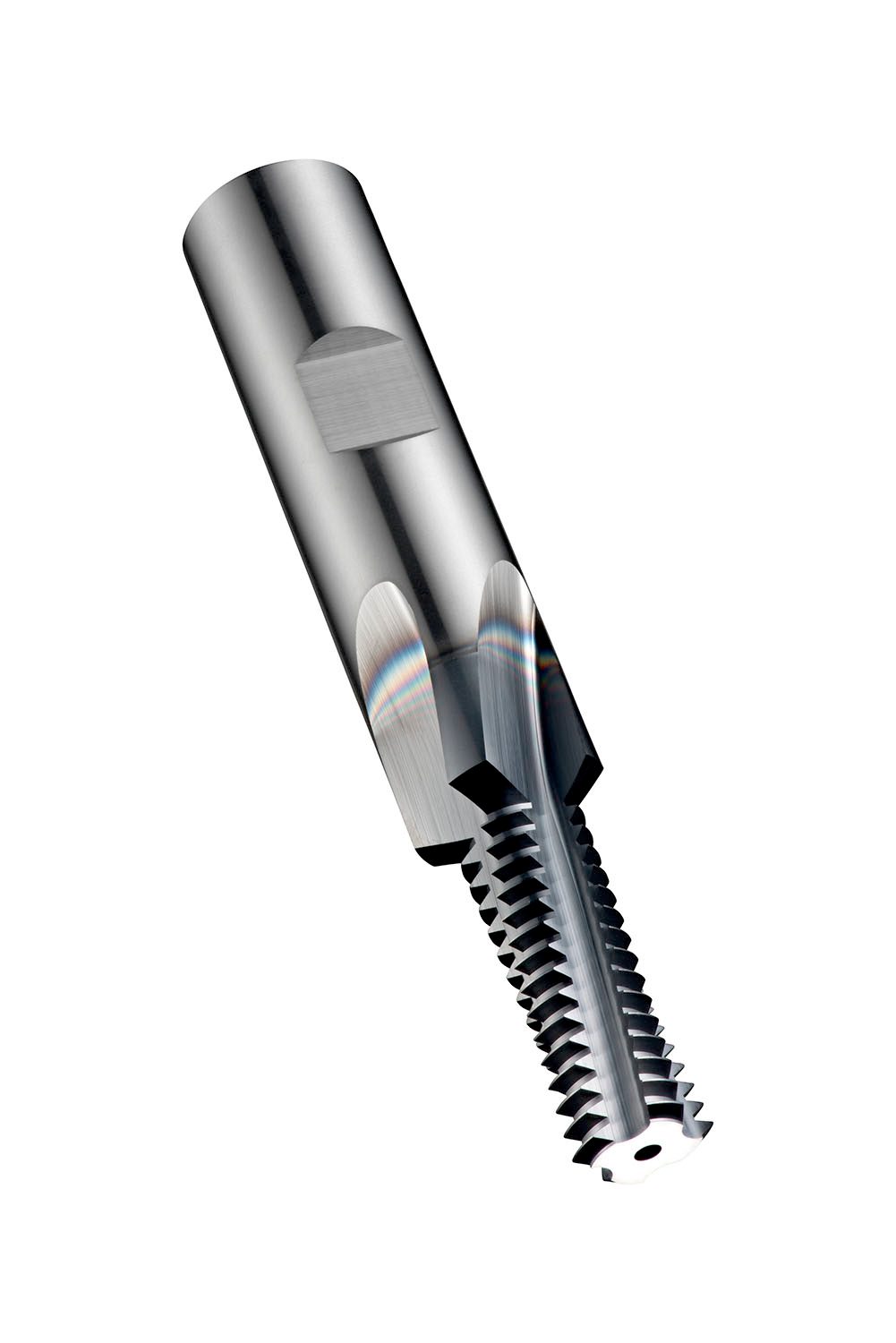

DORMER J2059.9X1.75 Thread mill cutter

Description

Thread and chamfer milling cutter, for ISO-Metric thread ≥ M12 with 1.75 mm pitch, dimensions according to DORMER standard with 4 flutes, 9.9mm cutting diameter and 14mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating, through coolant holes and 10° helix angle for milling a maximum of 26.25mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals and titanium or titanium alloys

Additional information

Weight	0.6677 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 7320760688779 Product number (SAP): 86024754 Ordering code ANSI: J2059.9X1.75 Gross weight – grams: 129 Thread diameter size (TDZ): M12 Thread pitch – millimeter (TP): 1.75 mm Cutting diameter – millimeter (DC): 9.9 mm Depth of cut maximum – millimeter (APMX): 26.25 mm Overall length – millimeter (OAL): 83 mm Connection diameter – millimeter (DCON MS): 14 mm Flute count (NOF): 4 Usable Length – millimeter (LU): 28.2 mm Tool With Countersink: Yes ISO: J2059.9X1.75

Need Technical Advice?

Description

Additional information

Brand

DORMER
