DORMER J2107.5X1.5 Thread mill cutter

Product Code: J2107.5X1.5

$428.27$389.34 Ex. GST

Product Code: J2107.5X1.5 SKU J2107.5X1.5 Categories , ,

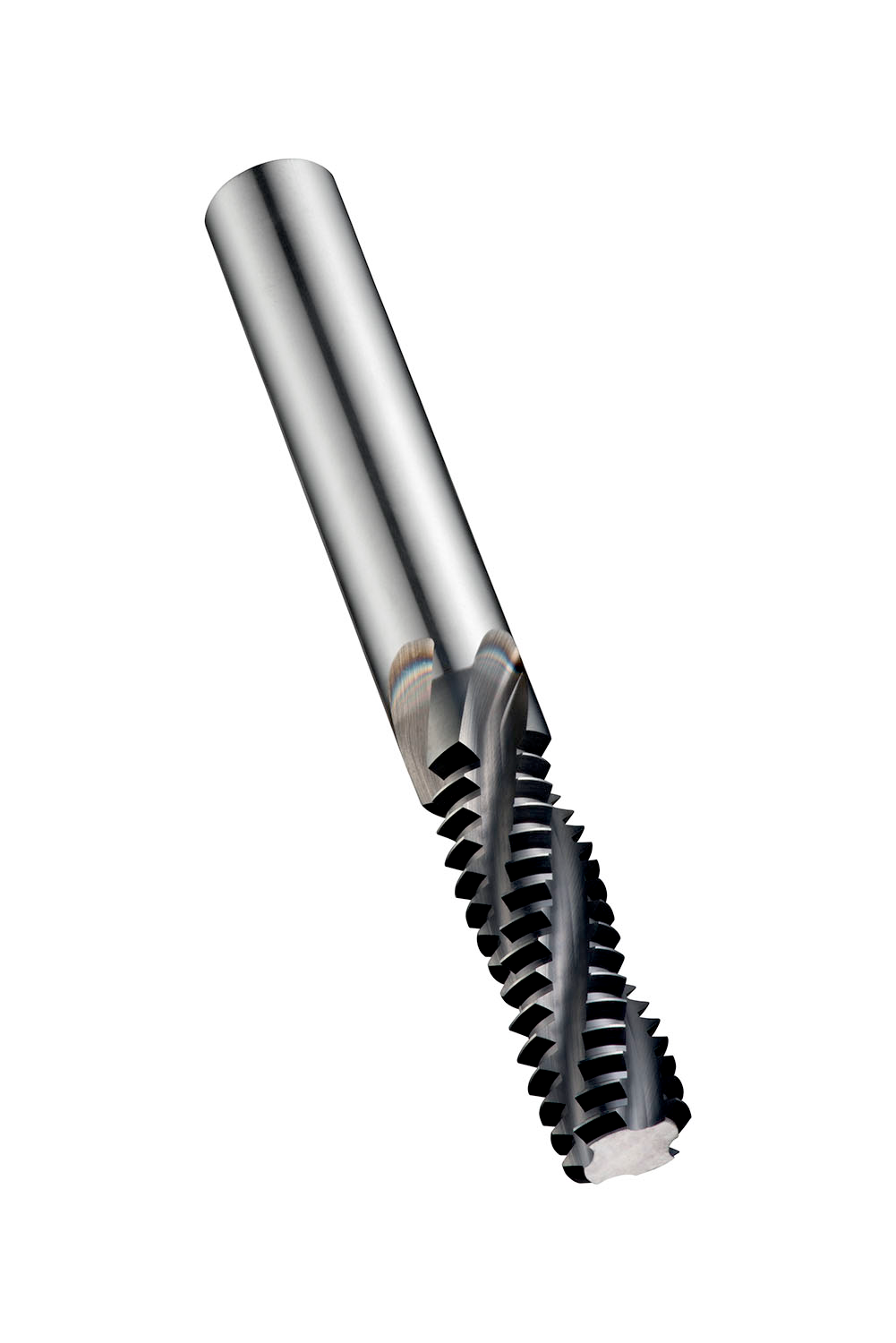

DORMER J2107.5X1.5 Thread mill cutter

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Thread milling cutter, for ISO-Metric thread ≥ M10 with 1.50 mm pitch, dimensions according to DORMER standard with 3 flutes, 7.5mm cutting diameter and 8mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 27° helix angle for milling a maximum of 21mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, chilled cast-iron

Additional information

Weight 0.4158 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760688823
Product number (SAP): 86024759
Ordering code ANSI: J2107.5X1.5
Gross weight – grams: 48
Thread diameter size (TDZ): M10
Thread pitch – millimeter (TP): 1.5 mm
Cutting diameter – millimeter (DC): 7.5 mm
Depth of cut maximum – millimeter (APMX): 21 mm
Overall length – millimeter (OAL): 72 mm
Connection diameter – millimeter (DCON MS): 8 mm
Flute count (NOF): 3
ISO: J2107.5X1.5

Brand

DORMER
