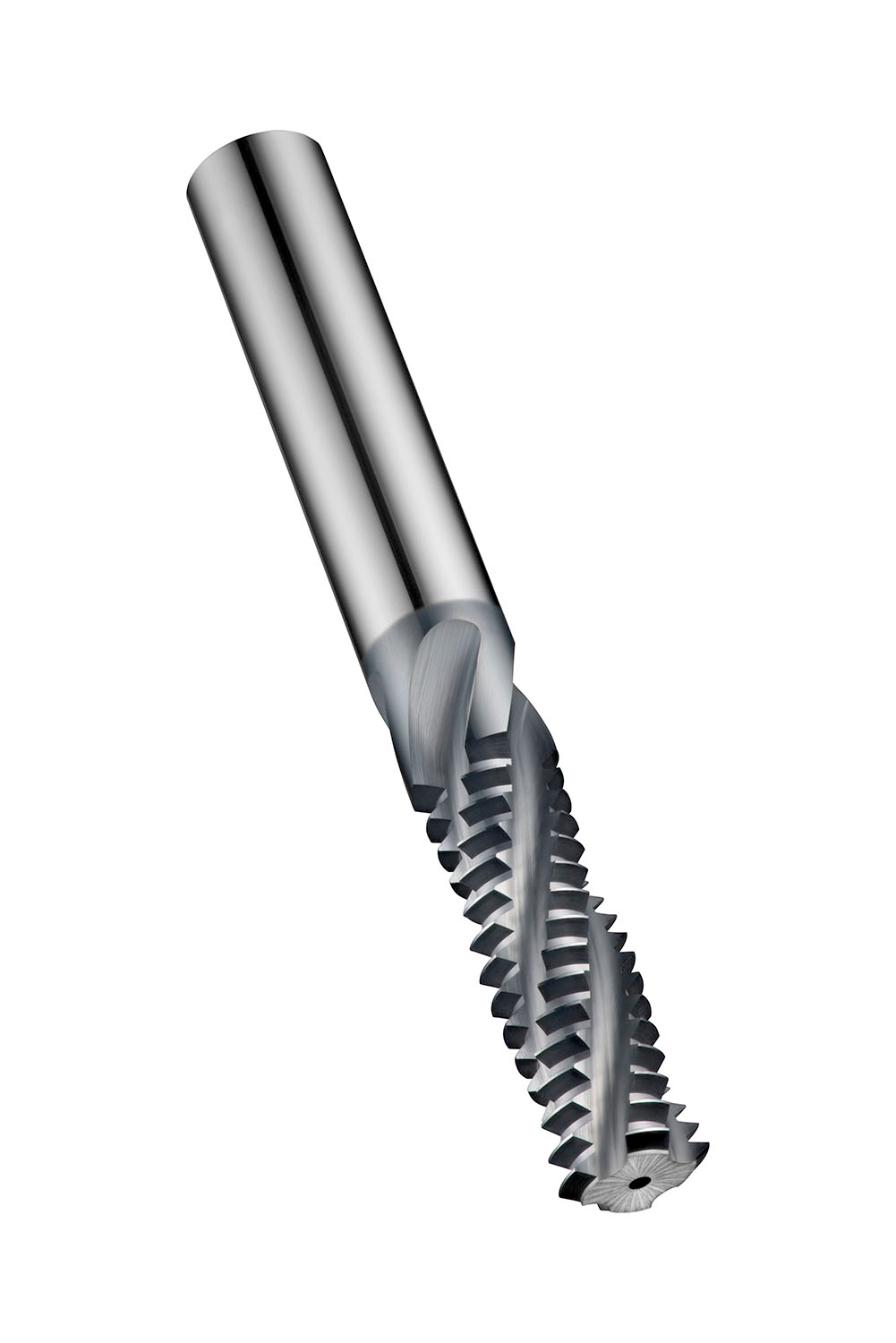

DORMER J21512.0X2.0 Thread mill cutter

Product Code: J21512.0X2.0

$1,006.10$914.64 Ex. GST

Product Code: J21512.0X2.0 SKU J21512.0X2.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Thread milling cutter, for ISO-Metric thread ≥ M16 with 2.00 mm pitch, dimensions according to DORMER standard with 4 flutes, 12mm cutting diameter and 12mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating, through coolant holes and 27° helix angle for milling a maximum of 34mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron

Additional information

Weight 0.9768 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760688854
Product number (SAP): 86024762
Ordering code ANSI: J21512.0X2.0
Gross weight – grams: 129
Thread diameter size (TDZ): M16
Thread pitch – millimeter (TP): 2 mm
Cutting diameter – millimeter (DC): 12 mm
Depth of cut maximum – millimeter (APMX): 34 mm
Overall length – millimeter (OAL): 92 mm
Connection diameter – millimeter (DCON MS): 12 mm
Flute count (NOF): 4
ISO: J21512.0X2.0

Brand

DORMER
