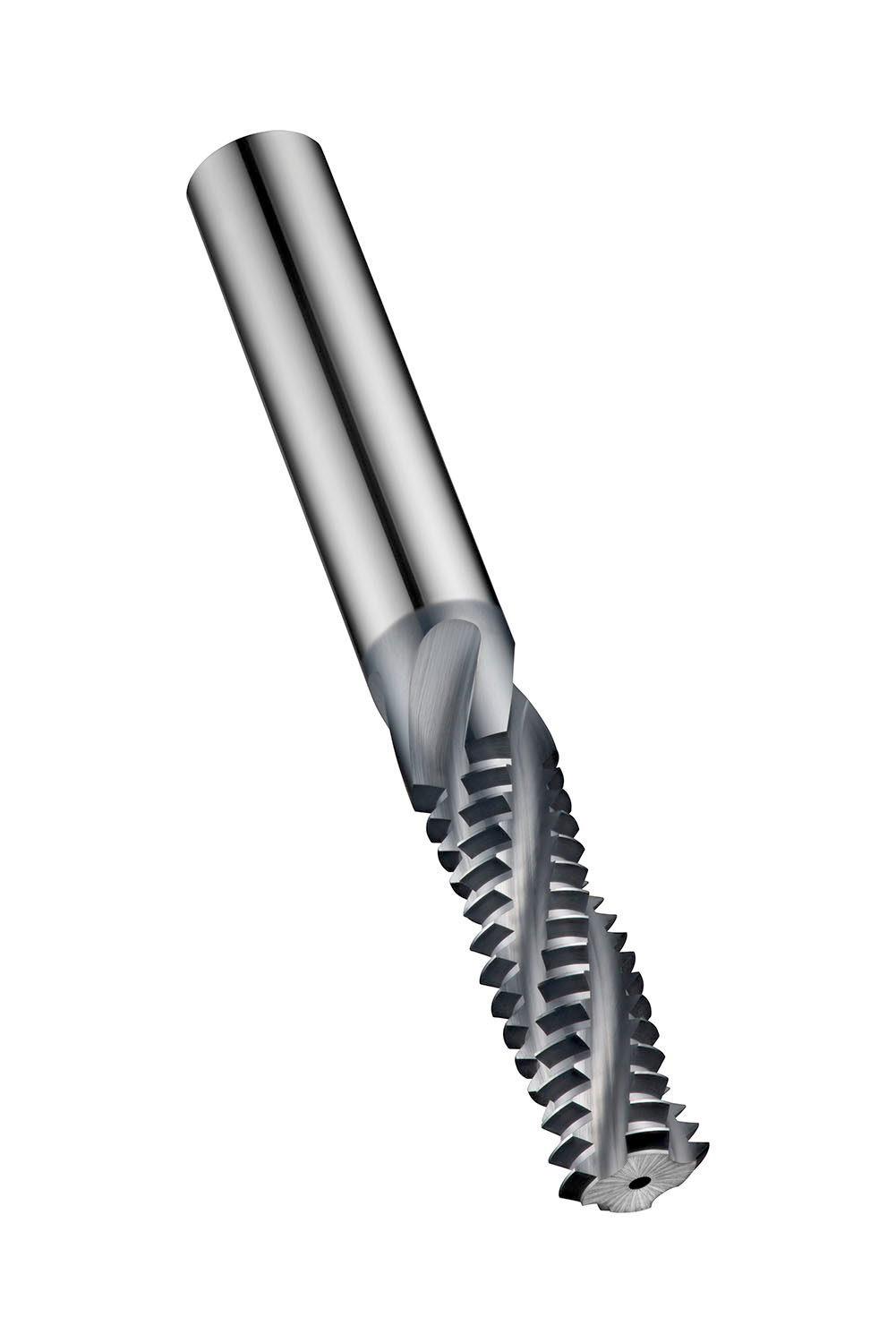

DORMER J2156.0X1.25 Thread mill cutter

Product Code: J2156.0X1.25

$410.15$372.86 Ex. GST

Product Code: J2156.0X1.25 SKU J2156.0X1.25 Categories , ,
DORMER J2156.0X1.25 Thread mill cutter

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Thread milling cutter, for ISO-Metric thread ≥ M8 with 1.25 mm pitch, dimensions according to DORMER standard with 3 flutes, 6mm cutting diameter and 6mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating, through coolant holes and 27° helix angle for milling a maximum of 17.5mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron

Additional information

Weight 0.3982 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760688878
Product number (SAP): 86024764
Ordering code ANSI: J2156.0X1.25
Gross weight – grams: 28
Thread diameter size (TDZ): M8
Thread pitch – millimeter (TP): 1.25 mm
Cutting diameter – millimeter (DC): 6 mm
Depth of cut maximum – millimeter (APMX): 17.5 mm
Overall length – millimeter (OAL): 65 mm
Connection diameter – millimeter (DCON MS): 6 mm
Flute count (NOF): 3
ISO: J2156.0X1.25

Brand

DORMER
