DORMER J22012.0X1.0 Thread mill cutter

Product Code: J22012.0X1.0

$735.32$668.47 Ex. GST

Product Code: J22012.0X1.0 SKU J22012.0X1.0 Categories , ,

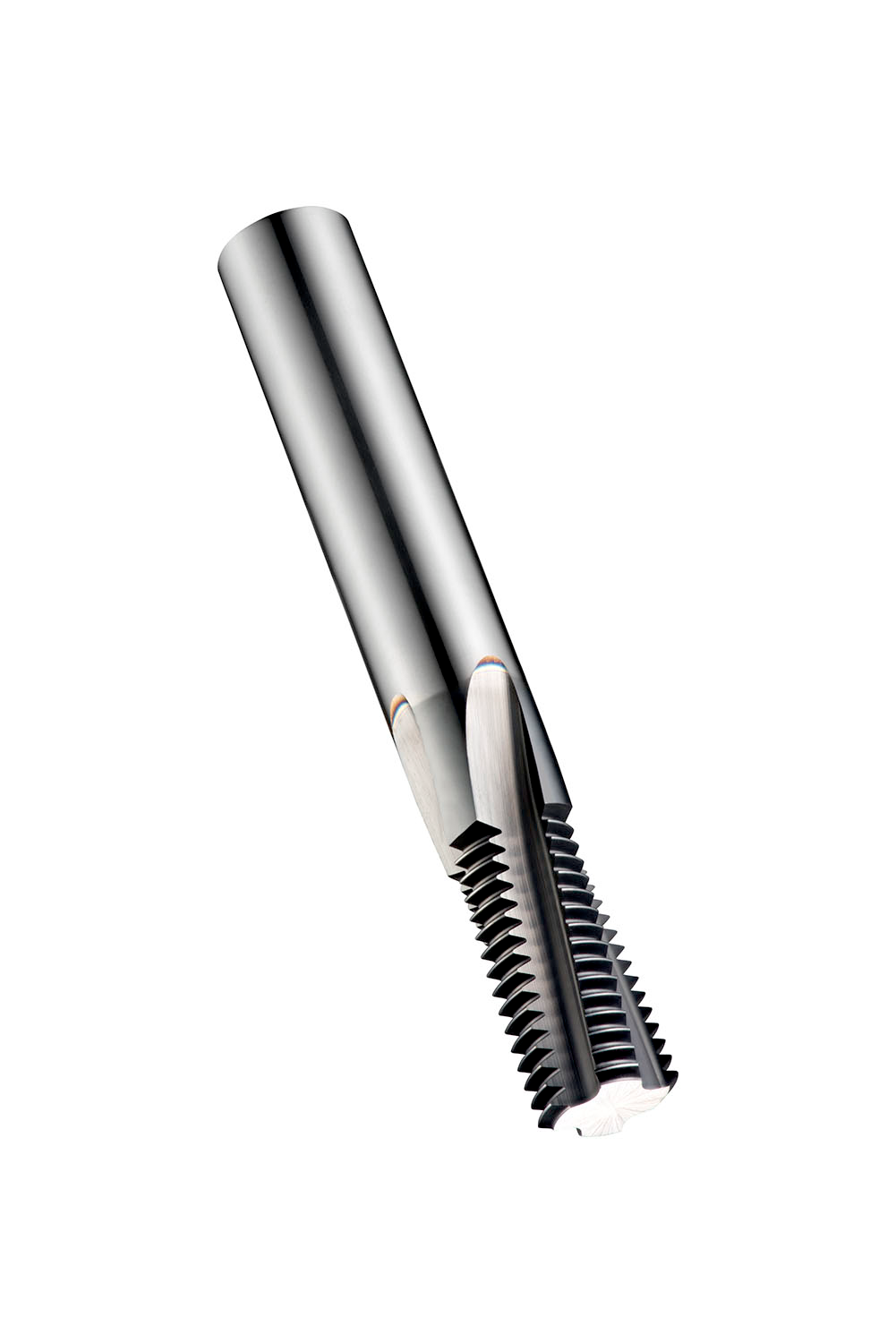

DORMER J22012.0X1.0 Thread mill cutter

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Thread milling cutter, for ISO-Metric Fine thread ≥ M14 with 1.00 mm pitch, dimensions according to DORMER standard with 4 flutes, 12mm cutting diameter and 12mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 22mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron

Additional information

Weight 0.7139 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760688922
Product number (SAP): 86024769
Ordering code ANSI: J22012.0X1.0
Gross weight – grams: 124
Thread diameter size (TDZ): M14
Thread pitch – millimeter (TP): 1 mm
Cutting diameter – millimeter (DC): 12 mm
Depth of cut maximum – millimeter (APMX): 22 mm
Overall length – millimeter (OAL): 83 mm
Connection diameter – millimeter (DCON MS): 12 mm
Flute count (NOF): 4
ISO: J22012.0X1.0

Brand

DORMER
