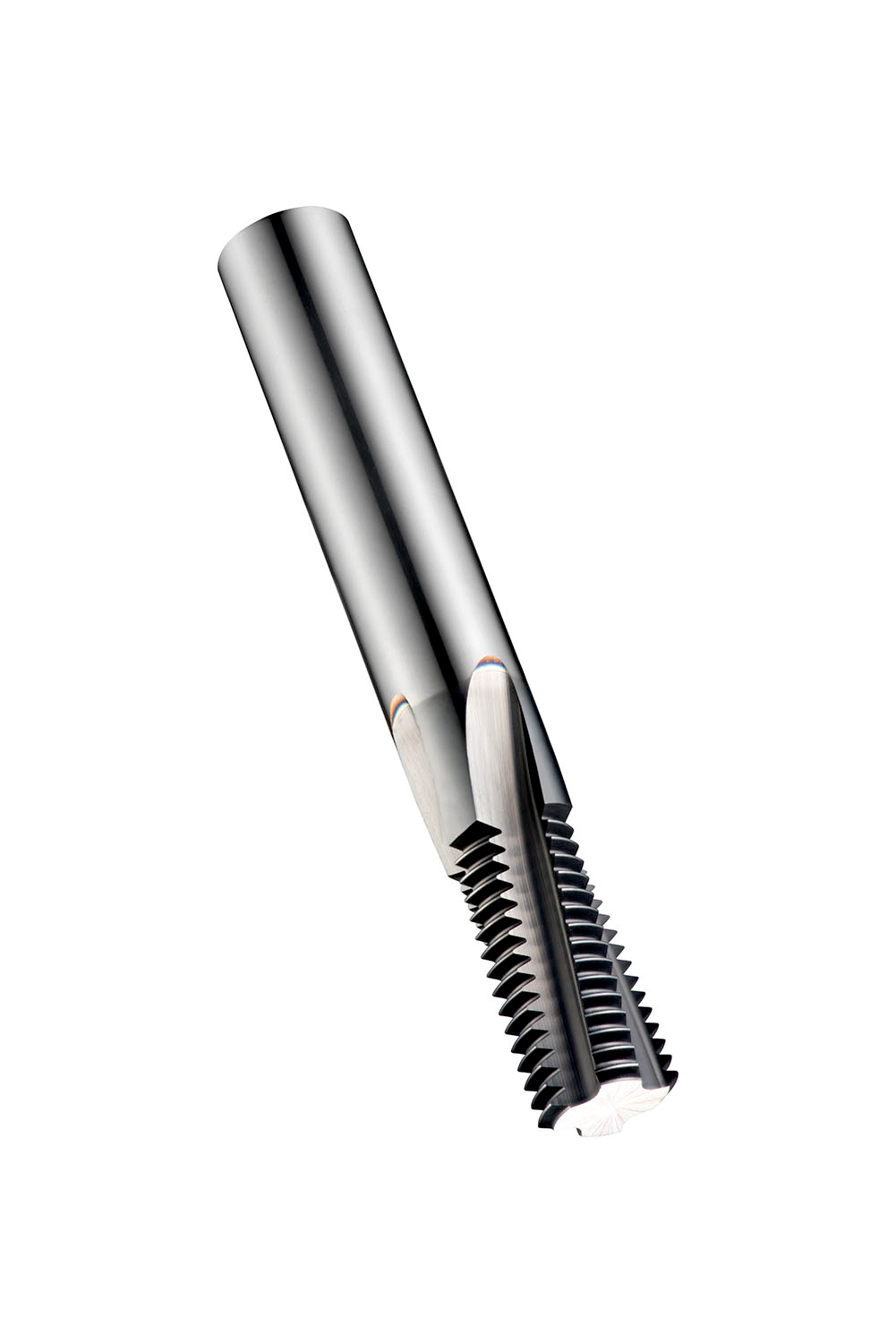

DORMER J22016.0X2.0 Thread mill cutter

Product Code: J22016.0X2.0

$1,086.55$987.77 Ex. GST

Product Code: J22016.0X2.0 SKU J22016.0X2.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Thread milling cutter, for ISO-Metric Fine thread ≥ M20 with 2.00 mm pitch, dimensions according to DORMER standard with 5 flutes, 16mm cutting diameter and 16mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 30mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron

Additional information

Weight 1.0549 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760688960
Product number (SAP): 86024773
Ordering code ANSI: J22016.0X2.0
Gross weight – grams: 237
Thread diameter size (TDZ): M20
Thread pitch – millimeter (TP): 2 mm
Cutting diameter – millimeter (DC): 16 mm
Depth of cut maximum – millimeter (APMX): 30 mm
Overall length – millimeter (OAL): 92 mm
Connection diameter – millimeter (DCON MS): 16 mm
Flute count (NOF): 5
ISO: J22016.0X2.0

Brand

DORMER
