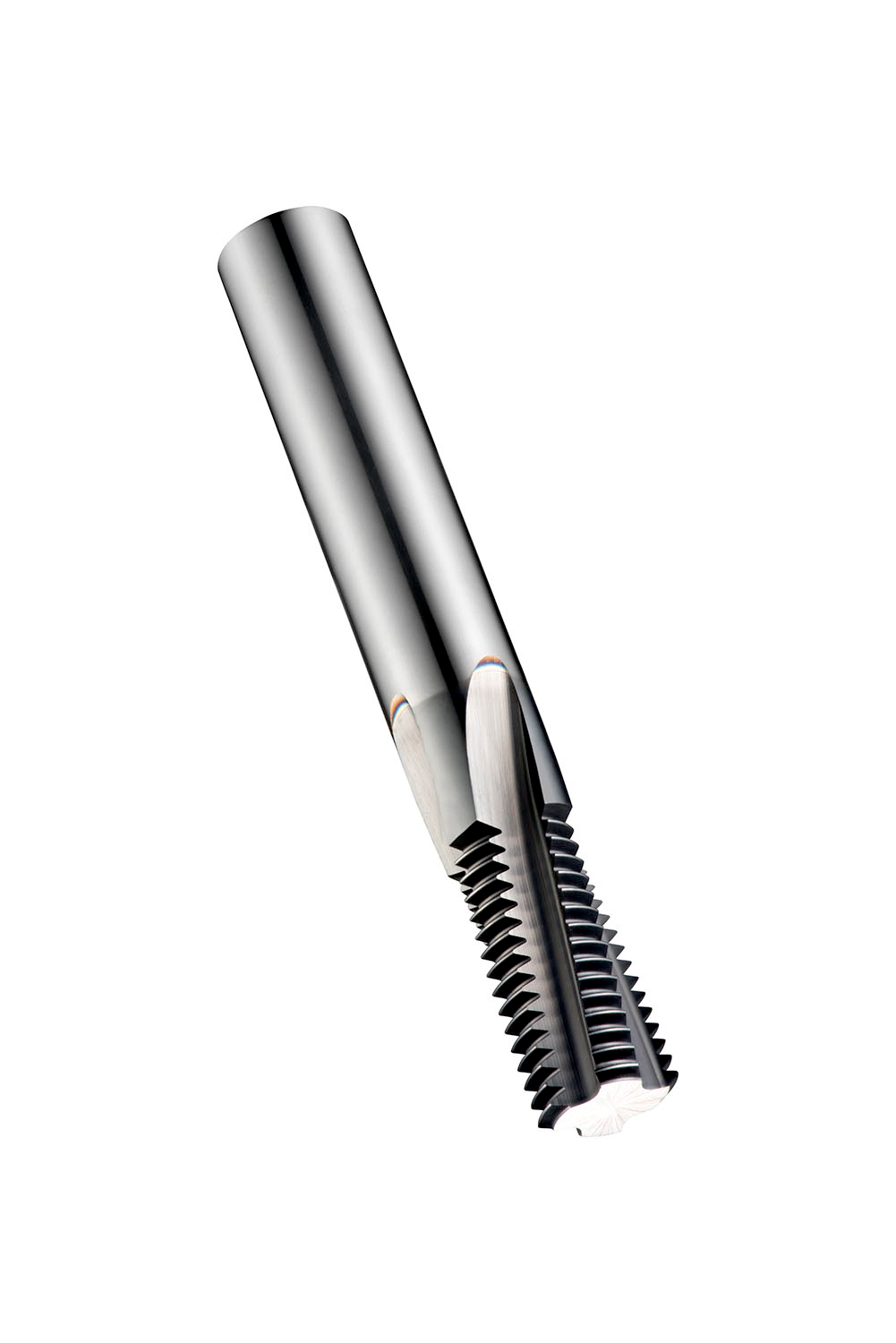

DORMER J2206.0X.75 Thread mill cutter

Product Code: J2206.0X.75

$369.36$335.78 Ex. GST

Product Code: J2206.0X.75 SKU J2206.0X.75 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Thread milling cutter, for ISO-Metric Fine thread ≥ M8 with 0.75 mm pitch, dimensions according to DORMER standard with 3 flutes, 6mm cutting diameter and 6mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 12mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron

Additional information

Weight 0.3586 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760689011
Product number (SAP): 86024778
Ordering code ANSI: J2206.0X.75
Gross weight – grams: 25.6
Thread diameter size (TDZ): M8
Thread pitch – millimeter (TP): 0.75 mm
Cutting diameter – millimeter (DC): 6 mm
Depth of cut maximum – millimeter (APMX): 12 mm
Overall length – millimeter (OAL): 57 mm
Connection diameter – millimeter (DCON MS): 6 mm
Flute count (NOF): 3
ISO: J2206.0X.75

Brand

DORMER
