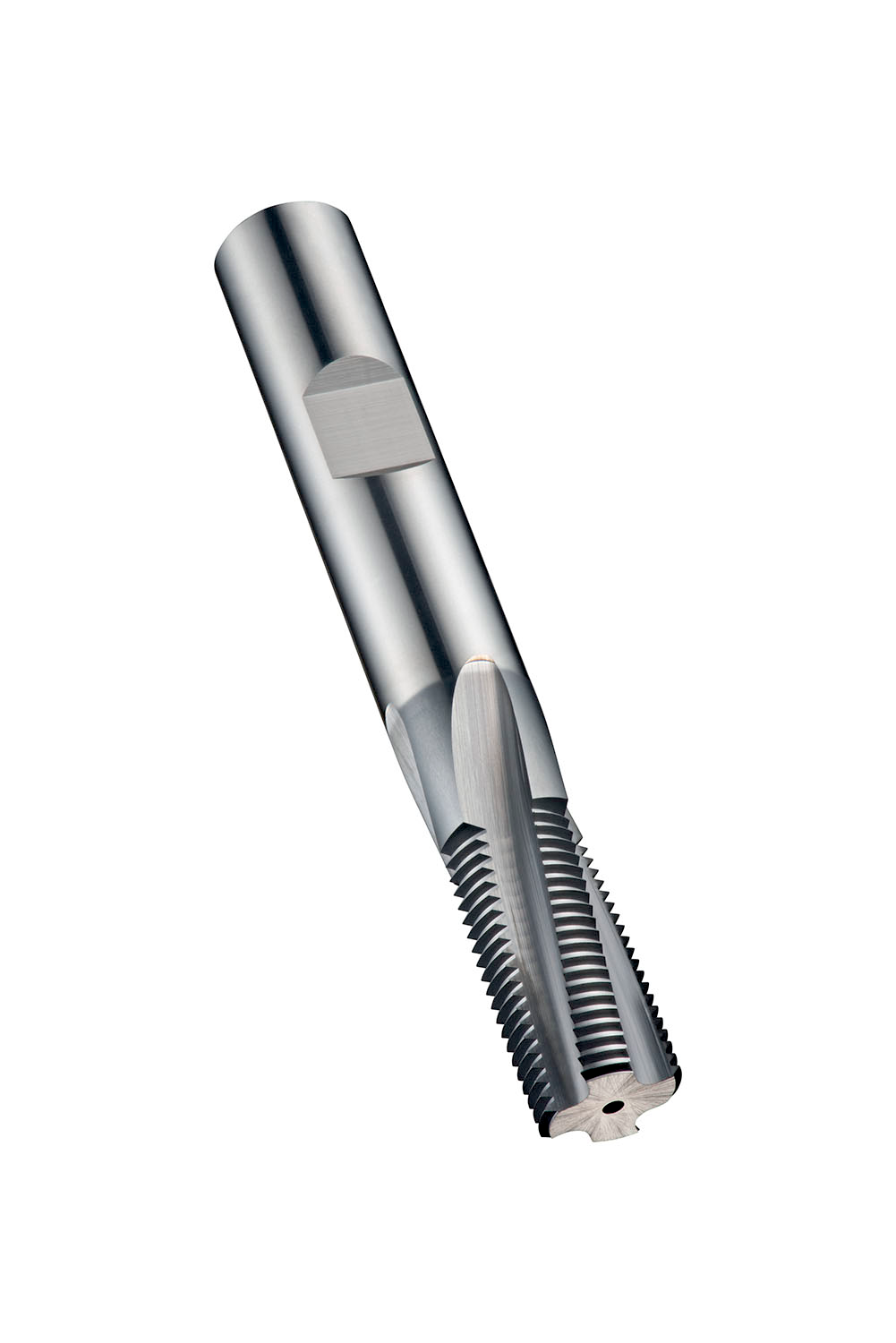

DORMER J22516.0X1.5 Thread mill cutter

Product Code: J22516.0X1.5

$1,206.65$1,096.95 Ex. GST

Product Code: J22516.0X1.5 SKU J22516.0X1.5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Thread milling cutter, for ISO-Metric Fine thread ≥ M18 with 1.50 mm pitch, dimensions according to DORMER standard with 5 flutes, 16mm cutting diameter and 16mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating, through coolant holes and 10° helix angle for milling a maximum of 30mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys and Co-based high-temperature alloys, chilled cast-iron

Additional information

Weight 1.1715 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760689066
Product number (SAP): 86024783
Ordering code ANSI: J22516.0X1.5
Gross weight – grams: 230
Thread diameter size (TDZ): M18
Thread pitch – millimeter (TP): 1.5 mm
Cutting diameter – millimeter (DC): 16 mm
Depth of cut maximum – millimeter (APMX): 30 mm
Overall length – millimeter (OAL): 92 mm
Connection diameter – millimeter (DCON MS): 16 mm
Flute count (NOF): 5
ISO: J22516.0X1.5

Brand

DORMER
