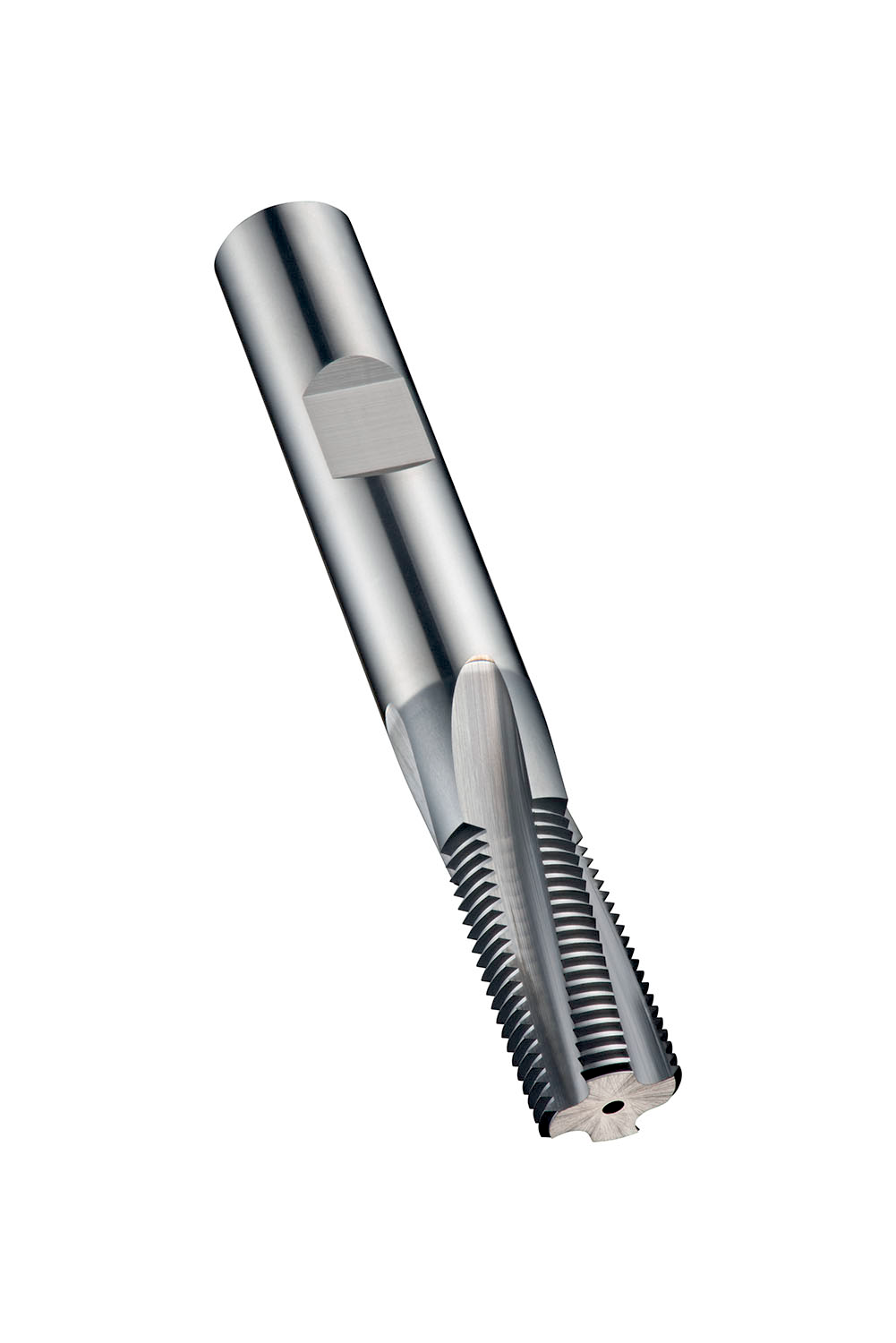

DORMER J2355.5-18 Thread mill cutter

Product Code: J2355.5-18

$389.75$354.32 Ex. GST

Product Code: J2355.5-18 SKU J2355.5-18 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Thread milling cutter, for Unified National Coarse thread ≥ UNC 5/16″ with 18 TPI, dimensions according to DORMER standard with 3 flutes, 5.5mm cutting diameter and 6mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating, through coolant holes and 10° helix angle for milling a maximum of 14mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron

Additional information

Weight 0.3784 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760689134
Product number (SAP): 86024790
Ordering code ANSI: J2355.5-18
Gross weight – grams: 25
Thread diameter size (TDZ): 5/16
Threads per inch (TPI): 18
Cutting diameter – millimeter (DC): 5.5 mm
Depth of cut maximum – millimeter (APMX): 14 mm
Overall length – millimeter (OAL): 57 mm
Connection diameter – millimeter (DCON MS): 6 mm
Flute count (NOF): 3
ISO: J2355.5-18

Brand

DORMER
