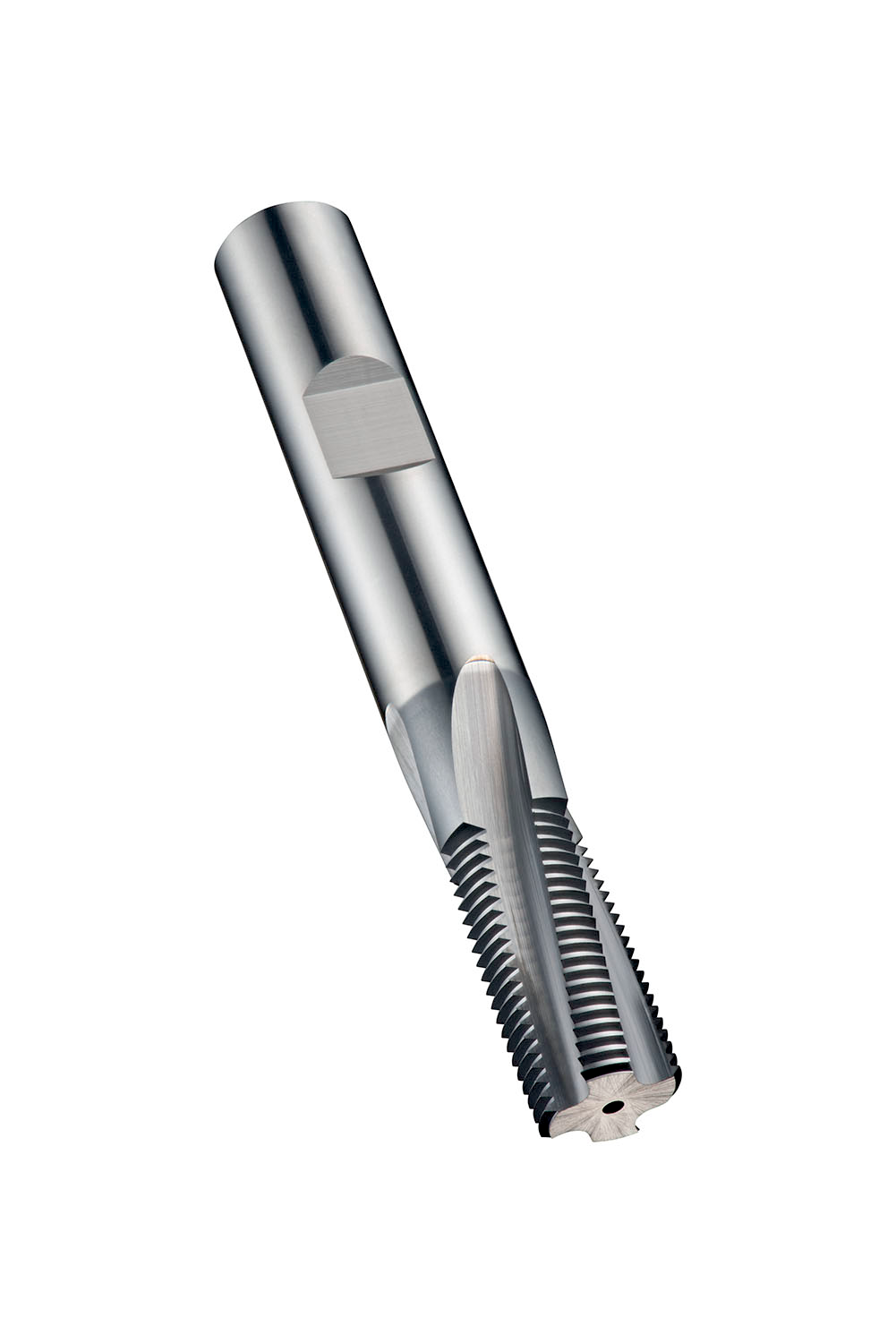

DORMER J2357.5-16 Thread mill cutter

Product Code: J2357.5-16

$429.41$390.37 Ex. GST

Product Code: J2357.5-16 SKU J2357.5-16 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Thread milling cutter, for Unified National Coarse thread ≥ UNC 3/8″ with 16 TPI, dimensions according to DORMER standard with 4 flutes, 7.5mm cutting diameter and 8mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating, through coolant holes and 10° helix angle for milling a maximum of 19mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron

Additional information

Weight 0.4169 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760689141
Product number (SAP): 86024791
Ordering code ANSI: J2357.5-16
Gross weight – grams: 41.2
Thread diameter size (TDZ): 3/8
Threads per inch (TPI): 16
Cutting diameter – millimeter (DC): 7.5 mm
Depth of cut maximum – millimeter (APMX): 19 mm
Overall length – millimeter (OAL): 63 mm
Connection diameter – millimeter (DCON MS): 8 mm
Flute count (NOF): 4
ISO: J2357.5-16

Brand

DORMER
