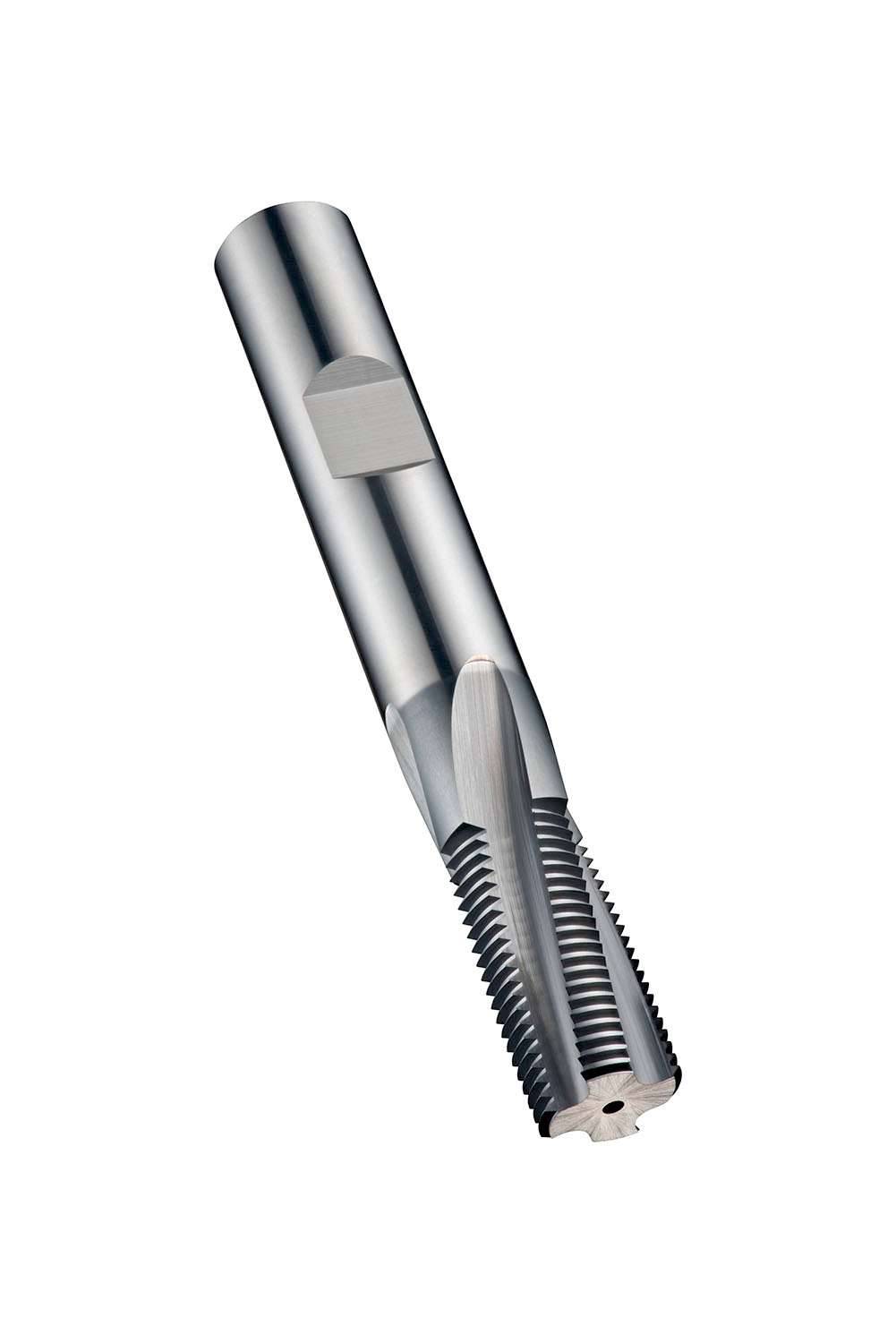

DORMER J24510.0-18 Thread mill cutter

Product Code: J24510.0-18

$593.69$539.72 Ex. GST

Product Code: J24510.0-18 SKU J24510.0-18 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Thread milling cutter, for Unified National Fine thread ≥ UNF 9/16″ with 18 TPI, dimensions according to DORMER standard with 4 flutes, 10mm cutting diameter and 10mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating, through coolant holes and 10° helix angle for milling a maximum of 22mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron

Additional information

Weight 0.5764 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760689202
Product number (SAP): 86024797
Ordering code ANSI: J24510.0-18
Gross weight – grams: 70
Thread diameter size (TDZ): 9/16
5/8
Threads per inch (TPI): 18
Cutting diameter – millimeter (DC): 10 mm
Depth of cut maximum – millimeter (APMX): 22 mm
Overall length – millimeter (OAL): 72 mm
Connection diameter – millimeter (DCON MS): 10 mm
Flute count (NOF): 4
ISO: J24510.0-18

Brand

DORMER
