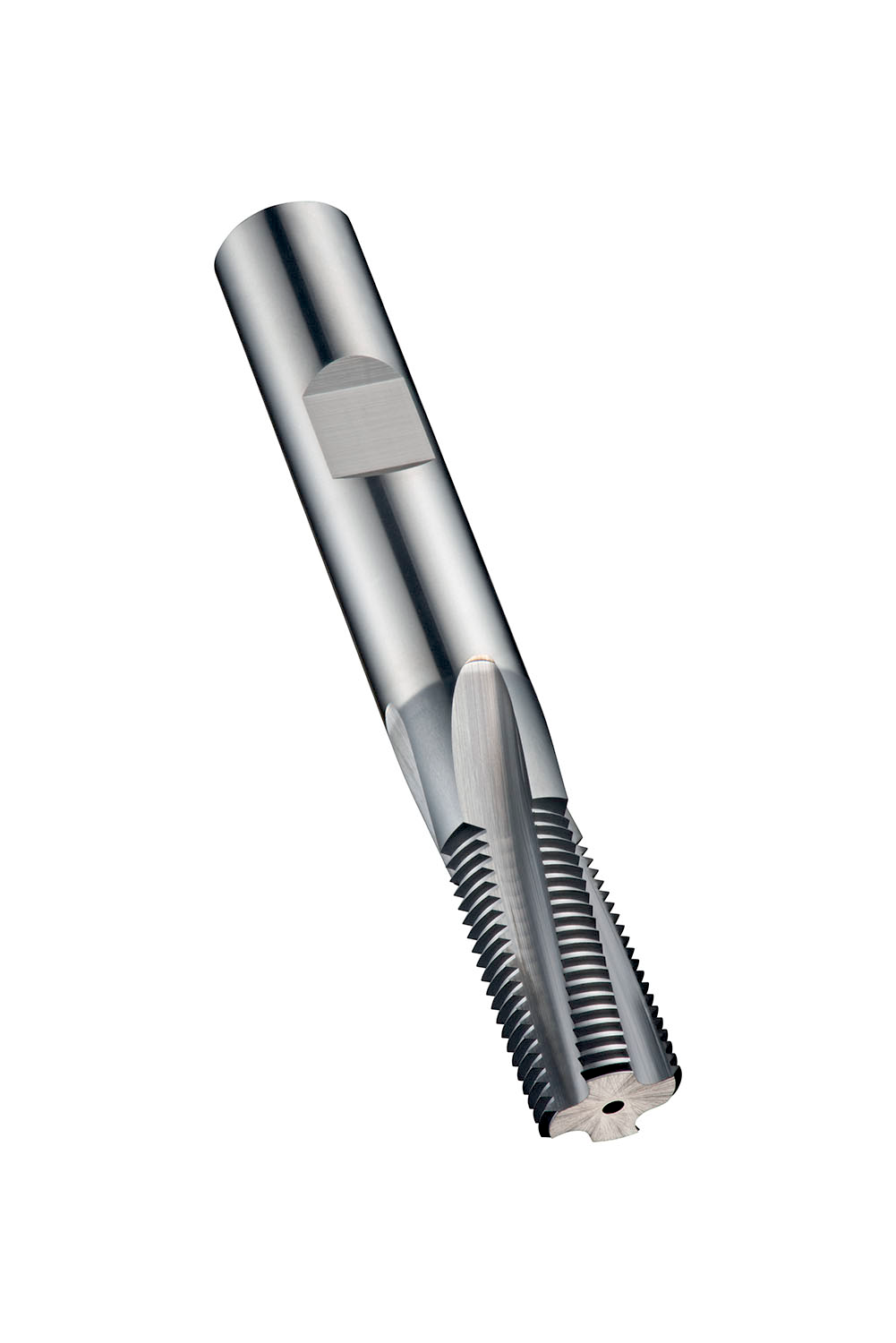

DORMER J24514.0-16 Thread mill cutter

Product Code: J24514.0-16

$956.25$869.32 Ex. GST

Product Code: J24514.0-16 SKU J24514.0-16 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Thread milling cutter, for Unified National Fine thread ≥ UNF 3/4″ with 16 TPI, dimensions according to DORMER standard with 5 flutes, 14mm cutting diameter and 14mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating, through coolant holes and 10° helix angle for milling a maximum of 32mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron

Additional information

Weight 0.9284 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760689219
Product number (SAP): 86024798
Ordering code ANSI: J24514.0-16
Gross weight – grams: 152
Thread diameter size (TDZ): 3/4
Threads per inch (TPI): 16
Cutting diameter – millimeter (DC): 14 mm
Depth of cut maximum – millimeter (APMX): 32 mm
Overall length – millimeter (OAL): 83 mm
Connection diameter – millimeter (DCON MS): 14 mm
Flute count (NOF): 5
ISO: J24514.0-16

Brand

DORMER
