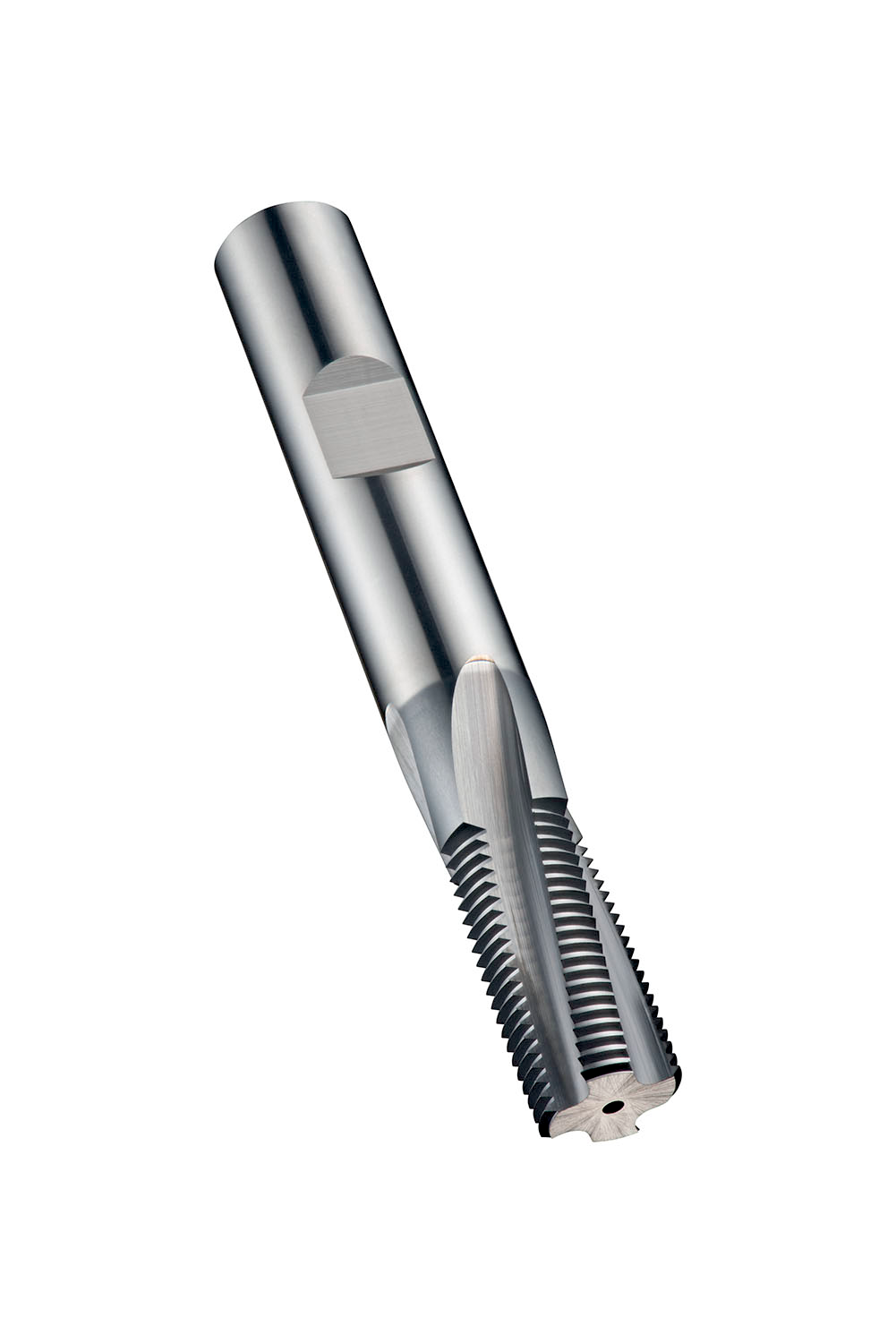

DORMER J2456.0-24 Thread mill cutter

Product Code: J2456.0-24

$389.75$354.32 Ex. GST

Product Code: J2456.0-24 SKU J2456.0-24 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Thread milling cutter, for Unified National Fine thread ≥ UNF 5/16″ with 24 TPI, dimensions according to DORMER standard with 3 flutes, 6mm cutting diameter and 6mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating, through coolant holes and 10° helix angle for milling a maximum of 14mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron

Additional information

Weight 0.3784 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760689233
Product number (SAP): 86024800
Ordering code ANSI: J2456.0-24
Gross weight – grams: 25.3
Thread diameter size (TDZ): 5/16
3/8
Threads per inch (TPI): 24
Cutting diameter – millimeter (DC): 6 mm
Depth of cut maximum – millimeter (APMX): 14 mm
Overall length – millimeter (OAL): 57 mm
Connection diameter – millimeter (DCON MS): 6 mm
Flute count (NOF): 3
ISO: J2456.0-24

Brand

DORMER
