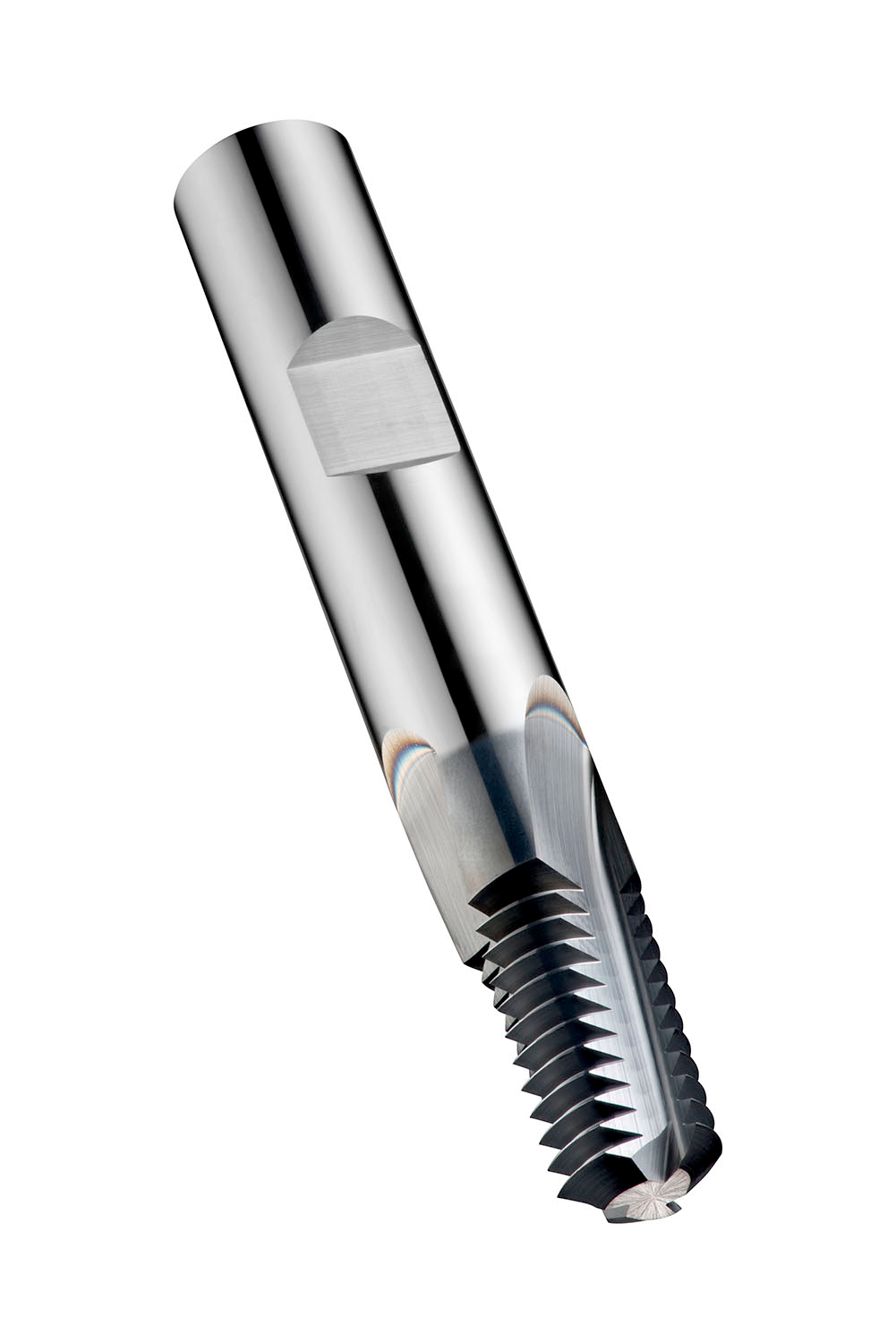

DORMER J2609.9-18 Thread mill cutter

Product Code: J2609.9-18

$563.10$511.91 Ex. GST

Product Code: J2609.9-18 SKU J2609.9-18 Categories , ,
DORMER J2609.9-18 Thread mill cutter

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Thread milling cutter, for National Pipe Taper thread ≥ NPT 1/4″ with 18 TPI, dimensions according to DORMER standard with 3 flutes, 9.9mm cutting diameter and 10mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 15.92mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron

Additional information

Weight 0.5467 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760689288
Product number (SAP): 86024805
Ordering code ANSI: J2609.9-18
Gross weight – grams: 70
Thread diameter size (TDZ): 1/4
3/8
Threads per inch (TPI): 18
Cutting diameter – millimeter (DC): 9.9 mm
Depth of cut maximum – millimeter (APMX): 15.92 mm
Overall length – millimeter (OAL): 66 mm
Connection diameter – millimeter (DCON MS): 10 mm
Flute count (NOF): 3
ISO: J2609.9-18

Brand

DORMER
