DORMER M9004 Rotary Burrs

Description: Value
Product name: M9004
Bolt size: M12 – M14
Drill size for low or medium tensile screws – millimeters: 5.5 mm
Drill size for high tensile screws +75 tons/sq.inch – millimeters: 6 mm
Bolt size imperial: 7/16" – 9/16"
Drill size for low or medium tensile screws – inch: 7/32
Drill size for high tensile screws +75 tons/sq.inch – inch: 15/64

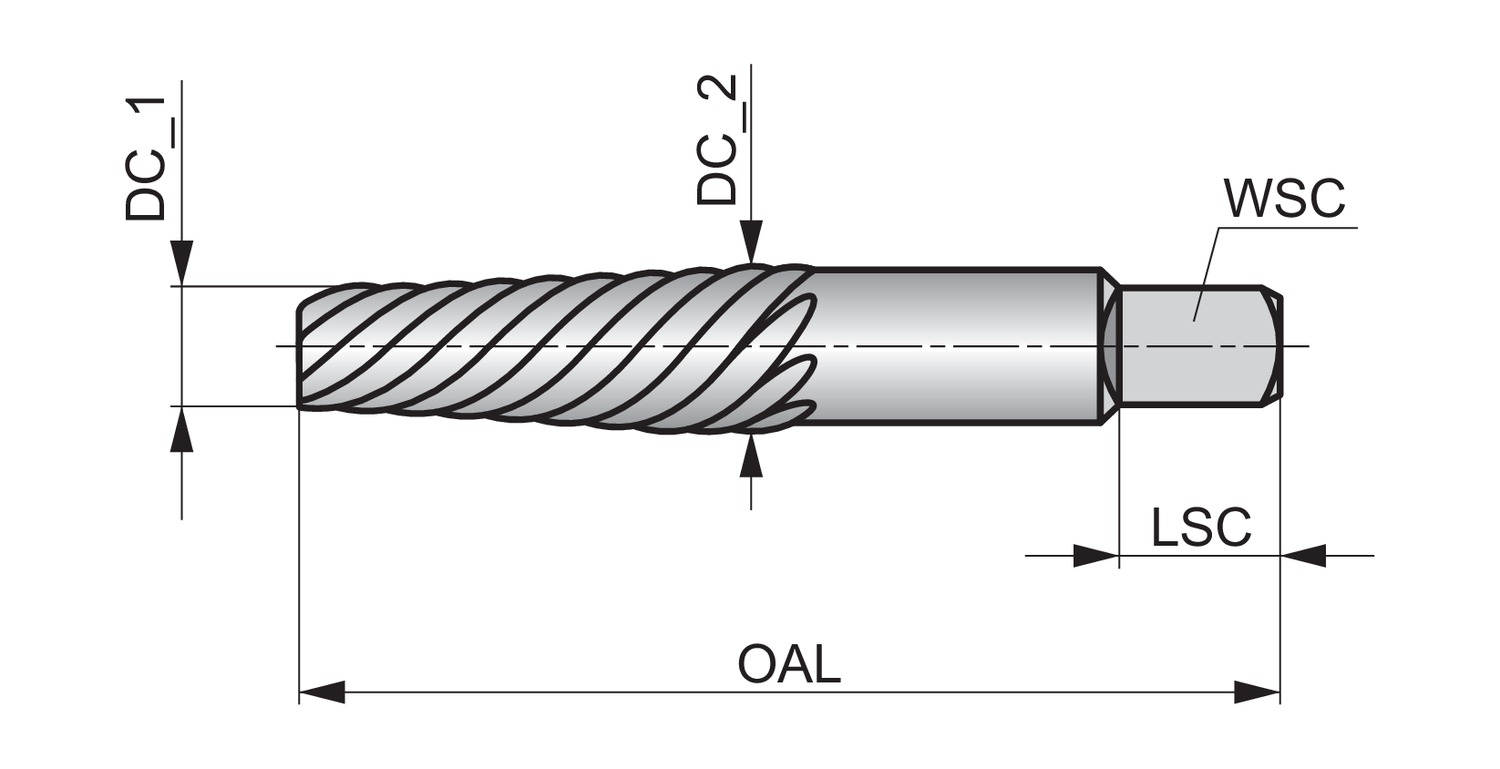

Cutting diameter step – millimeter: 4.37 mm
Cutting diameter second cutting step – millimeters (DC_2): 8 mm
Clamping width – millimeter (WSC): 6 mm
Clamping Length – millimeter (LSC): 8 mm
Overall length – millimeter (OAL): 76.7 mm
Net weight – grams: 24.7
