DORMER M9006 Rotary Burrs

Product Code: M9006

$28.78$26.16 Ex. GST

Product Code: M9006 SKU M9006 Categories CUTTING TOOLS (HSS & Carbide), Drilling

DORMER M9006 Rotary Burrs

DORMER M9006 Rotary Burrs - Image 2

DORMER M9006 Rotary Burrs - Image 3

DORMER M9006 Rotary Burrs - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Screw extractor is used counter-clockwise to remove broken right-handed bolts from threaded holes without damaging threads. It’s necessary to drill guide hole of proper size before using the extractor.

Additional information

Weight	0.1180 kg
Dimensions
barcode	3603607088920

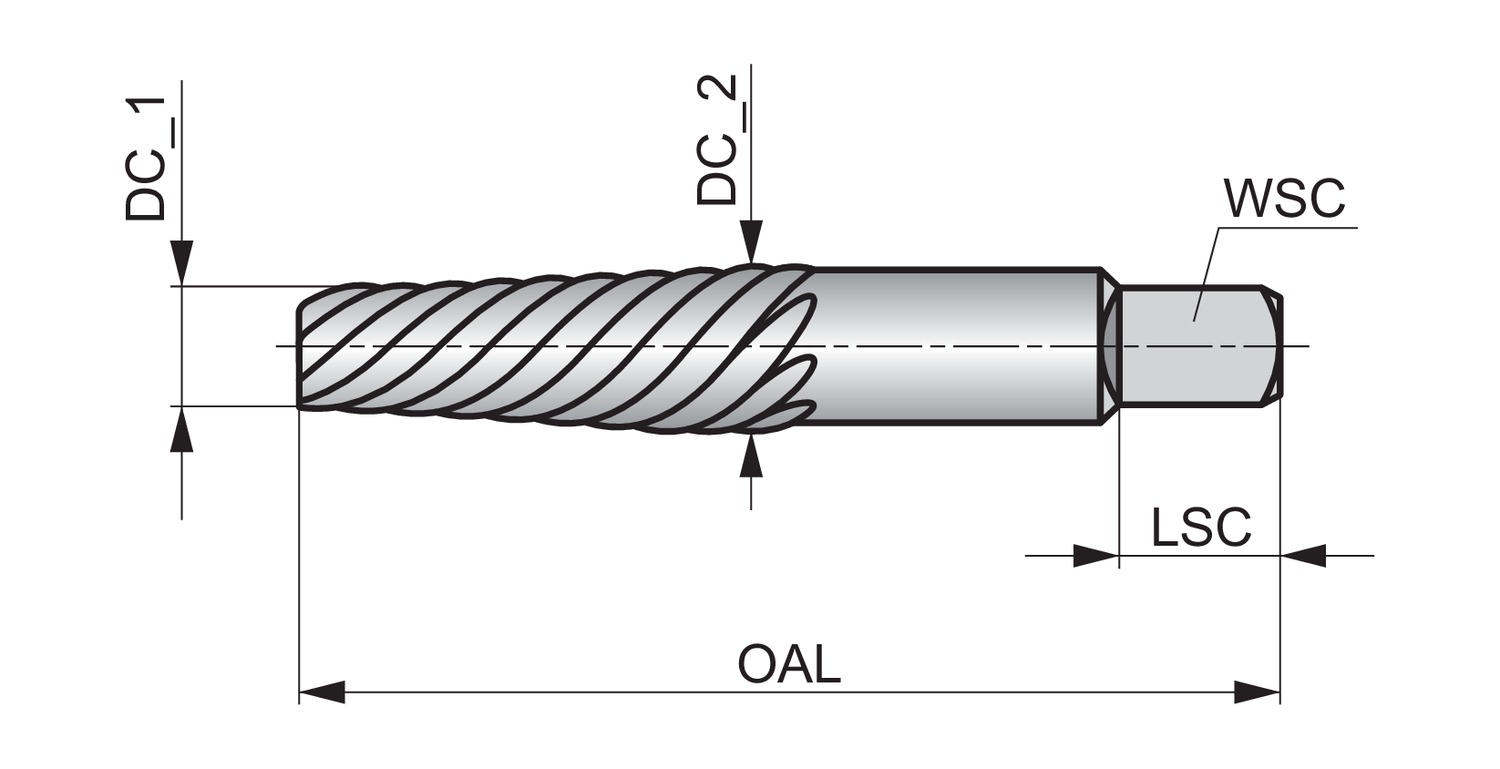

Additional Information	Description: Value Product name: M9006 Bolt size: M20 – M30 Drill size for low or medium tensile screws – millimeters: 10.5 mm Drill size for high tensile screws +75 tons/sq.inch – millimeters: 11 mm Bolt size imperial: 3/4" – 1" Drill size for low or medium tensile screws – inch: 13/32 Drill size for high tensile screws +75 tons/sq.inch – inch: 7/16 Cutting diameter step – millimeter: 9.53 mm Cutting diameter second cutting step – millimeters (DC_2): 15.9 mm Clamping width – millimeter (WSC): 11.9 mm Clamping Length – millimeter (LSC): 13.1 mm Overall length – millimeter (OAL): 94.4 mm Net weight – grams: 118
